Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 6T40/6T50 (MHH, MHK) - Automatic Transmission >> Solenoid Valve Pressure (Gen 1)

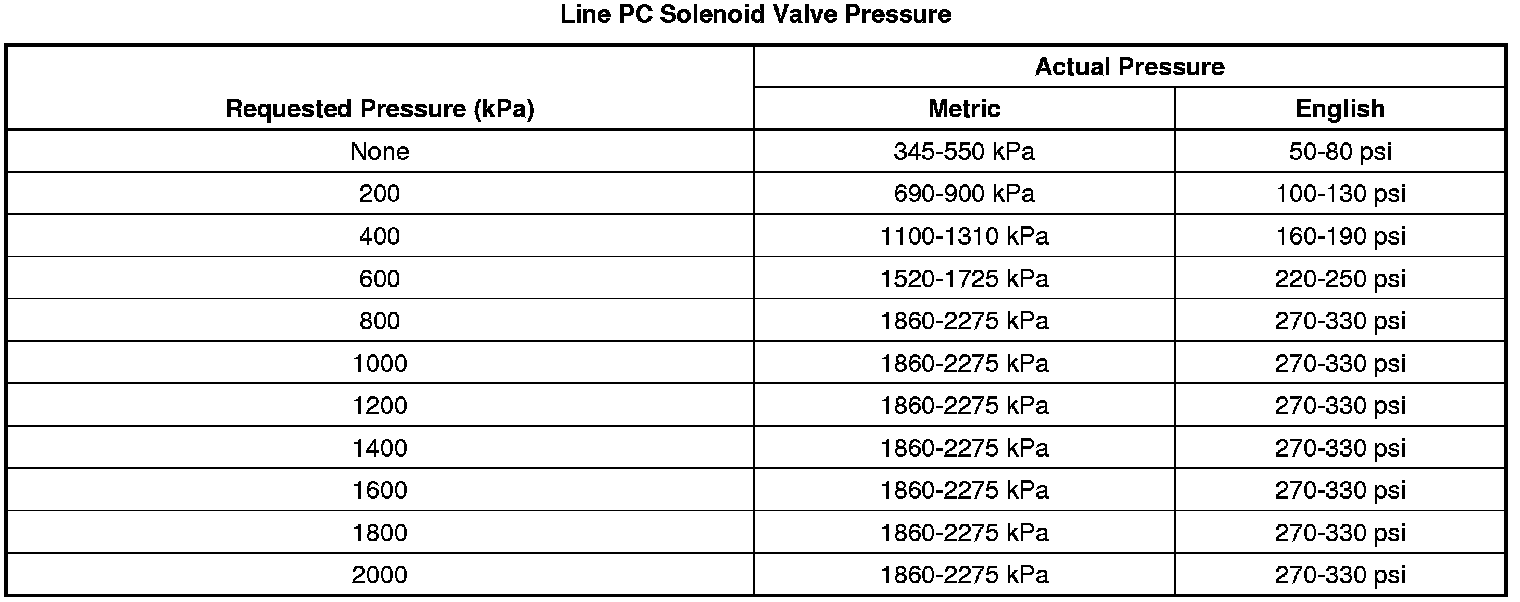

Solenoid Valve Pressure (Gen 1)





Solenoid Valve Pressure (Gen 1)
