Window Switch - Right Rear (except CZ2)





Component Connector End Views

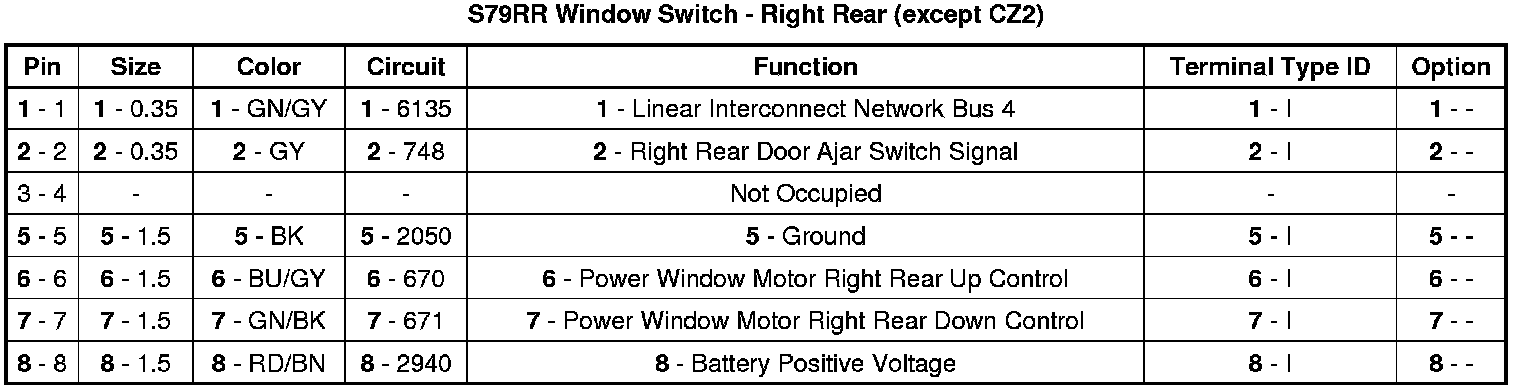

S79RR Window Switch - Right Rear (except CZ2)
