Fuel Pressure Sensor/Switch: Diagrams

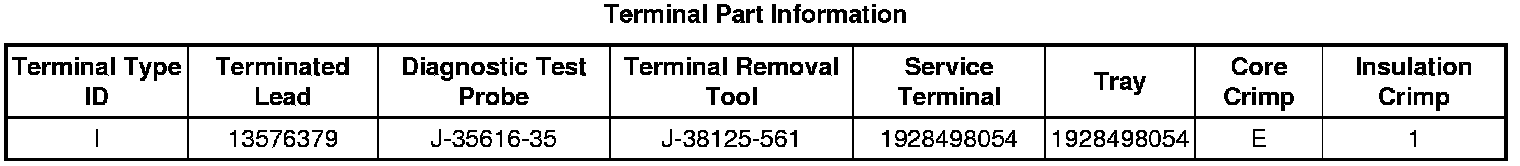

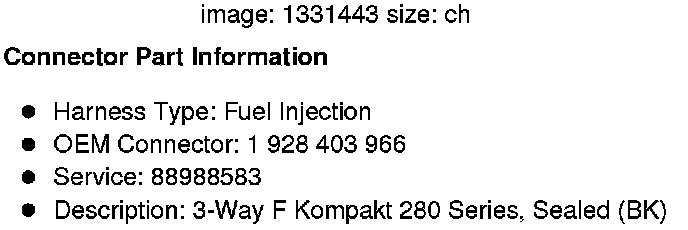

Component Connector End Views

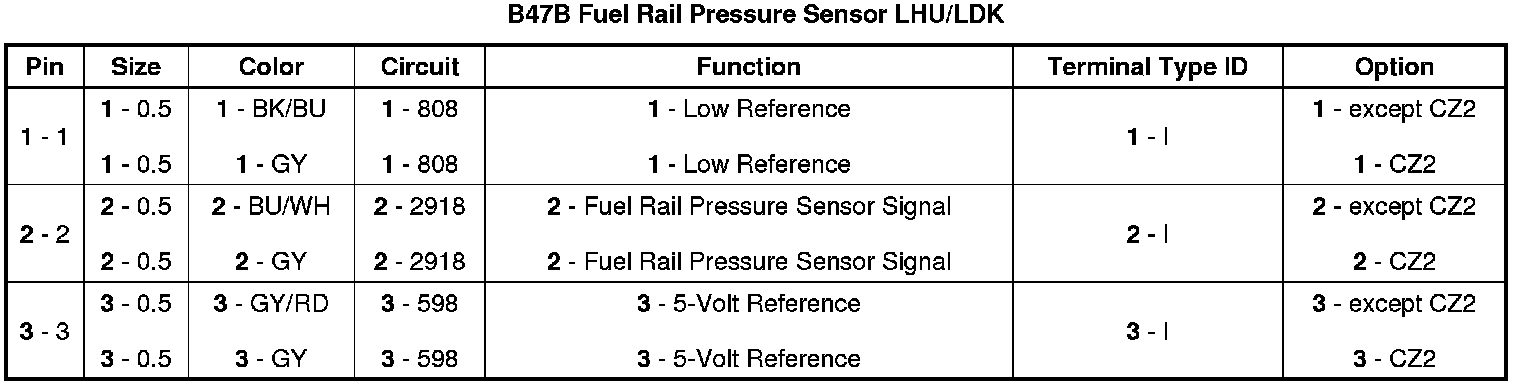

B47B Fuel Rail Pressure Sensor LHU/LDK
