Seat Lumbar Support Switch - Passenger (APH)

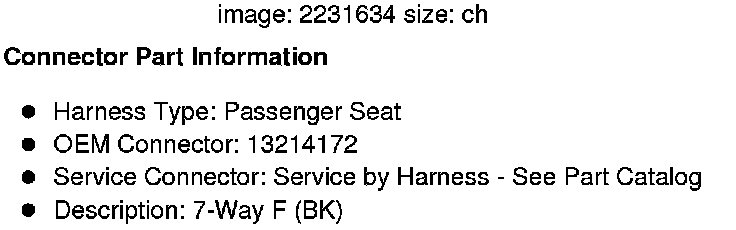

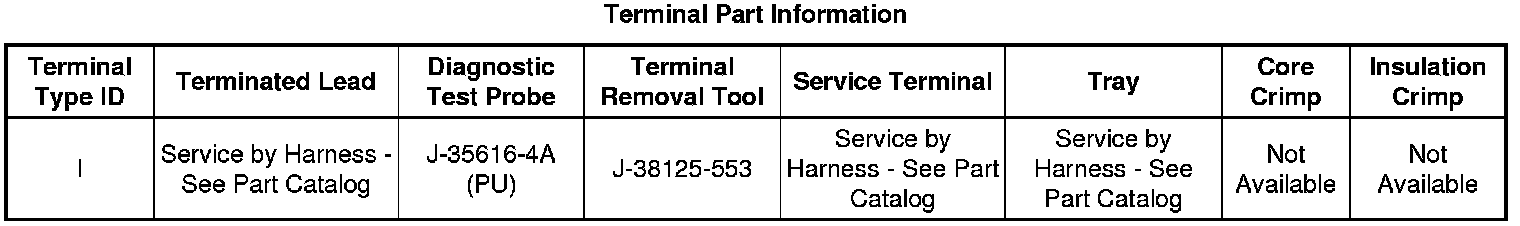

Component Connector End Views

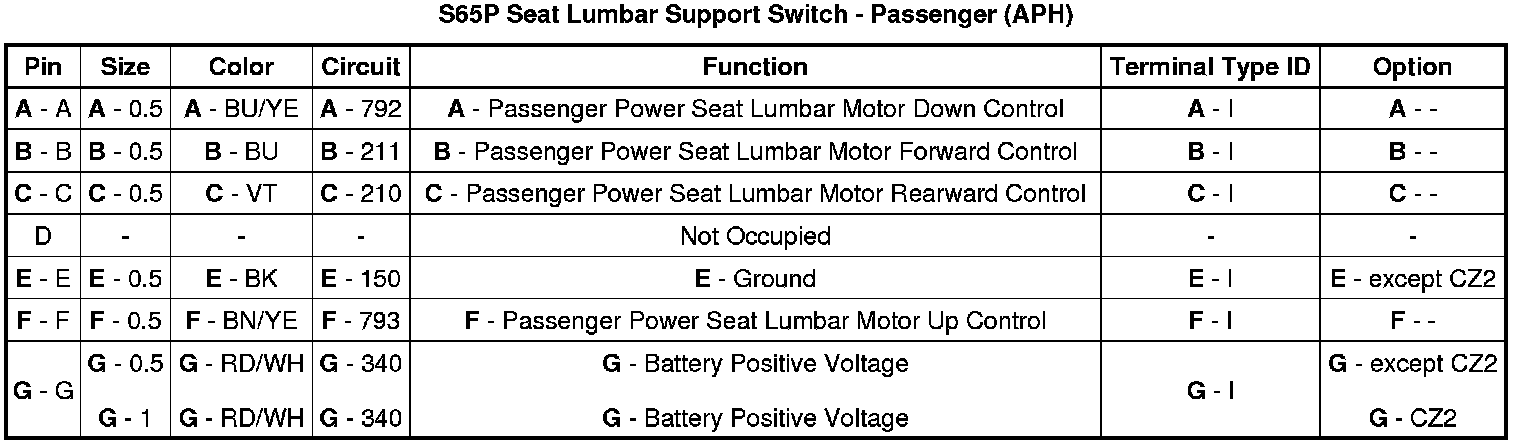

S65P Seat Lumbar Support Switch - Passenger (APH)
