Seat Belt Switch - Right Rear CZ2

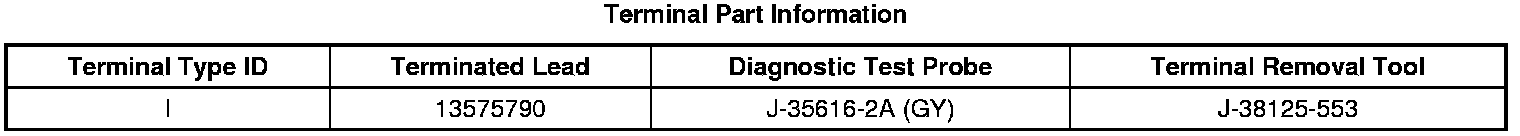

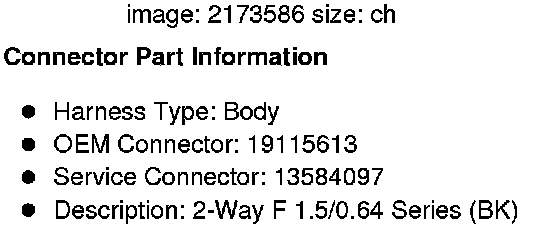

Component Connector End Views

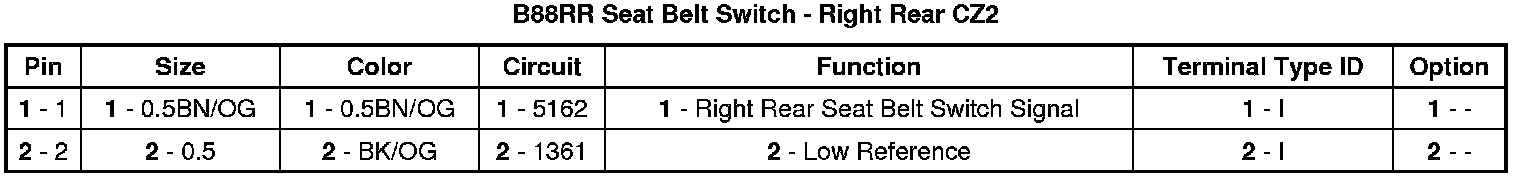

B88RR Seat Belt Switch - Right Rear CZ2
