Fuel Tank Fuel Pump Module Replacement (NT7)

Fuel Tank Fuel Pump Module Replacement (NT7)

Special Tools

J 45722 - Fuel Sender Lock Ring Wrench

For equivalent regional tools, refer to Special Tools (Diagnostic Tools) Special Tools (Diagnostic Tools).

Removal Procedure





Warning: Refer to Gasoline/Gasoline Vapors Warning Service Precautions.


1. Remove the fuel tank. Refer to Fuel Tank Replacement Fuel Tank Replacement.

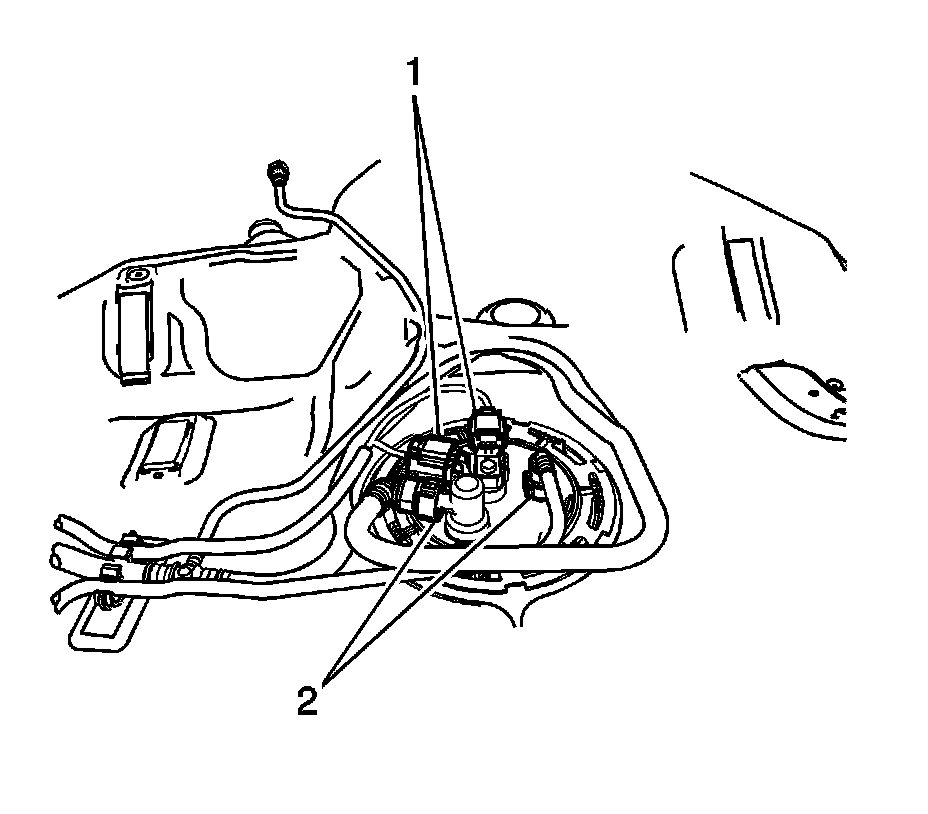

2. Disconnect the fuel pump electrical connector and the fuel tank pressure sensor electrical connector (1) and the quick connects (2). Refer to Plastic Collar Quick Connect Fitting Service Procedures.

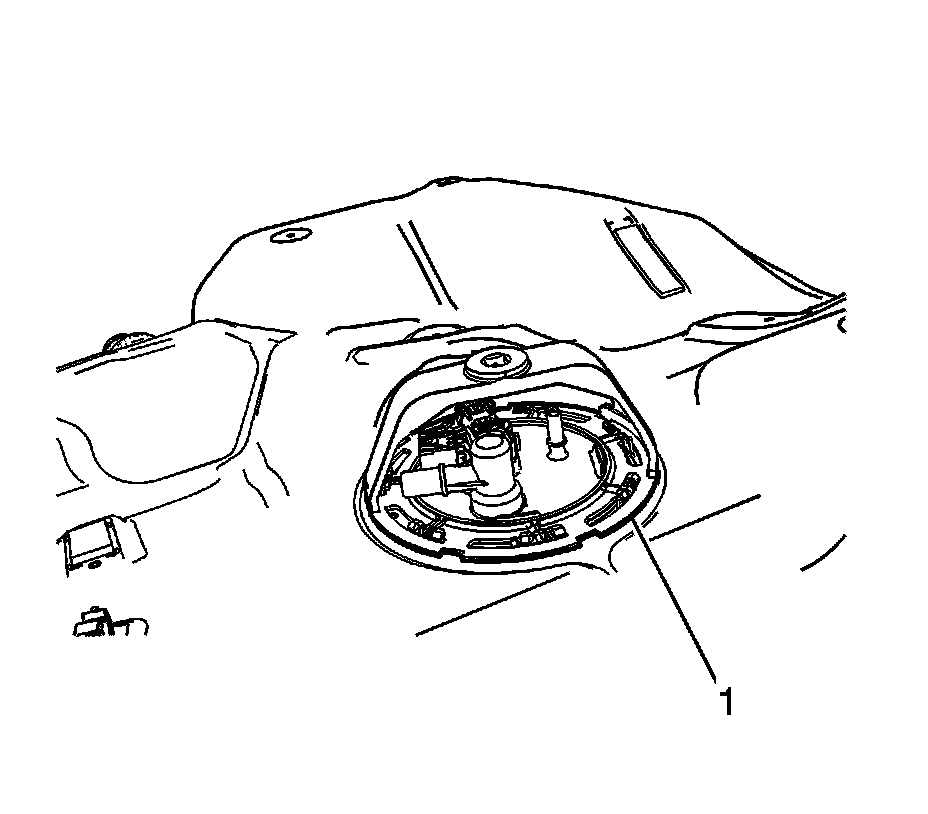

3. Use the J 45722 - fuel sender lock ring wrench and remove the lock ring (1).

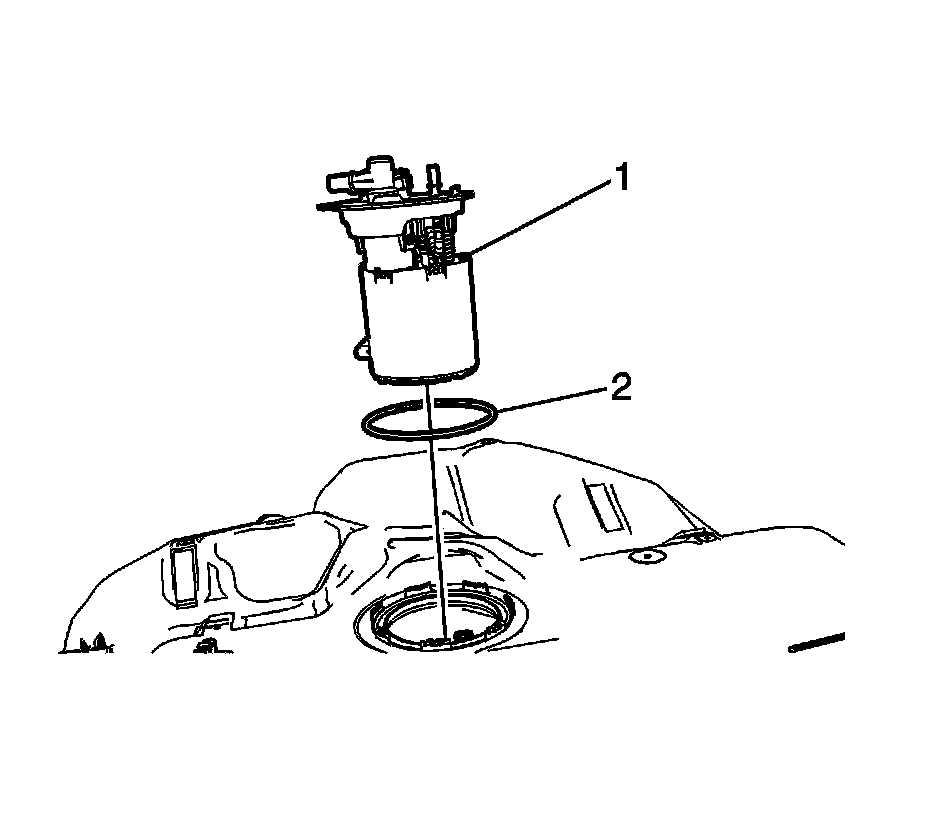

4. Remove the fuel tank module (1) and the O-ring (2).

Installation Procedure




1. Install a NEW seal (2) and the fuel tank module (1).




2. Use the J 45722 - fuel sender lock ring wrench and install the lock ring (1).




3. Connect the fuel pump electrical connector and the fuel tank pressure sensor electrical connector (1) and the quick connects (2). Refer to Plastic Collar Quick Connect Fitting Service Procedures.

4. Install the fuel tank. Refer to Fuel Tank Replacement Fuel Tank Replacement.
