Secondary Air Injection Solenoid Valve - Cylinder 3/4 NU6
Secondary Air Injection Solenoid Valve - Cylinder 3/4 NU6

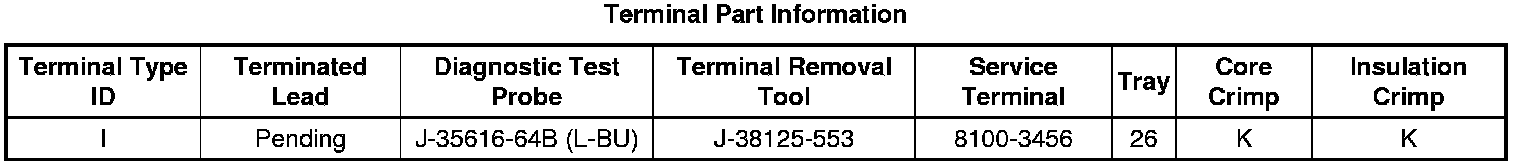

Component Connector End Views

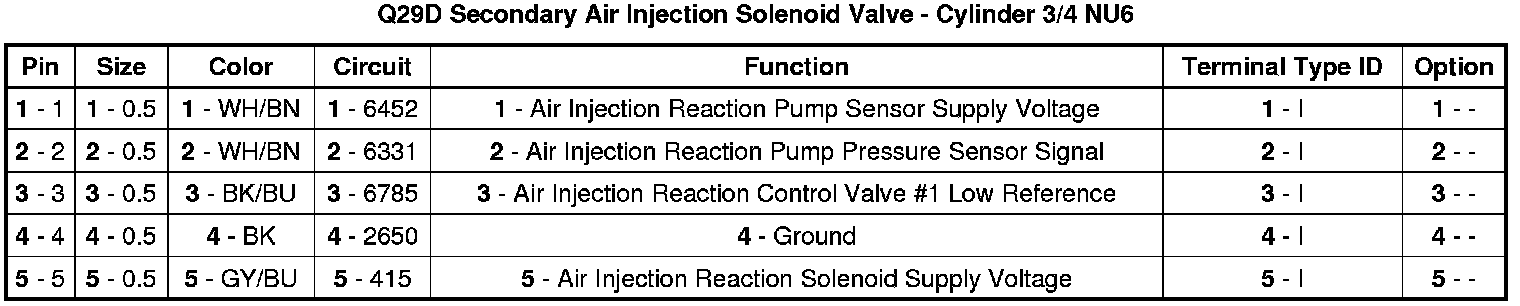

Q29D Secondary Air Injection Solenoid Valve - Cylinder 3/4 NU6
