Secondary Air Injection Solenoid Valve - Cylinder 1/2 NU6

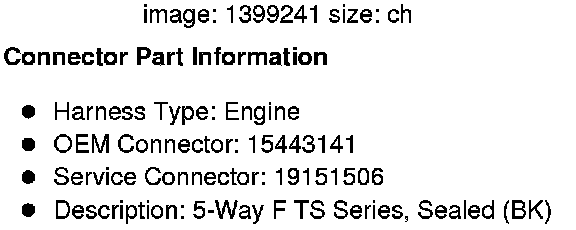

Component Connector End Views

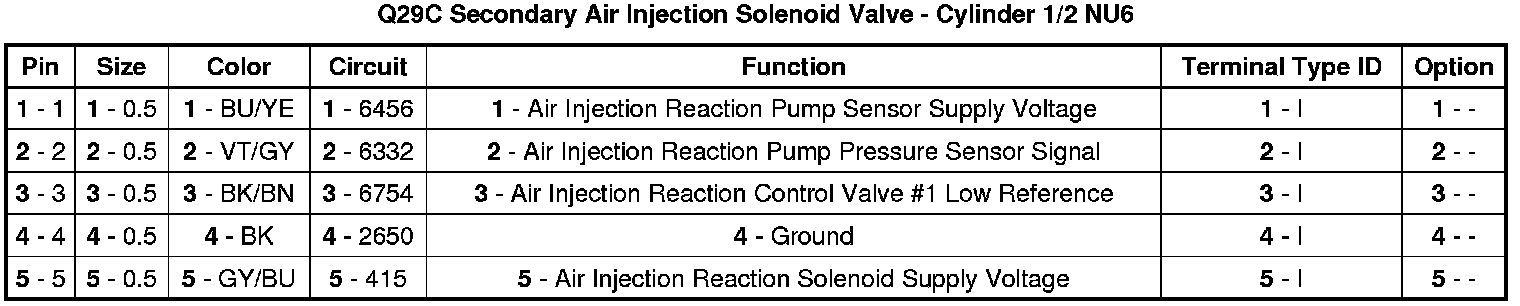

Q29C Secondary Air Injection Solenoid Valve - Cylinder 1/2 NU6
