Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Stop/Turn Signal Lamp - Right

Stop/Turn Signal Lamp - Right

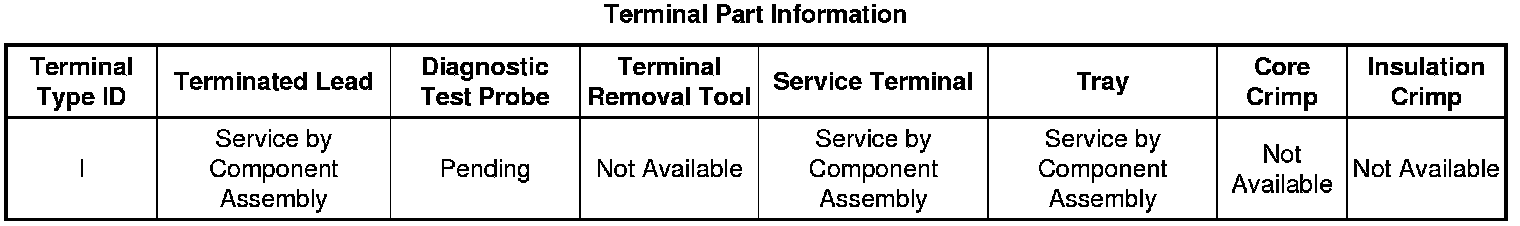

Component Connector End Views

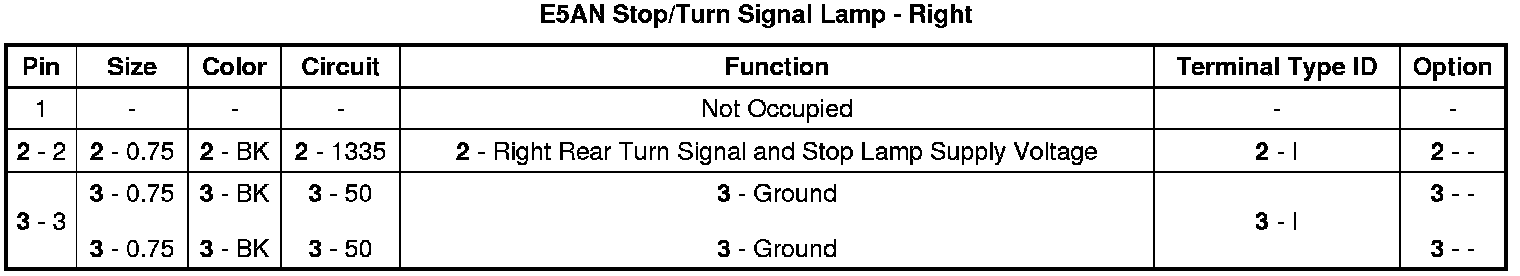

E5AN Stop/Turn Signal Lamp - Right
