Interior Accent Lighting Malfunction

Interior Accent Lighting Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

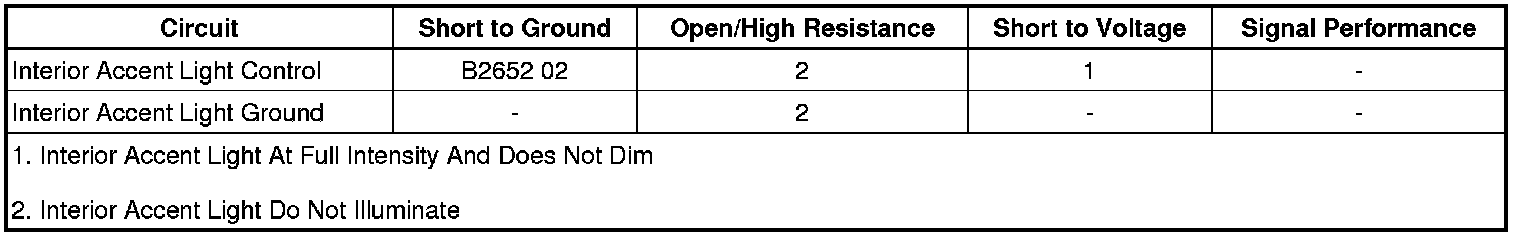

Diagnostic Fault Information






Circuit/System Description

The body control module (BCM) supplies battery voltage to front door flood lamps via the flood lamp control circuit. When a door is opened the BCM applies battery voltage to the flood lamp control circuit illuminating the driver and passenger door pocket flood lamps. The flood lamps will remain illuminated until all doors are closed and the ignition is OFF.

Reference Information

Schematic Reference

Interior Lights Schematics Interior Lights Schematics

Connector End View Reference

Component Connector End Views Sunshade - Left

Description and Operation

Interior Lighting Systems Description and Operation Interior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the appropriate E55 flood lamp. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 15 ohms between the ground circuit terminal 2 and ground.

• If 15 ohms or greater

1. Ignition OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 15 ohms

3. Connect a test lamp between the control circuit terminal 1 and ground.

4. Verify the test lamp turns ON and OFF when commanding the Accent Lighting ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X1 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON

1. Ignition OFF, disconnect the X1 harness connector at the K9 body control module, ignition ON.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 body control module.

• If the test lamp turns ON and OFF

5. Test or replace the appropriate E55 flood lamp.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Front Side Door Sill Courtesy Lamp Replacement Front Side Door Sill Courtesy Lamp Replacement

* Control Module References Control Module References for BCM replacement, programming, and setup
