Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Fog Lamp - Left Front T3U except CZ2

Fog Lamp - Left Front T3U except CZ2

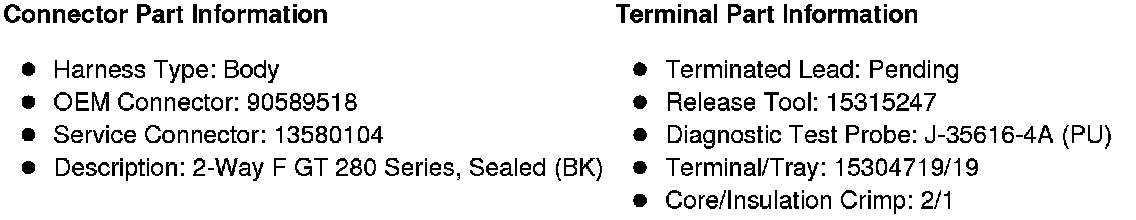

Component Connector End Views

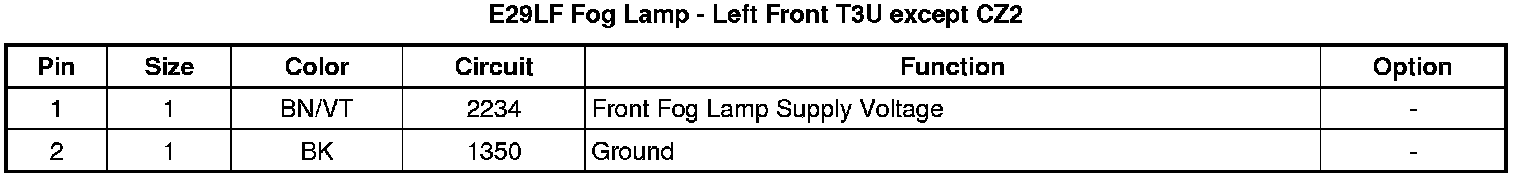

E29LF Fog Lamp - Left Front T3U except CZ2
