Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> A/C Diagnostics Chart

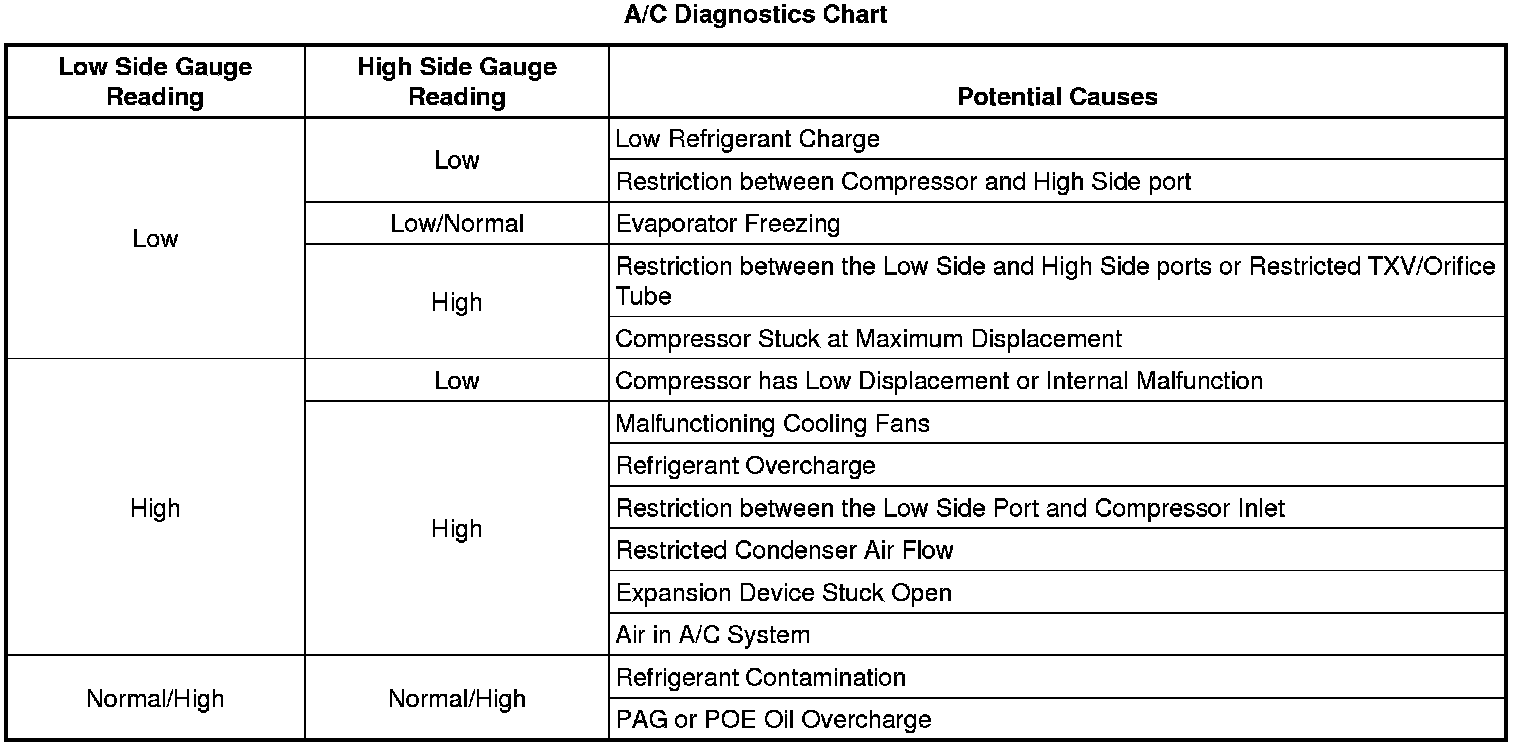

A/C Diagnostics Chart

A/C Diagnostics Chart
