Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Control Valve Assembly >> Diagrams

Compressor Control Valve Assembly: Diagrams

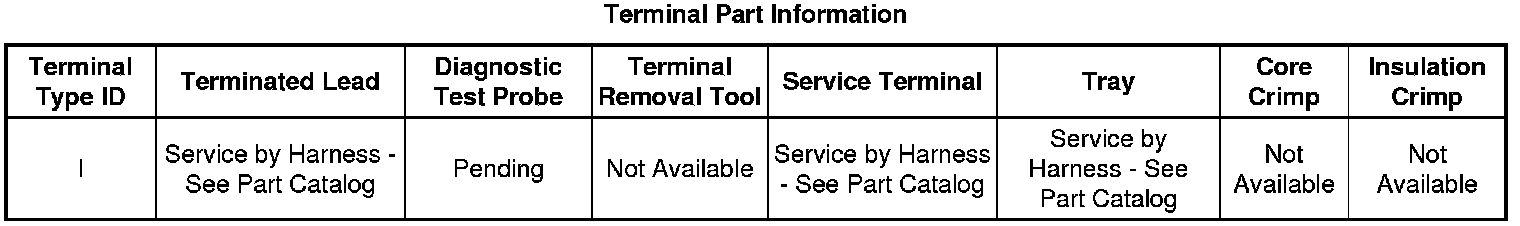

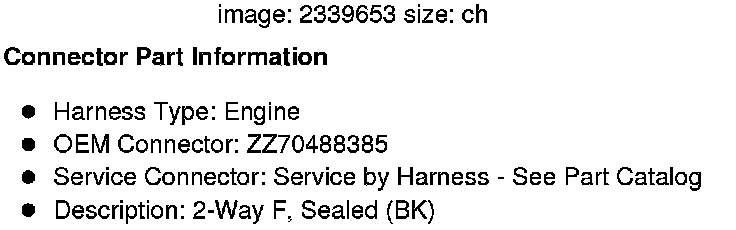

Component Connector End Views

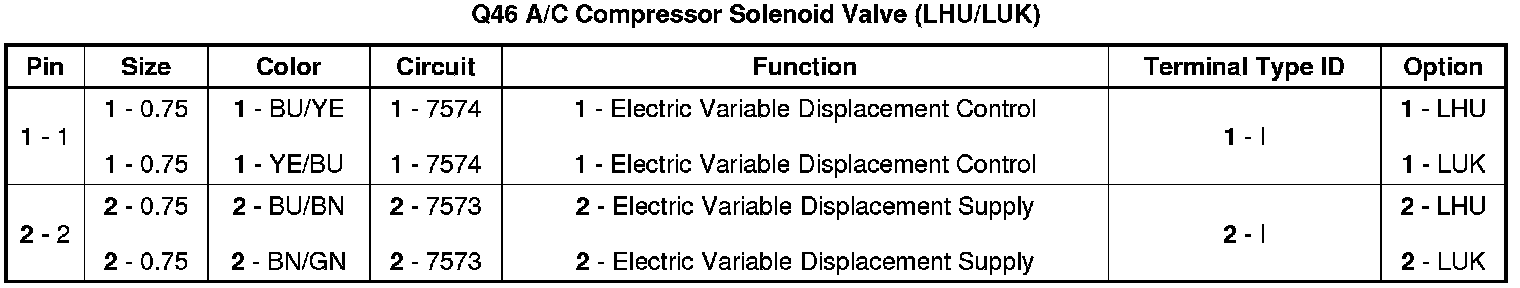

Q46 A/C Compressor Solenoid Valve (LHU/LUK)
