System Diagram





Power Steering Schematics

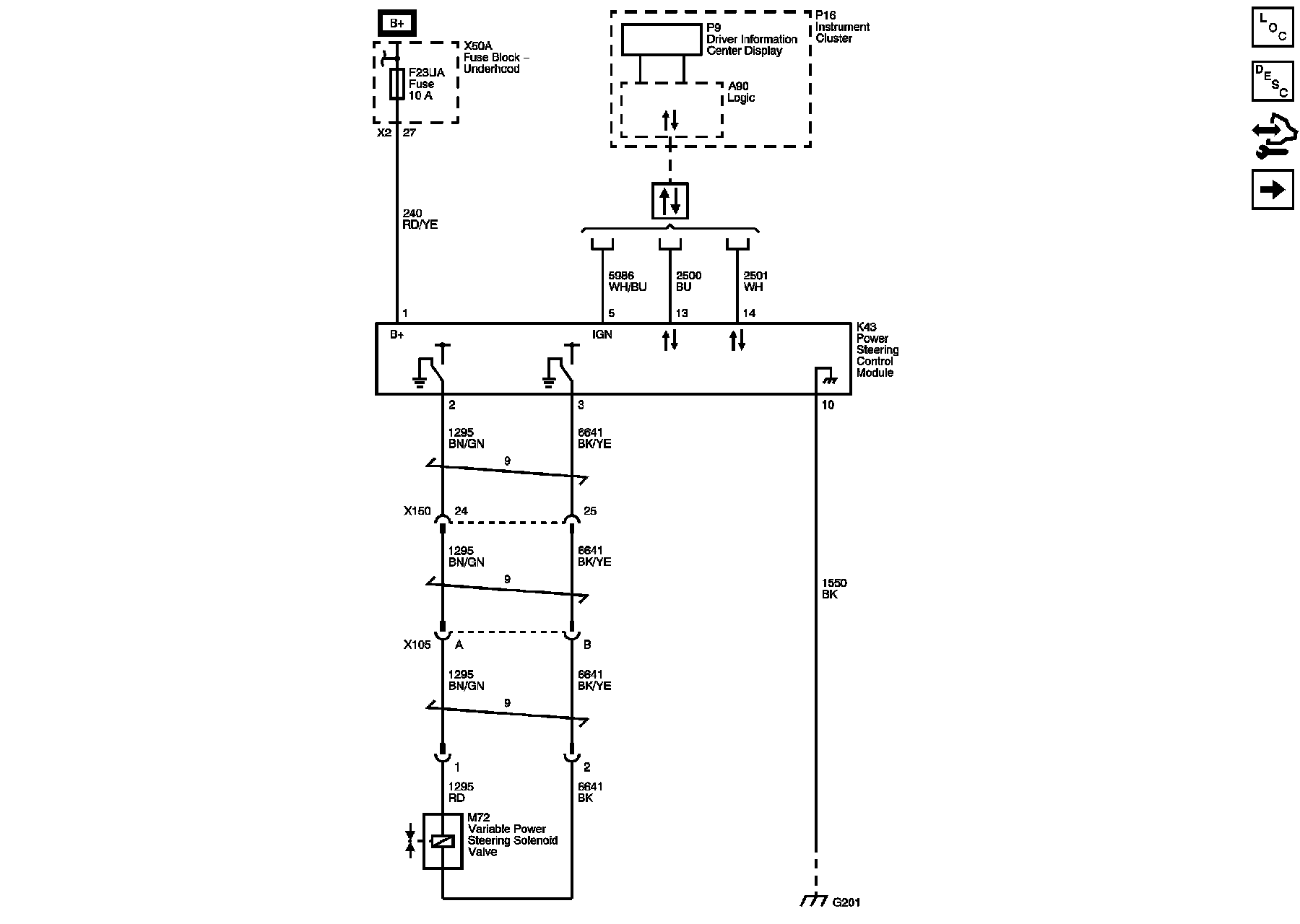

Variable Assist (NV7 or NXC)

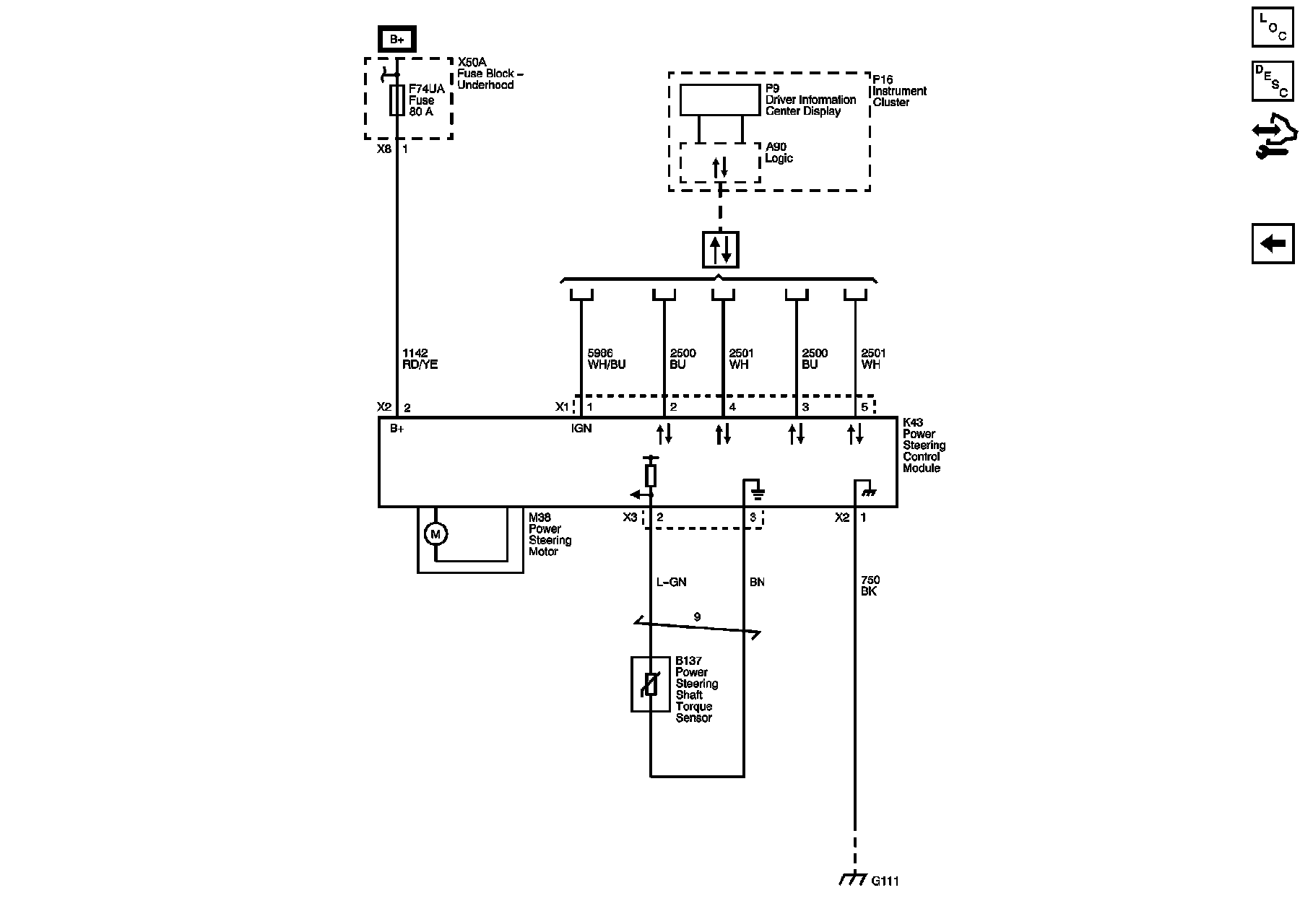

Electric Power Steering (NJ1)
