Power Moding Schematics





Power Moding Schematics

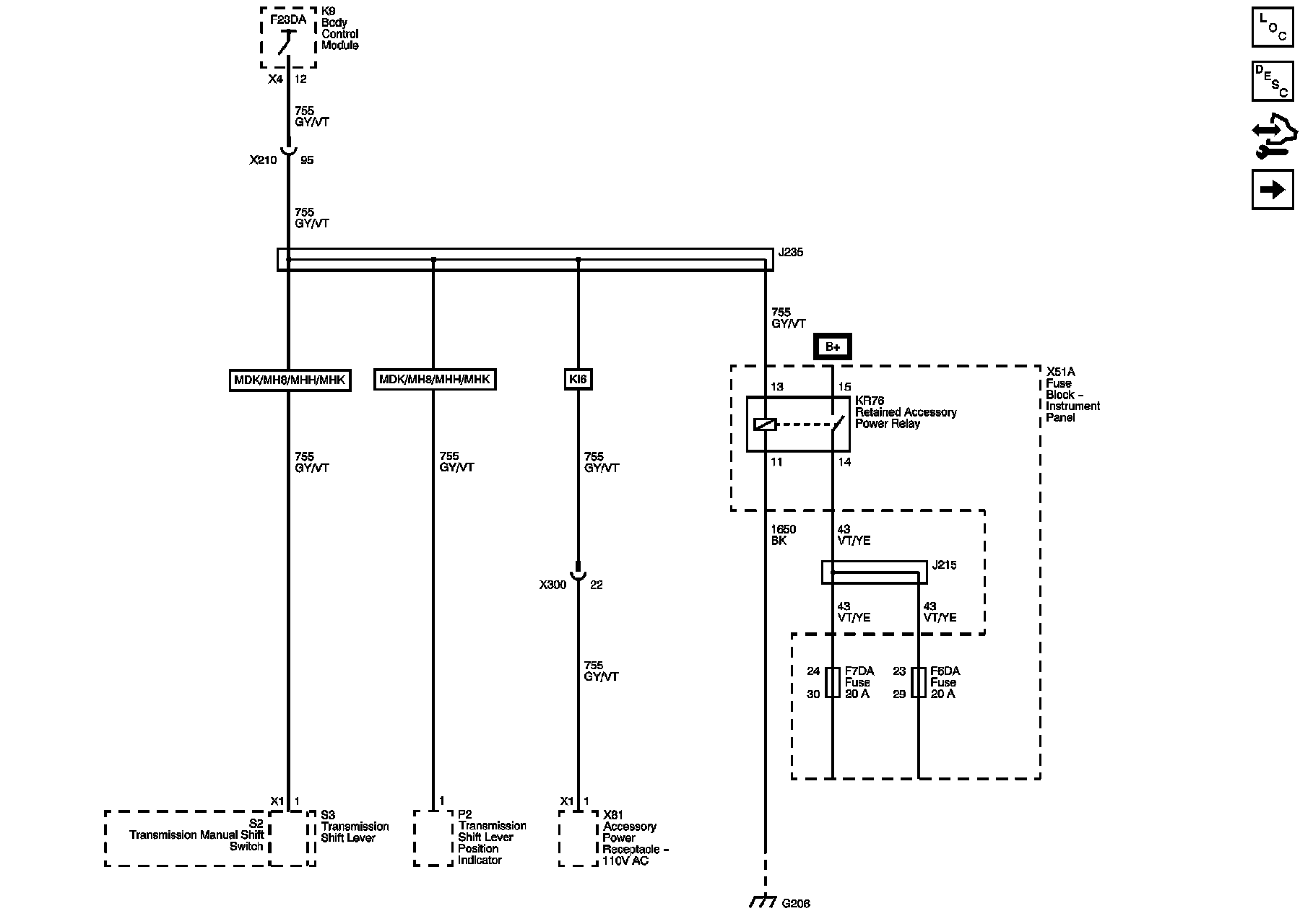

Accessory Power and KR76 Retained Accessory Power Relay (except CZ2)





KR73 Ignition Main Relay (except CZ2)

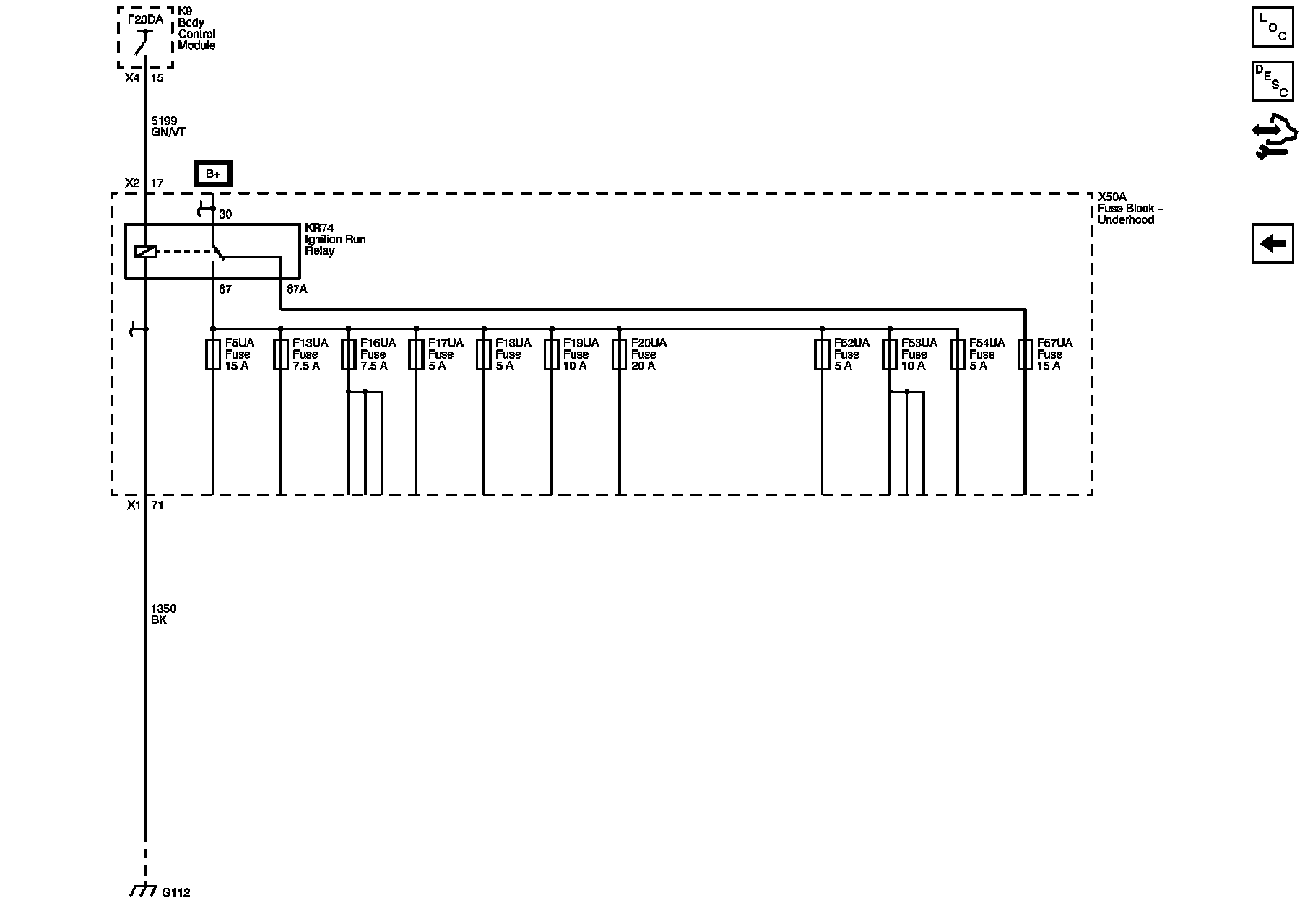

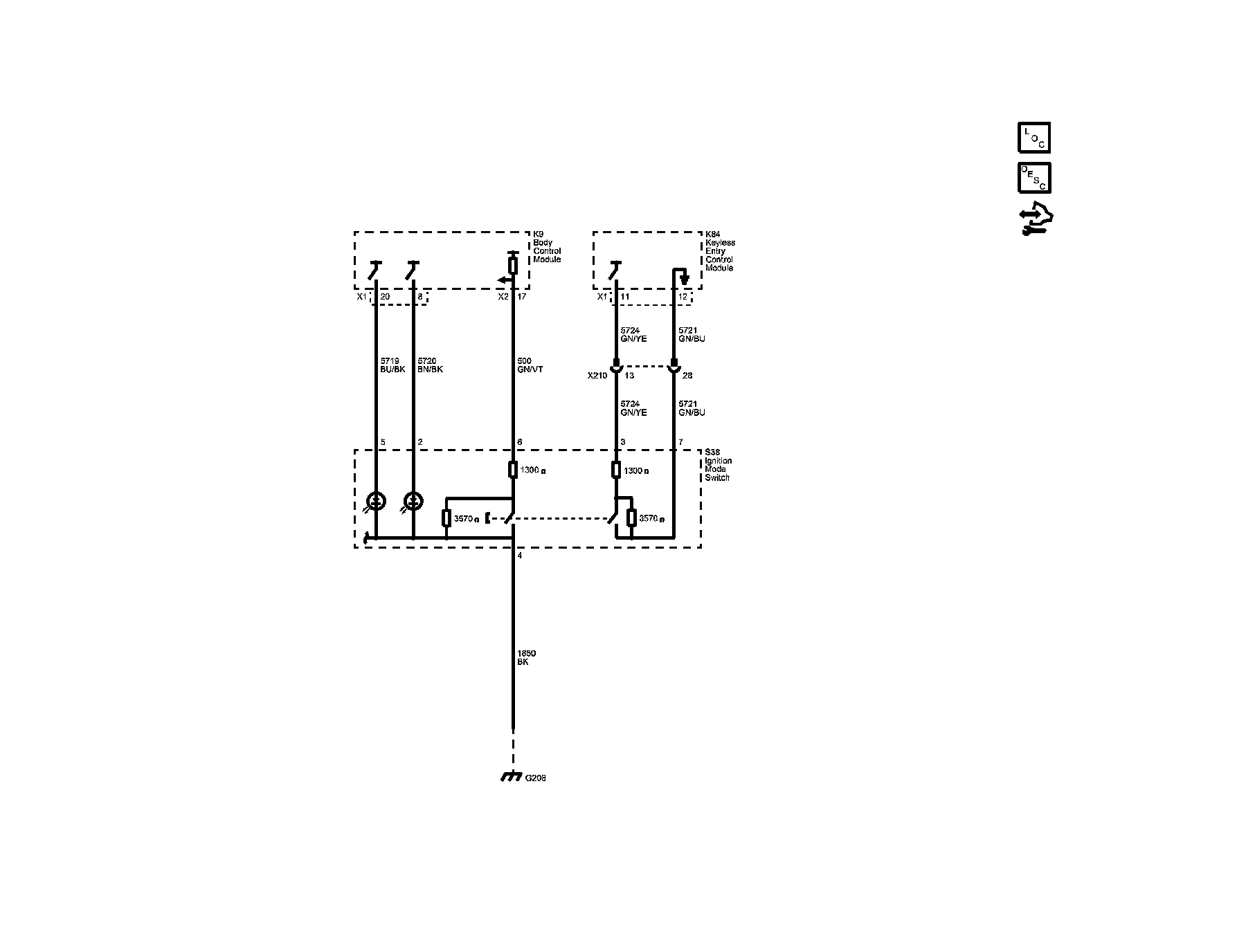

Ignition Mode Switch (BTM) (CZ2)
