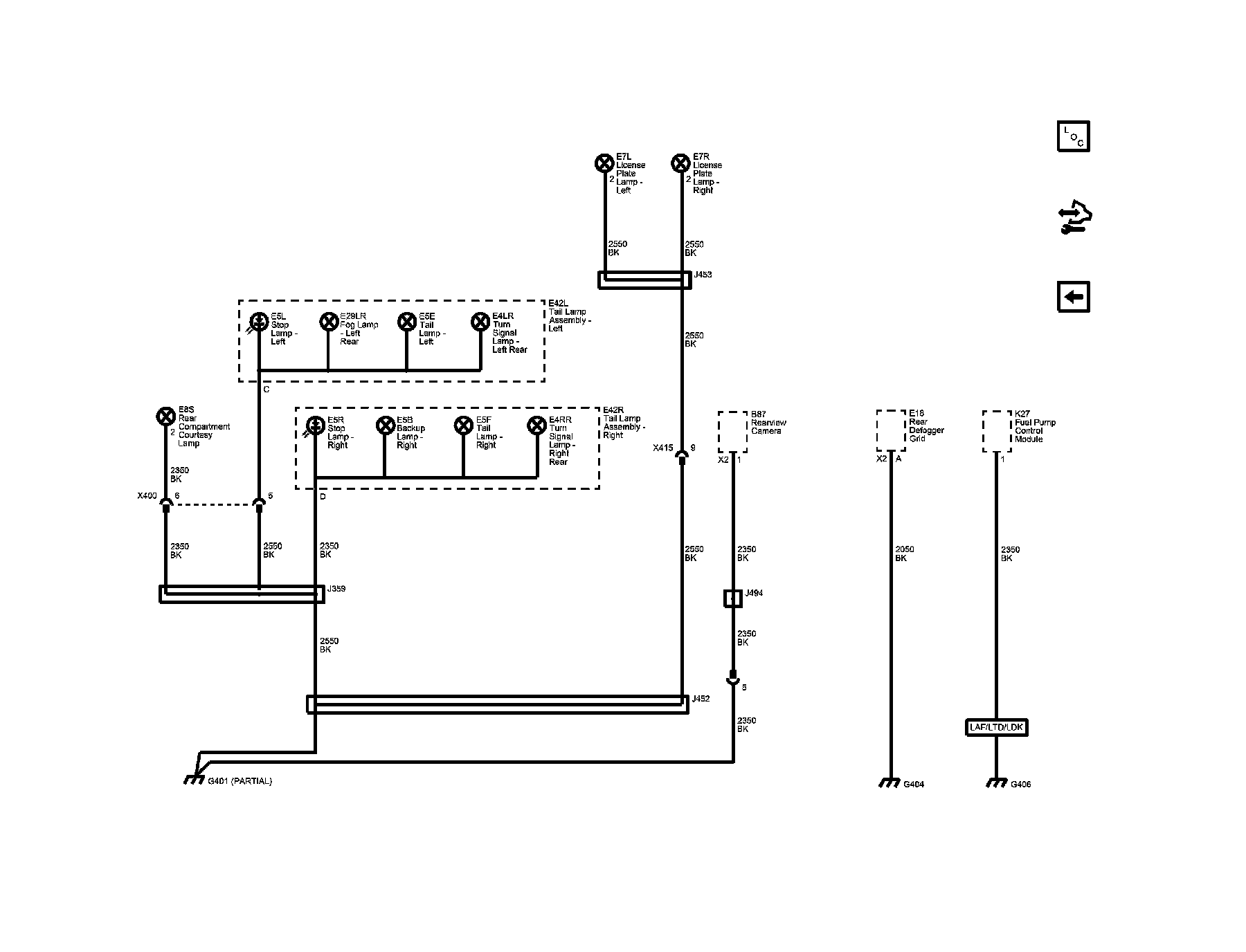

G401 (2 of 2), G404, and G406 CZ2





Ground Distribution Schematics

G401 (2 of 2), G404, and G406 CZ2
