Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G401 >> G401 (1 of 2) CZ2

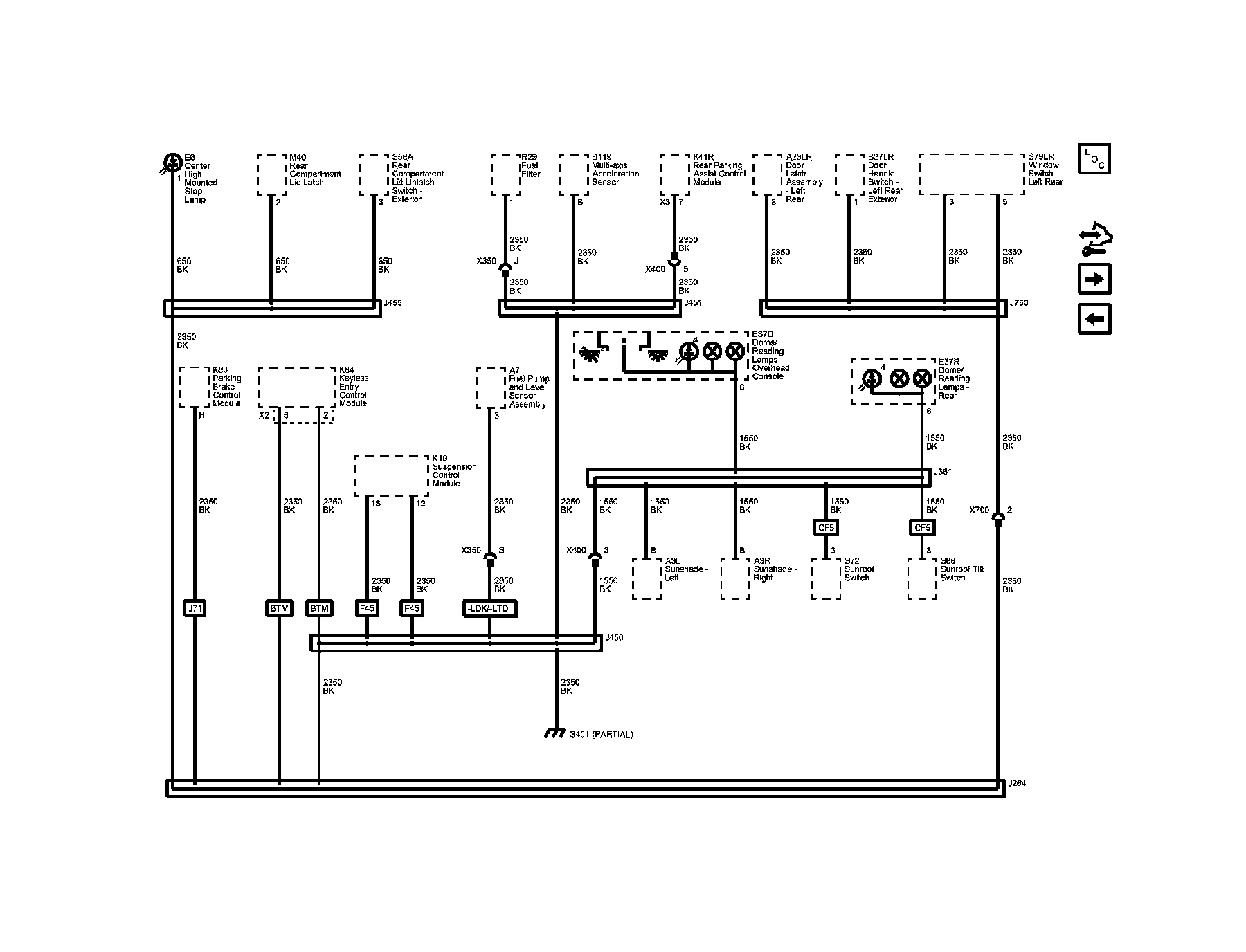

G401 (1 of 2) CZ2





Ground Distribution Schematics

G401 (1 of 2) CZ2
