G206

Ground Distribution Schematics

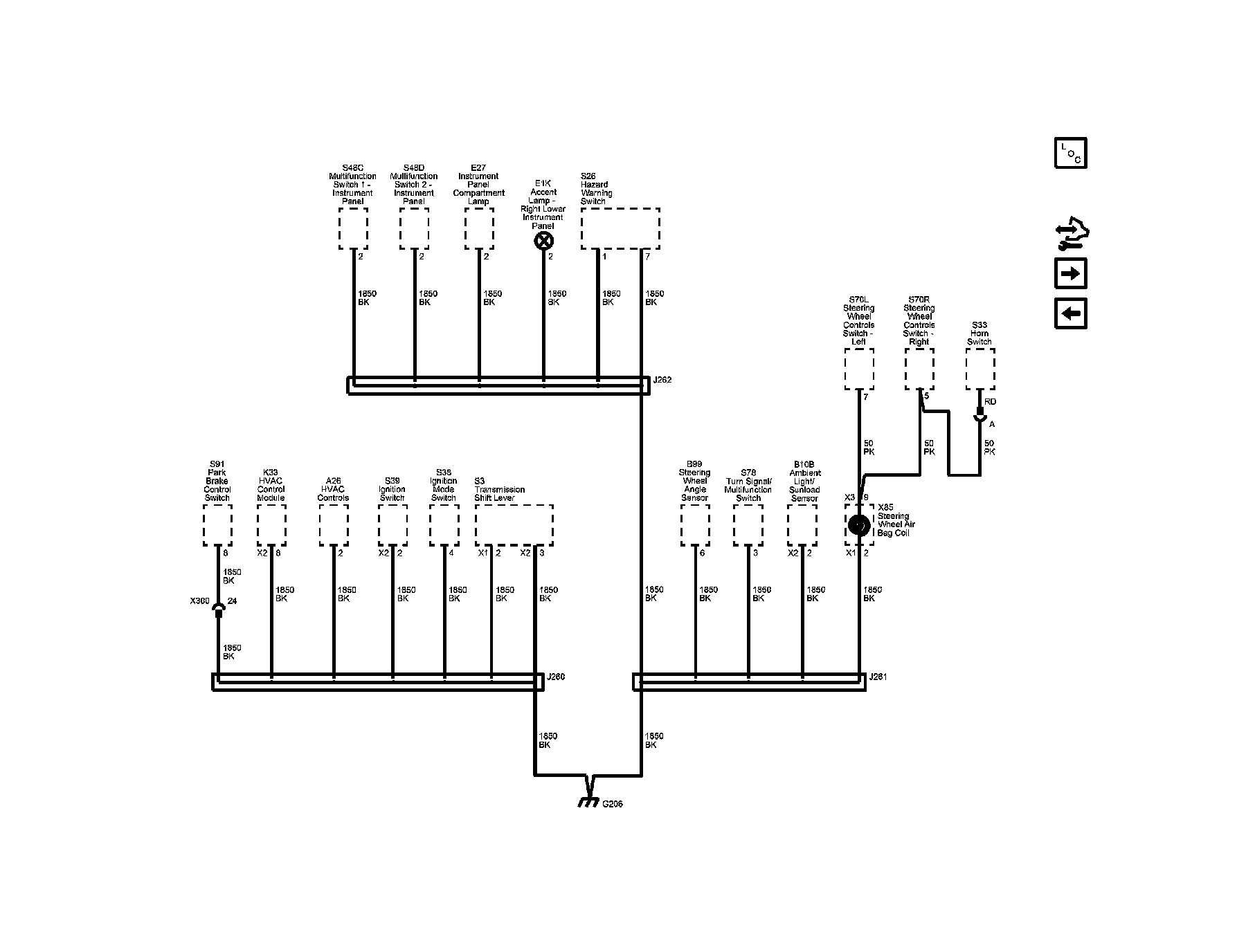

G206 (1 of 2) except CZ2

Ground Distribution Schematics

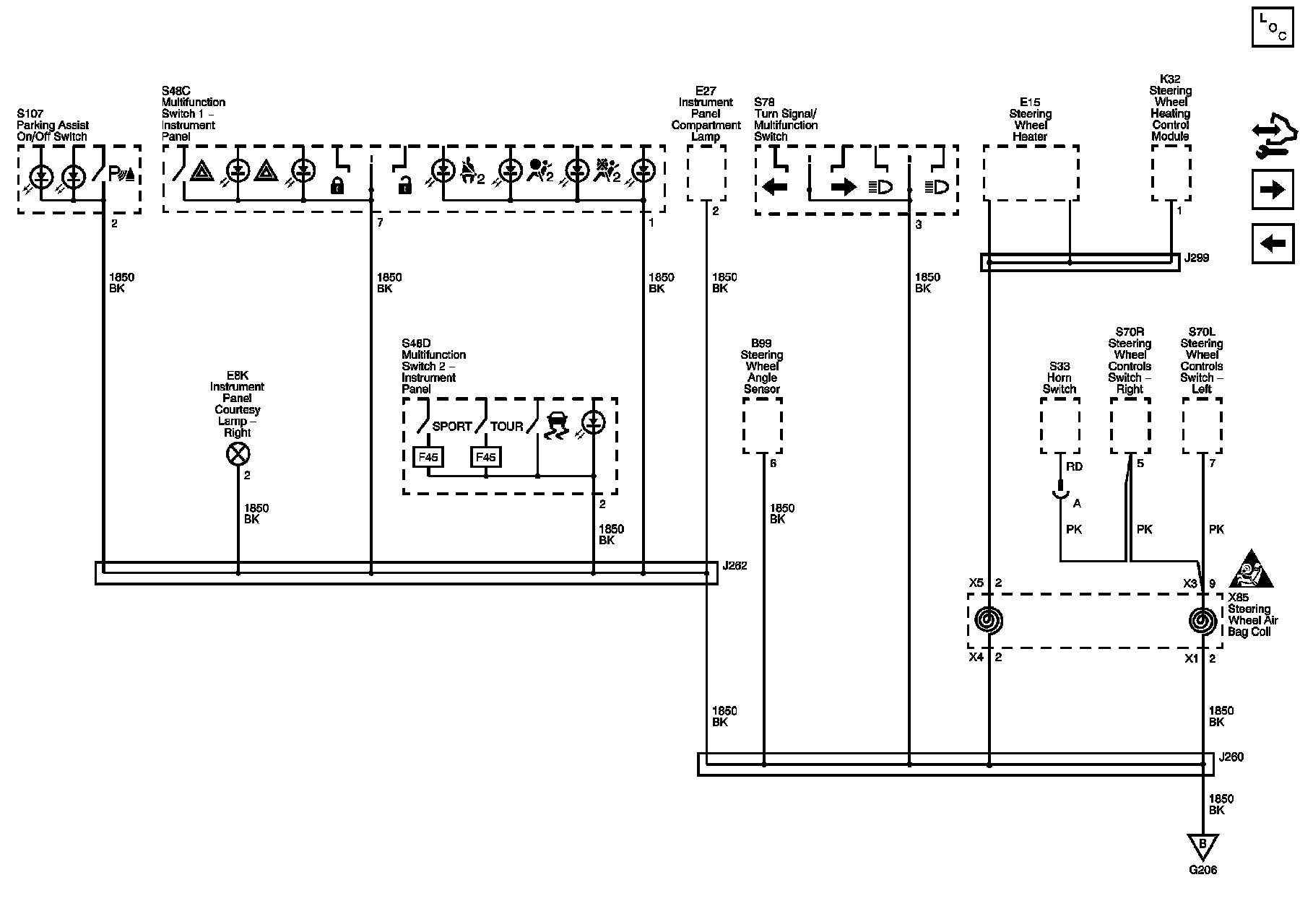

G206 (2 of 2) except CZ2

Ground Distribution Schematics

G206 CZ2
