Driver Seat Schematics





Driver Seat Schematics

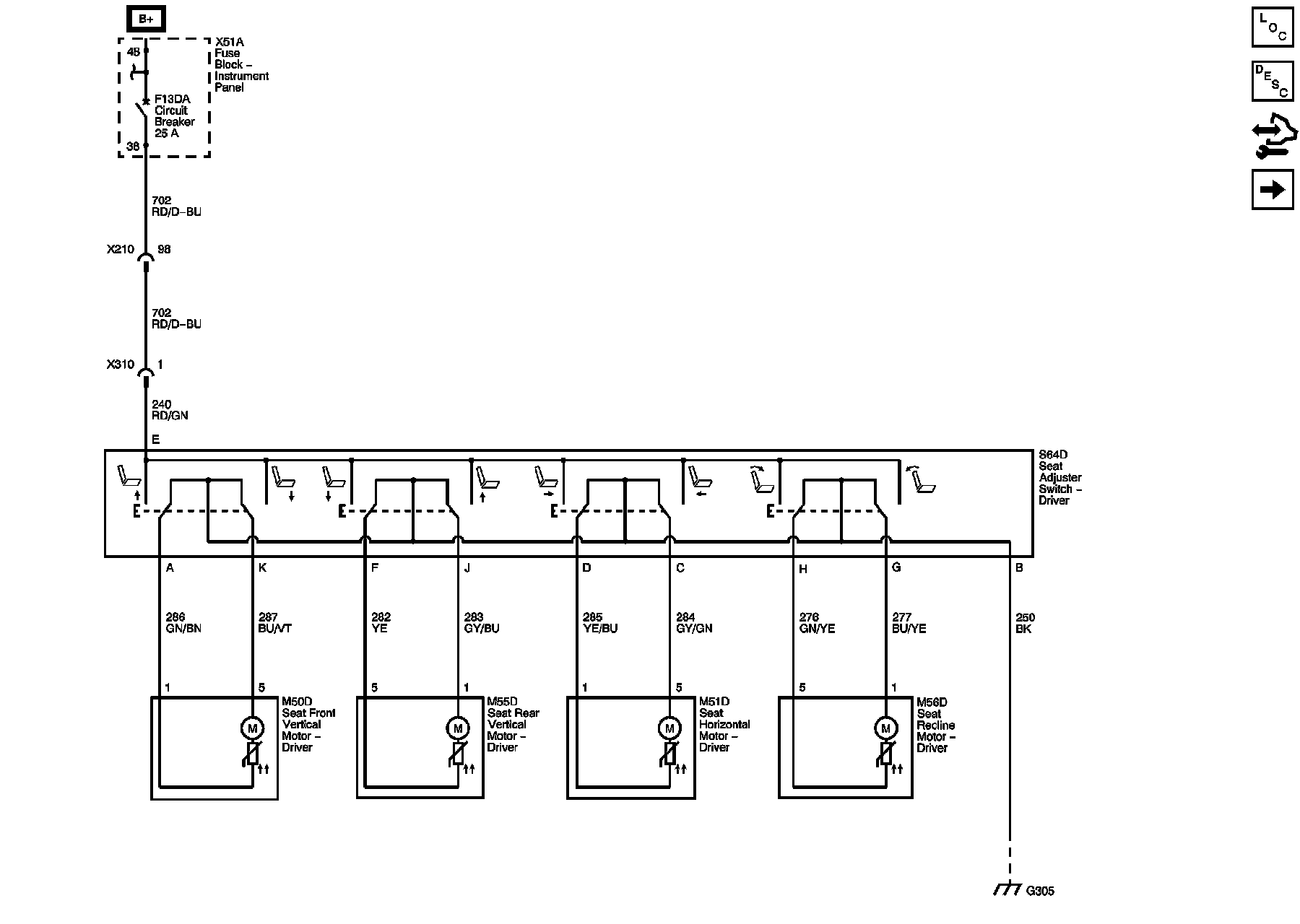

Seat Adjuster Switch and Position Motor (except A45)

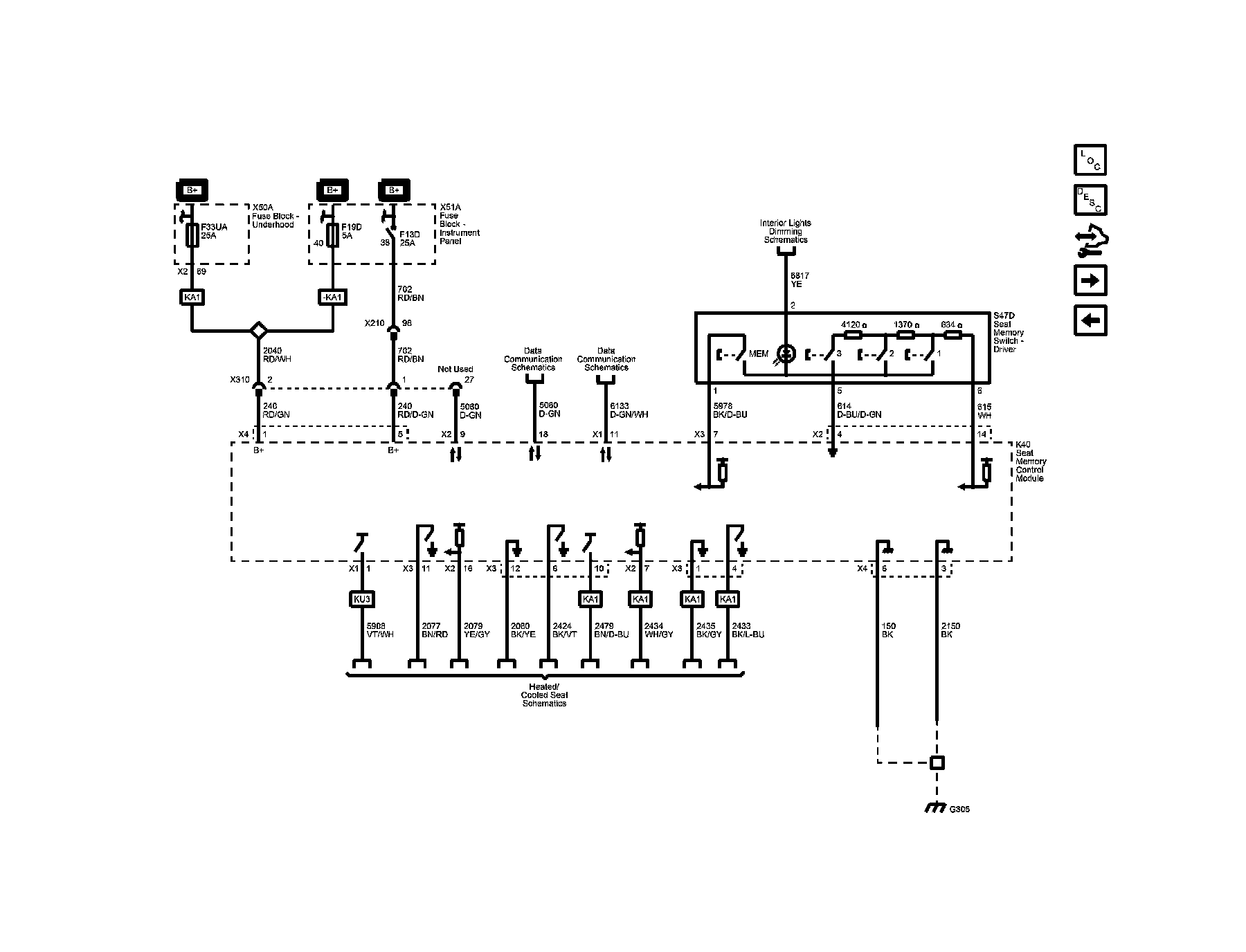

Module Power, Ground, Serial Data, and Memory Seat Switch (A45)

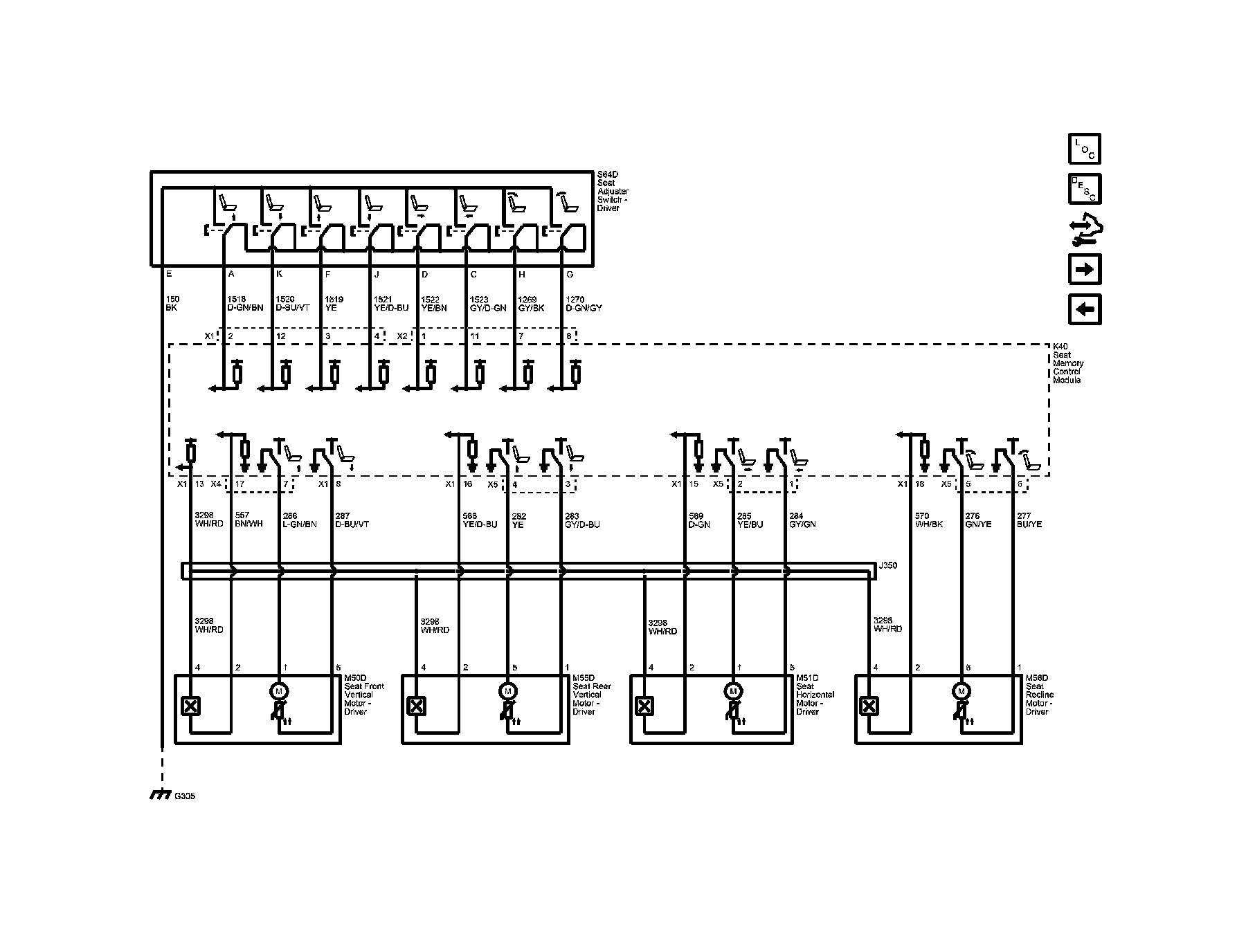

Seat Adjuster Switch and Position Motors (A45/CZ2)

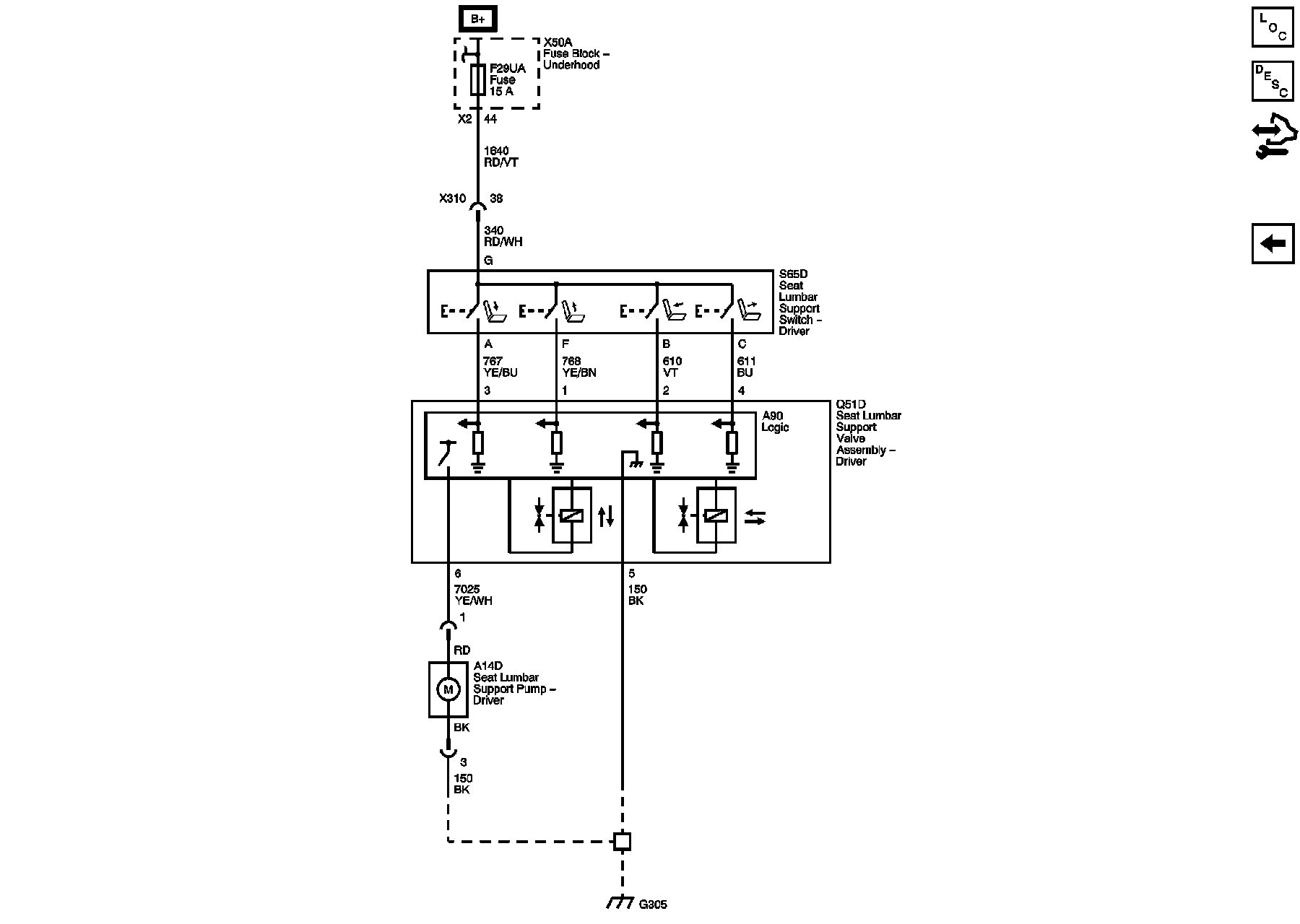

Lumbar Support System (APG)
