Door Lock/Indicator Schematics





Door Lock/Indicator Schematics

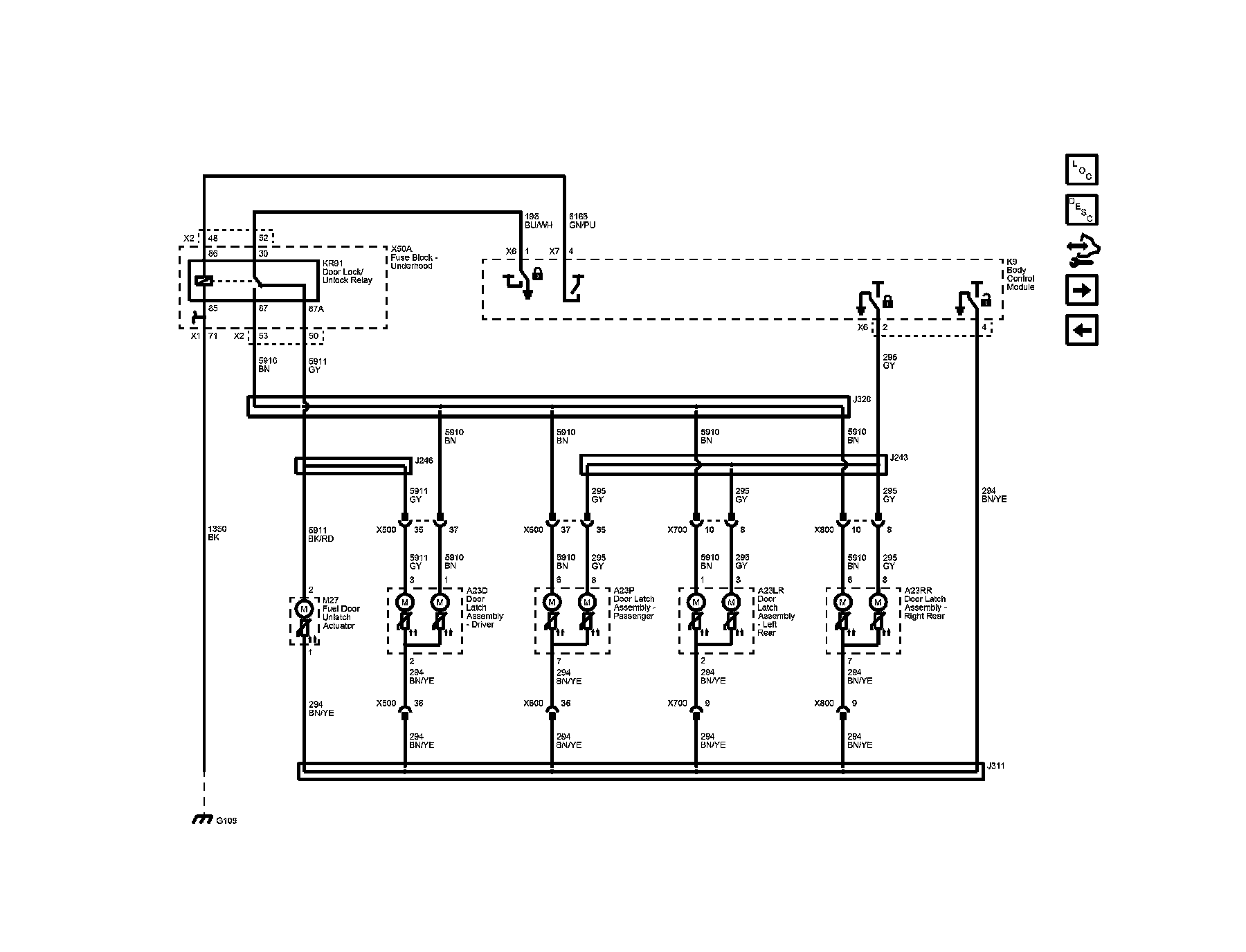

Indicators and Switches

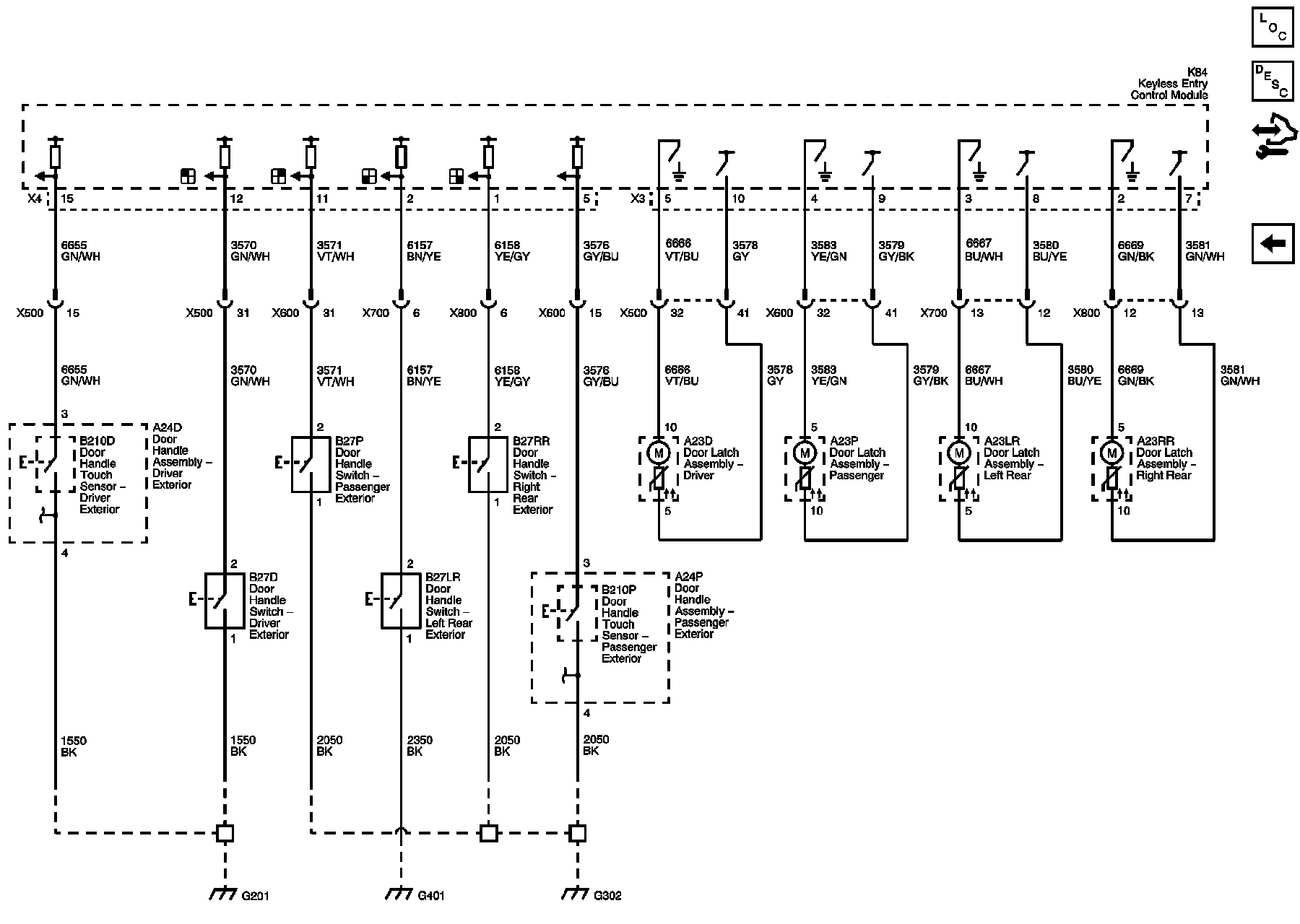

Actuators (without ATH)

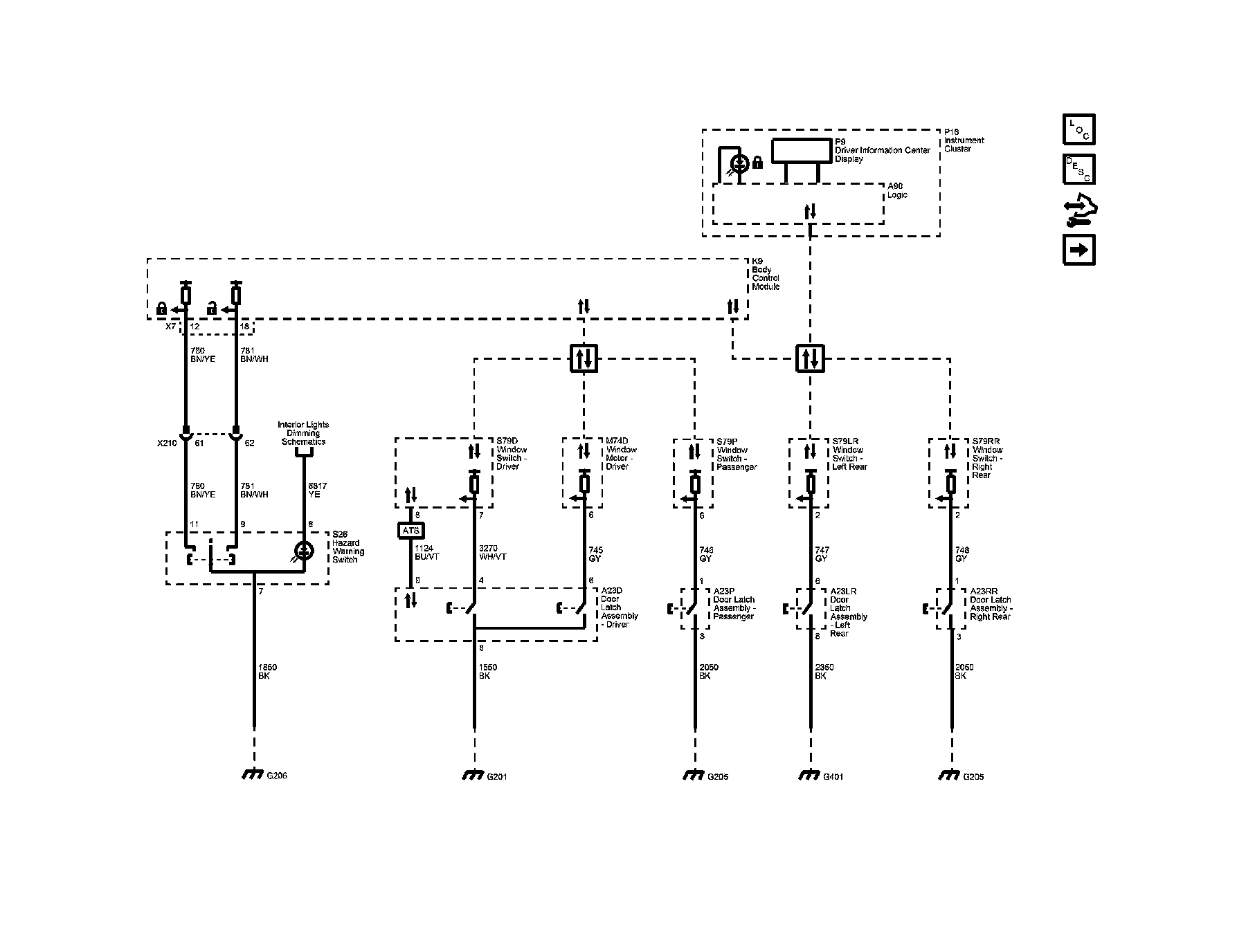

Door Lock Switches and References (ATH with BTM)

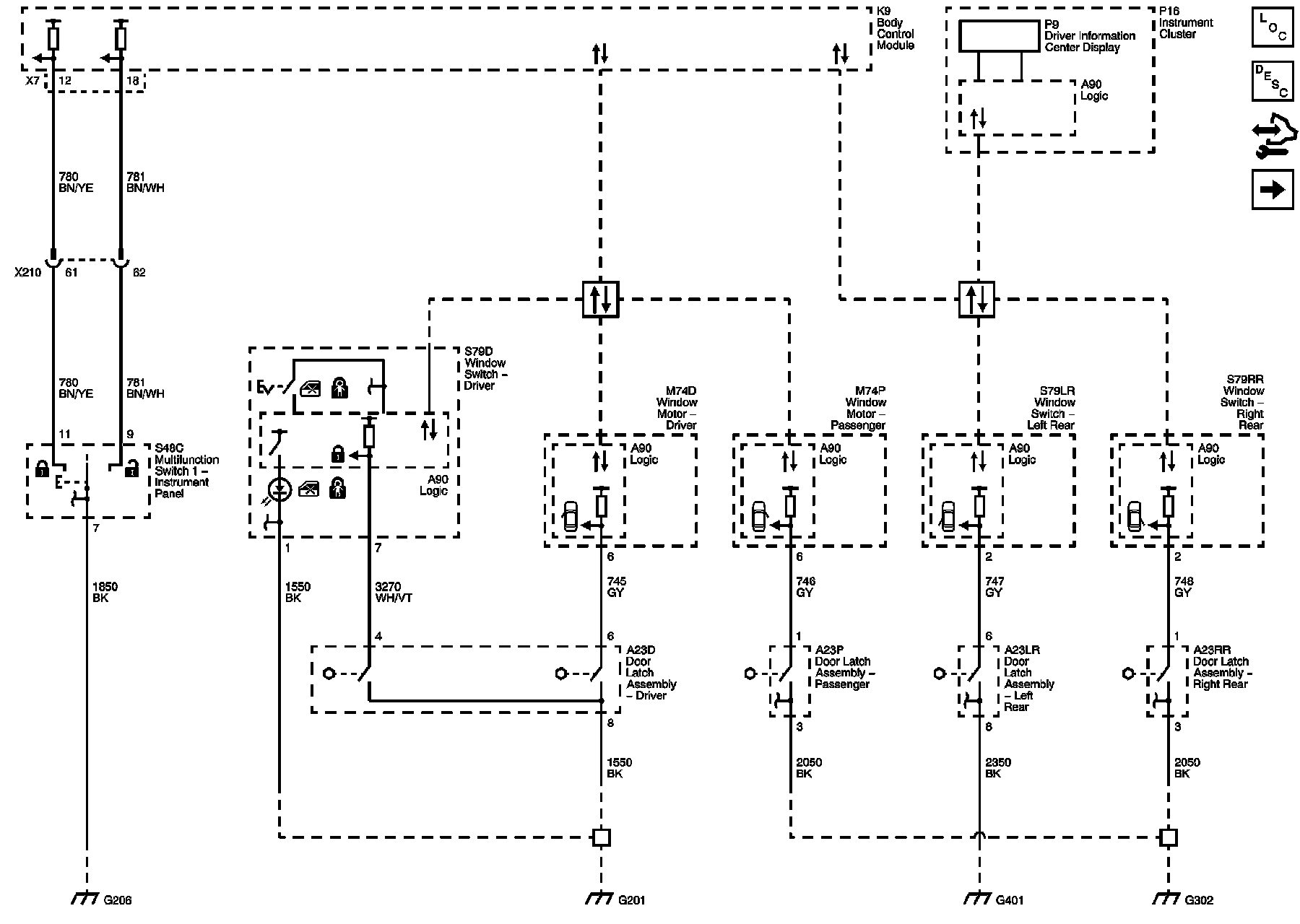

Door Lock Switch and Door Latch Switches

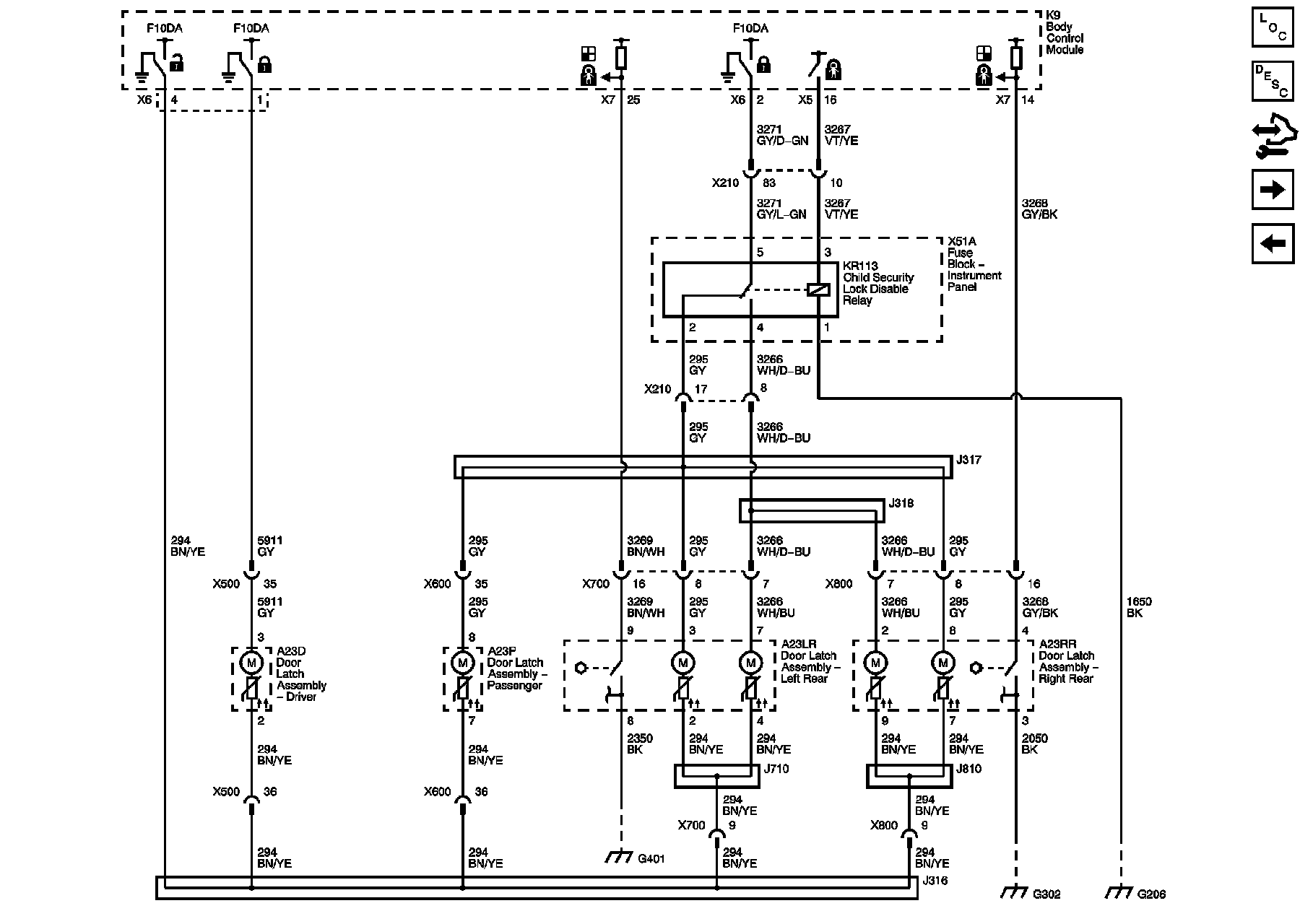

Door Lock Actuators (without ATS)
