Headlights/Daytime Running Lights (DRL) Schematics





Headlights/Daytime Running Lights (DRL) Schematics

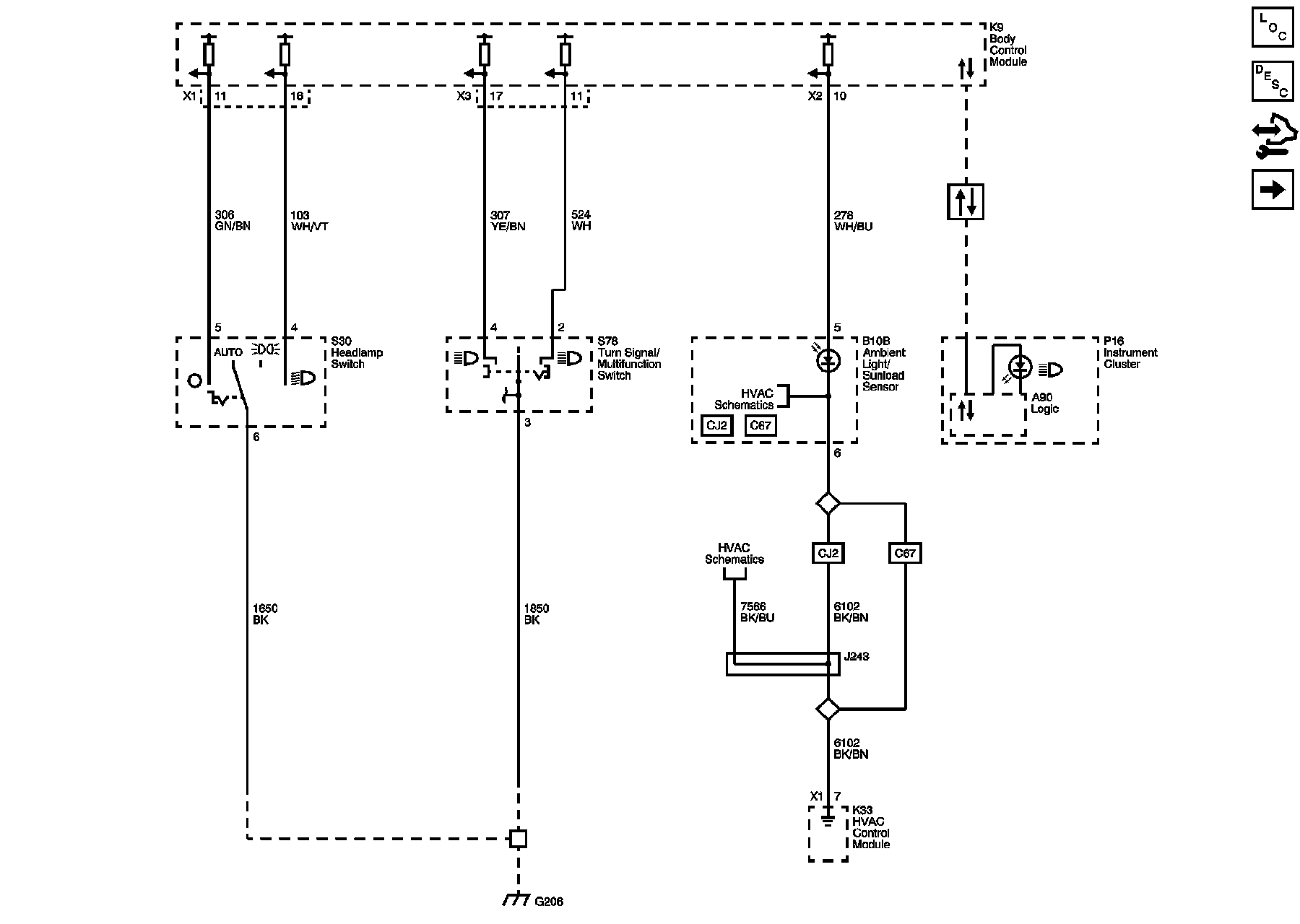

Headlamp Controls





Lamps (T4A/-CZ2)





Lamps (T4F/-CZ2)

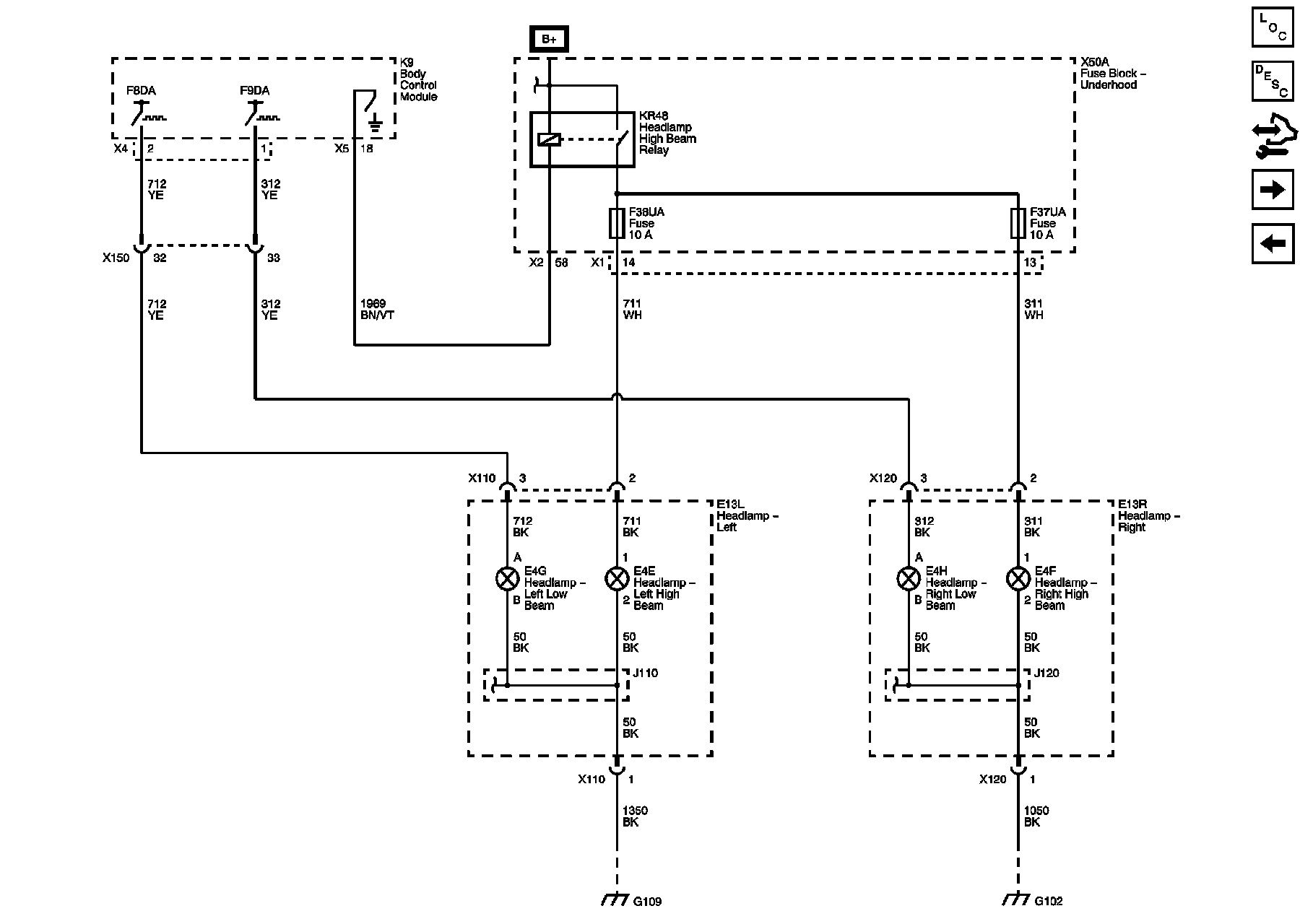

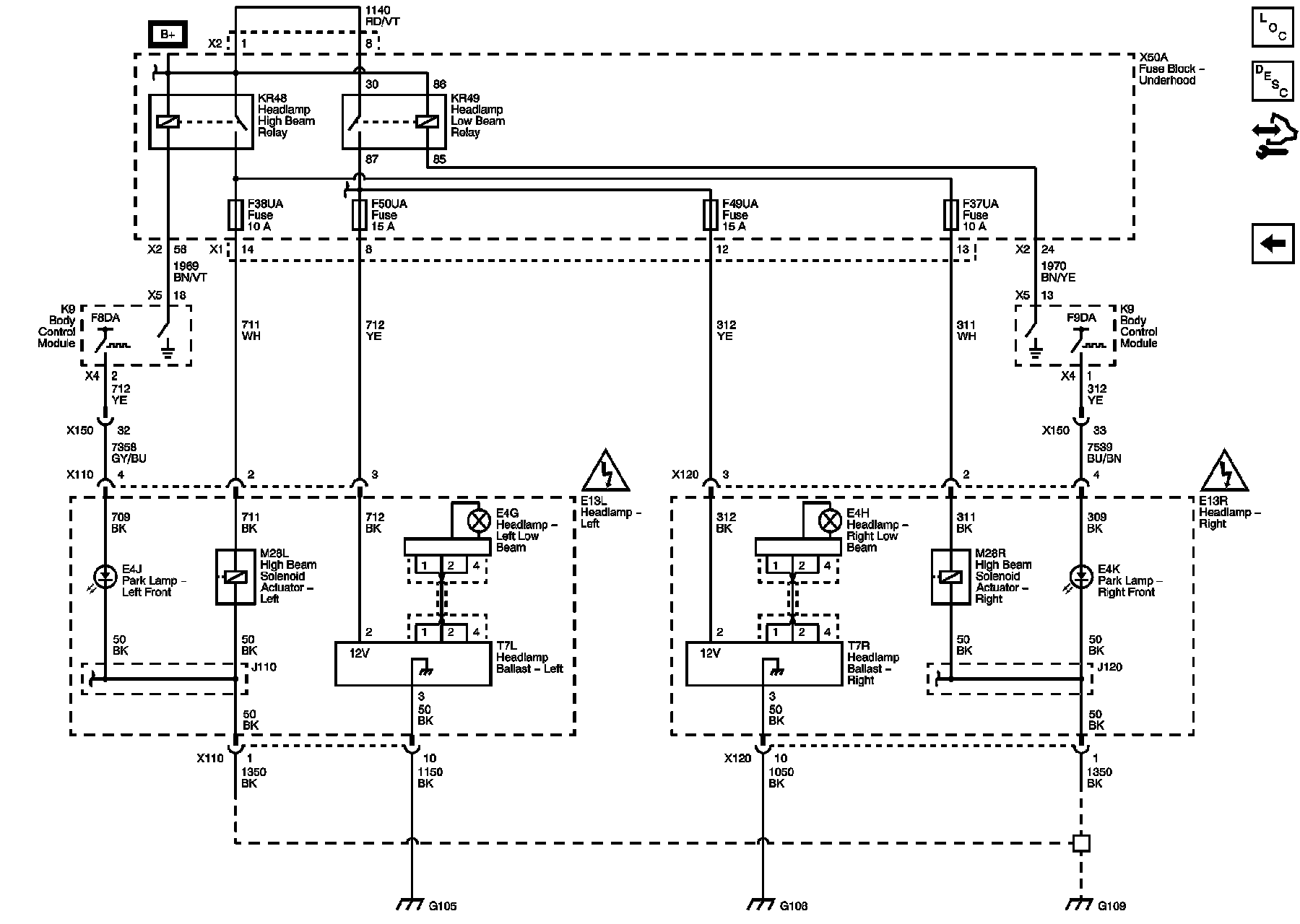

Headlamps Low Beam (T4A) and High Beam (CZ2)

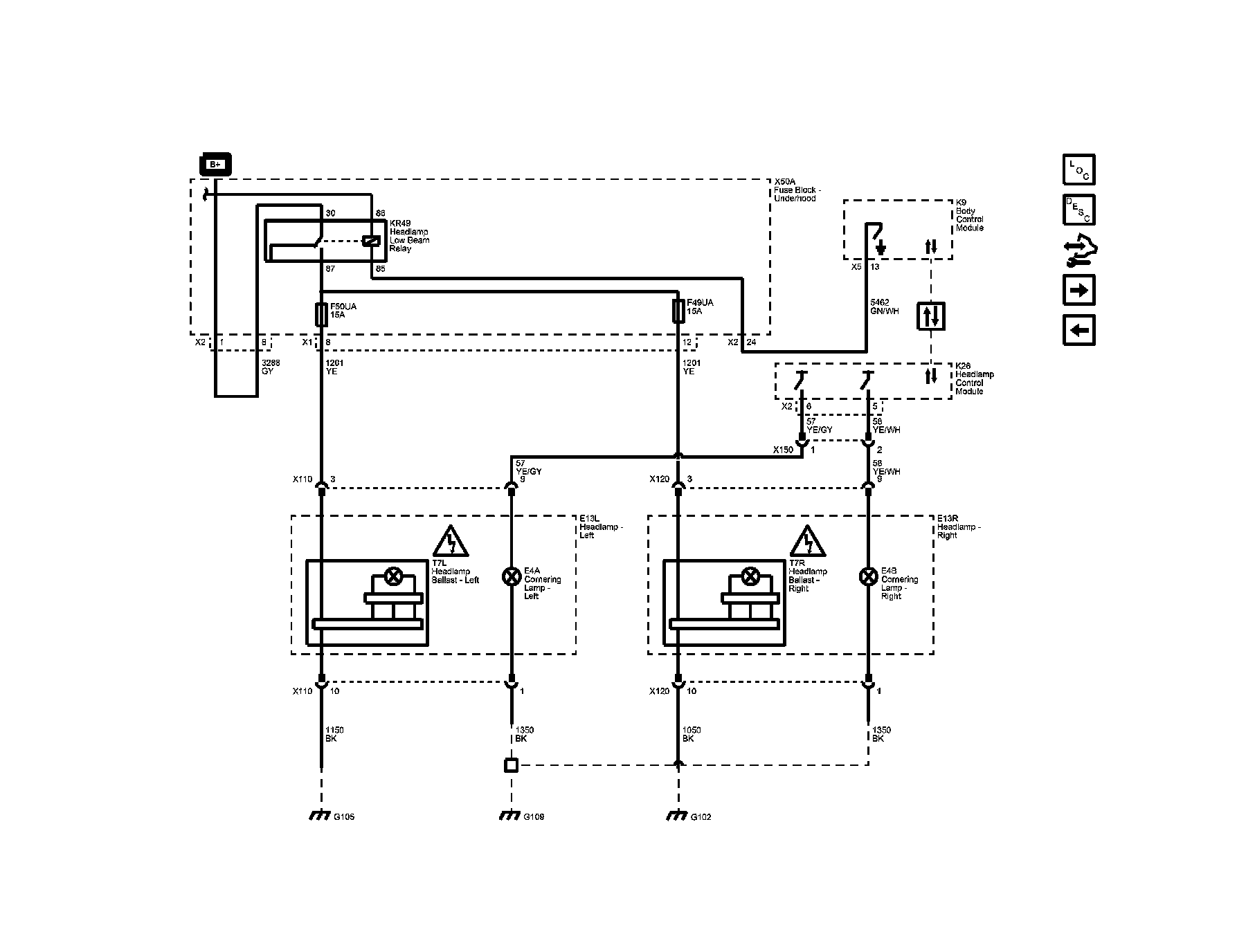

Headlamps Low Beam and Cornering Lamps (T4F/CZ2)

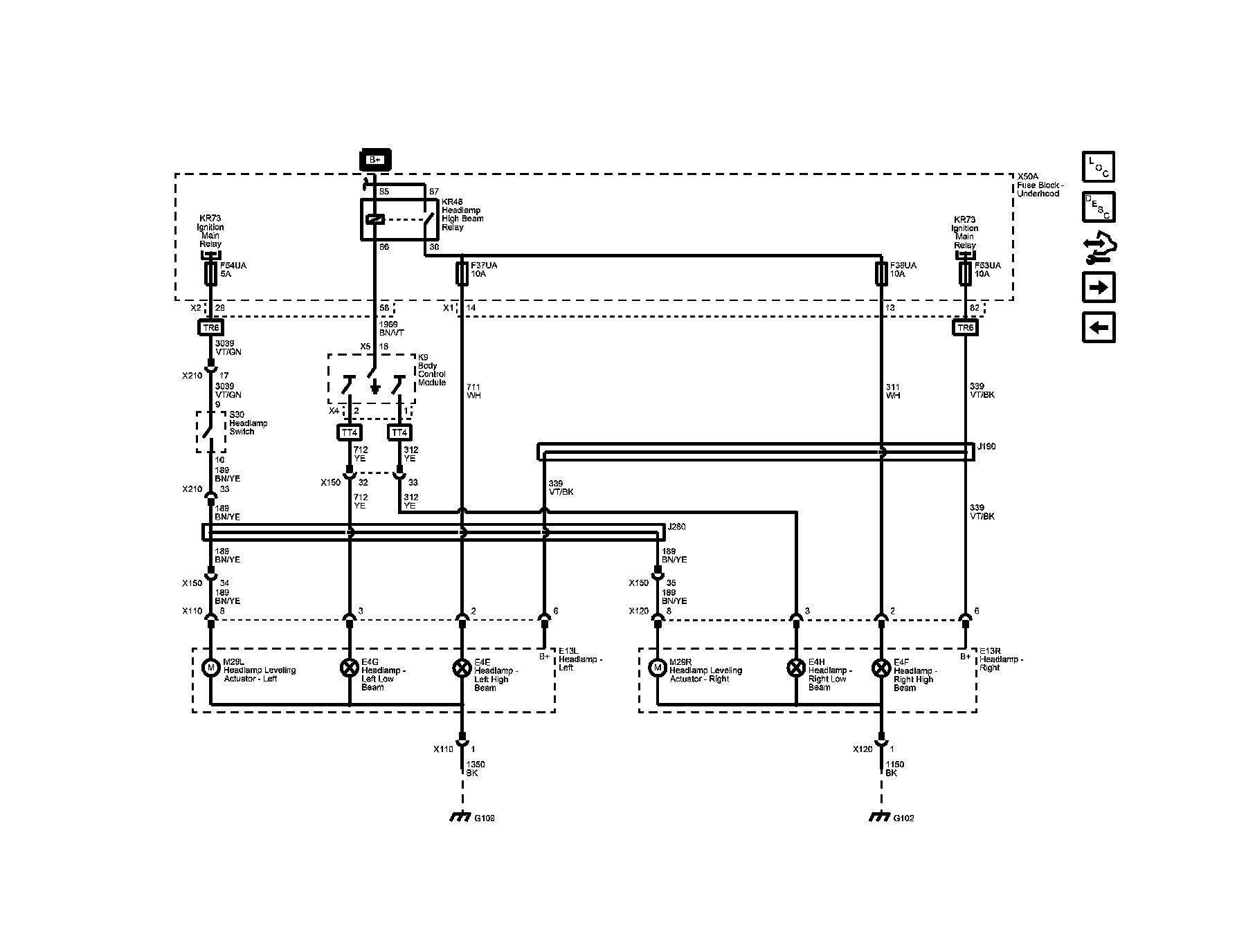

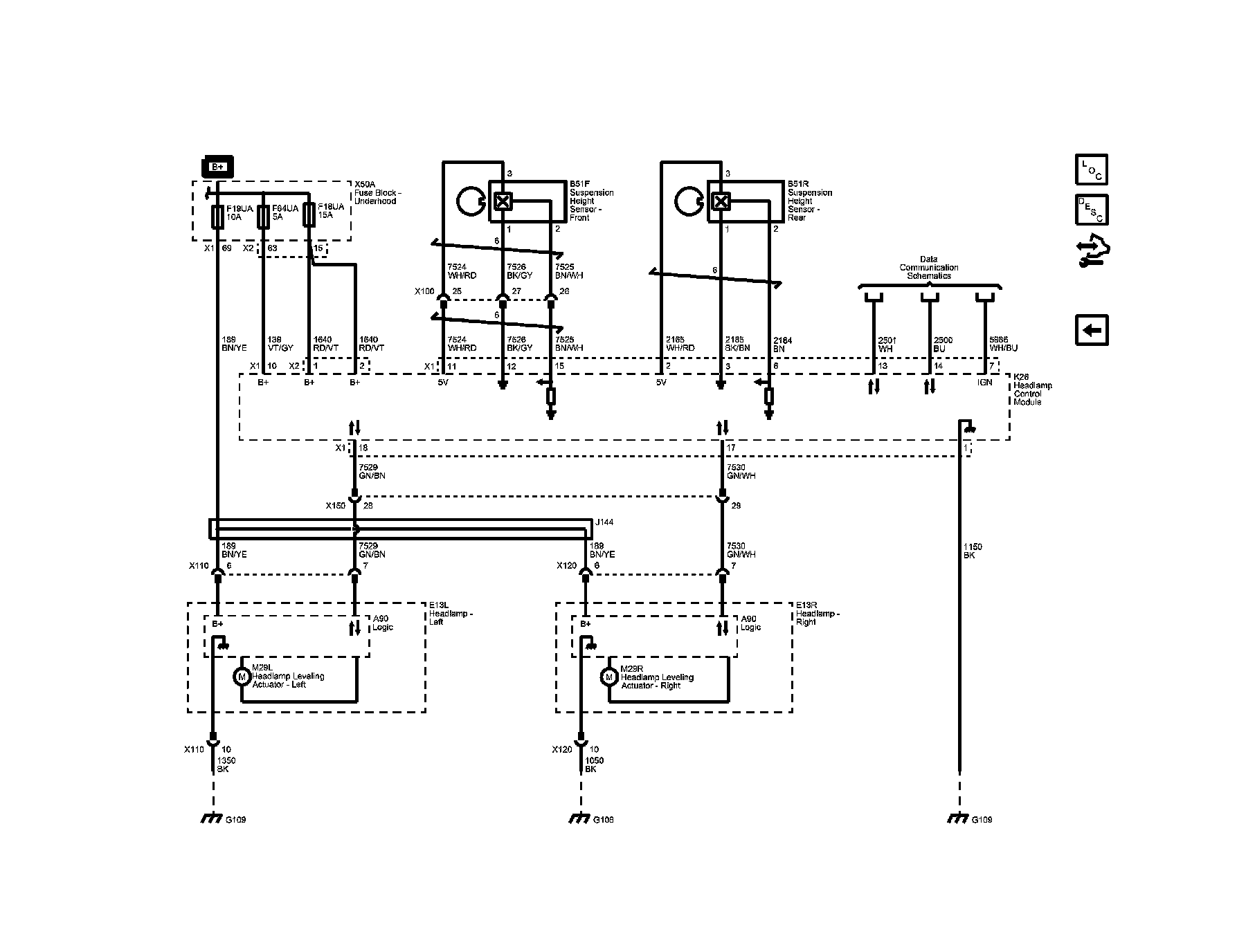

Headlamps Leveling (TR7/CZ2)
