Cellular Telephone Schematics

Cellular Telephone Schematics

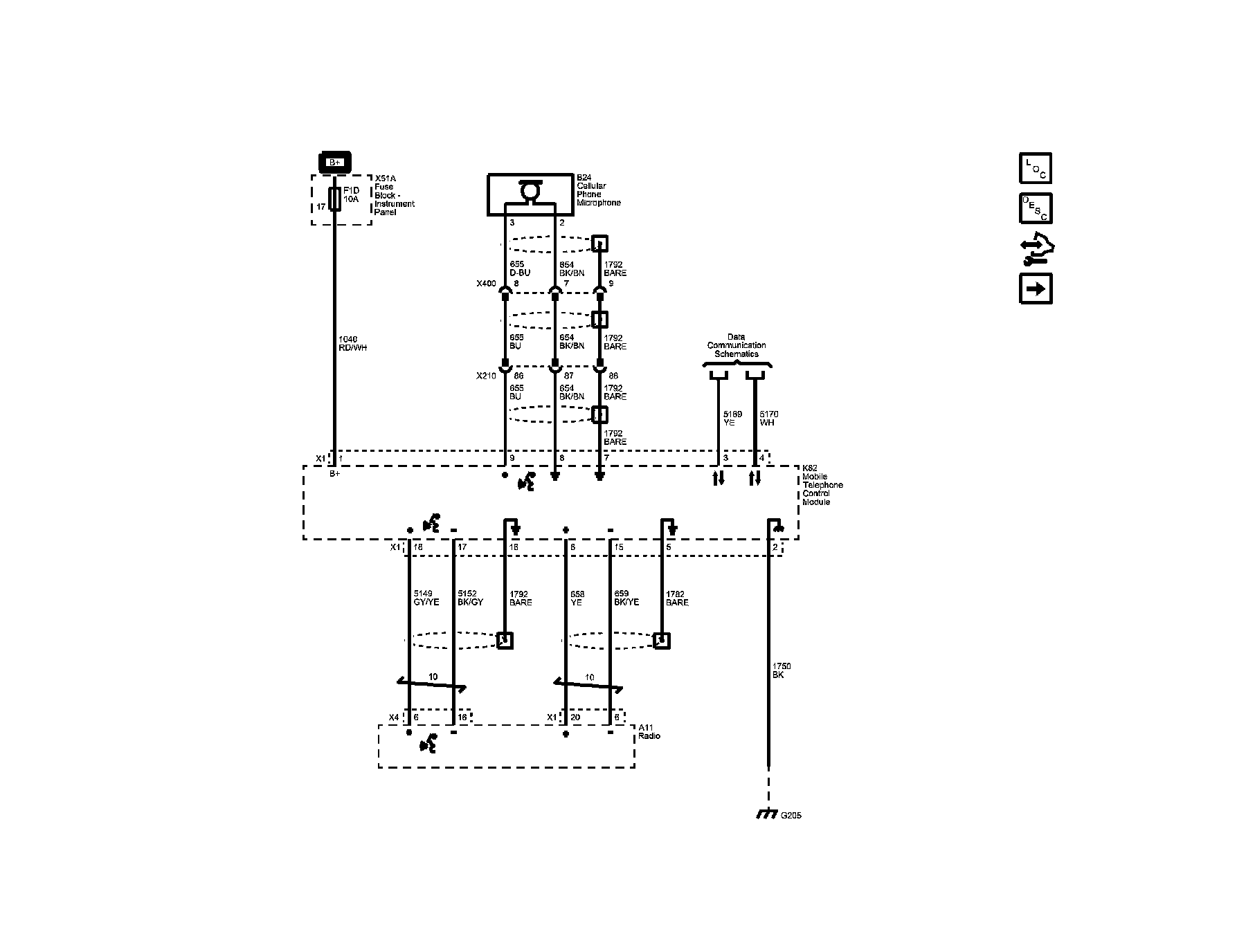

Cellular Telephone Controls CZ2

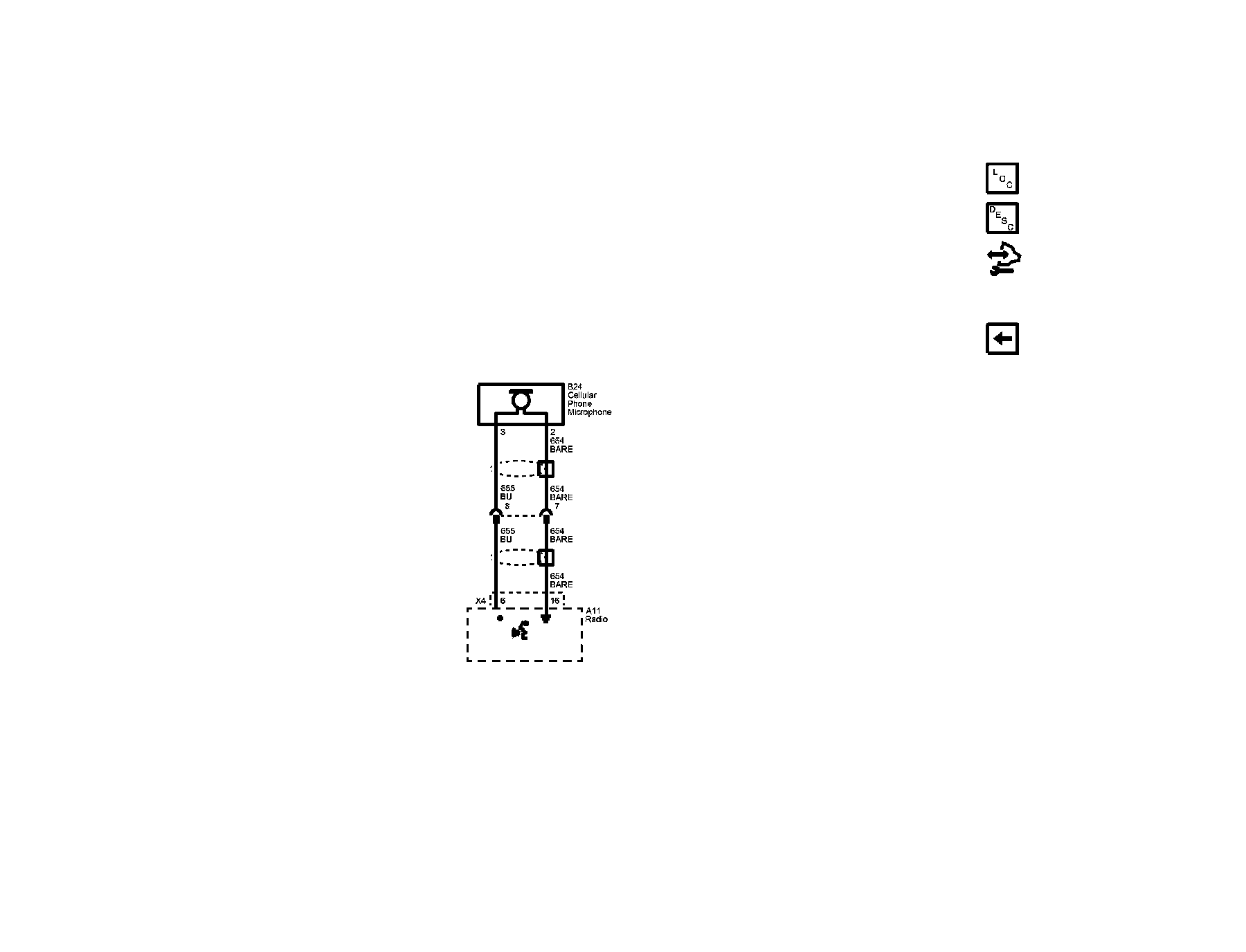

Cellular Telephone Microphone CZ2
