Wheel Speed Sensor - Left Front (-F45/-CZ2)

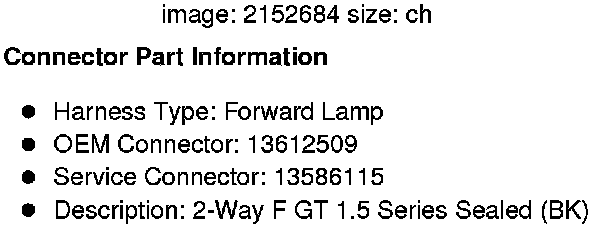

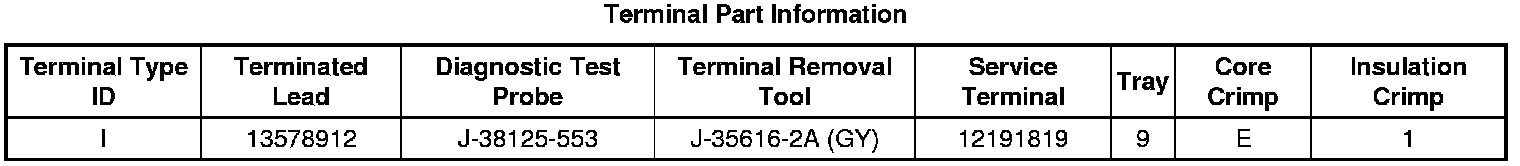

Component Connector End Views

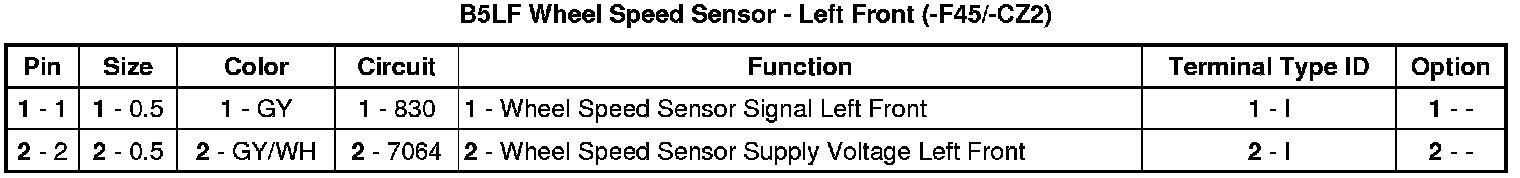

B5LF Wheel Speed Sensor - Left Front (-F45/-CZ2)
