Suspension Height Sensor - Rear (TR7)

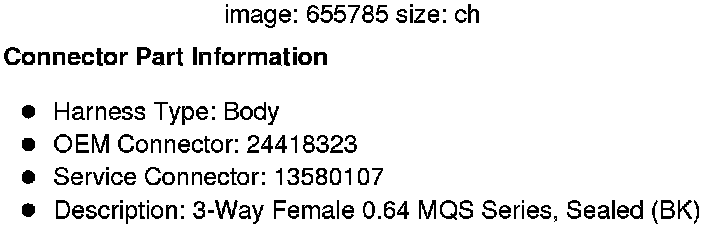

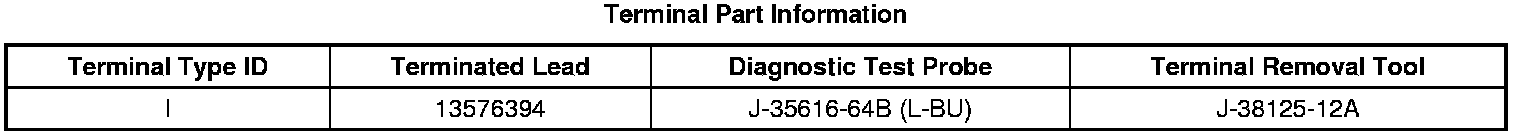

Component Connector End Views

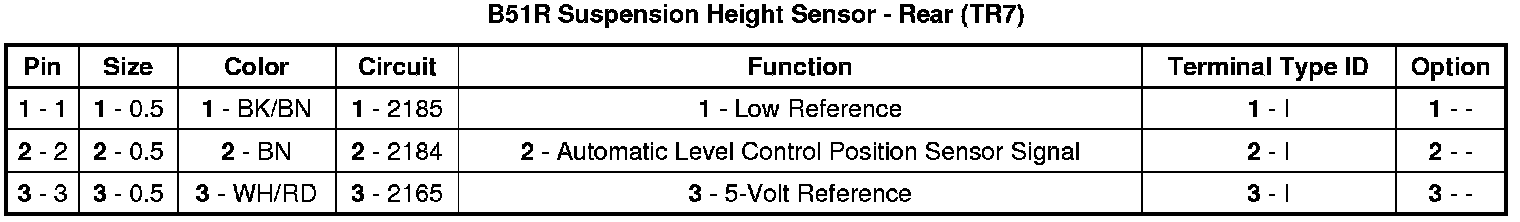

B51R Suspension Height Sensor - Rear (TR7)
