Vertical Body Acceleration Sensor - Right Front (F45)

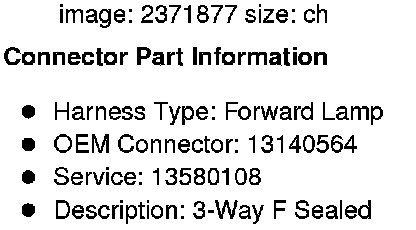

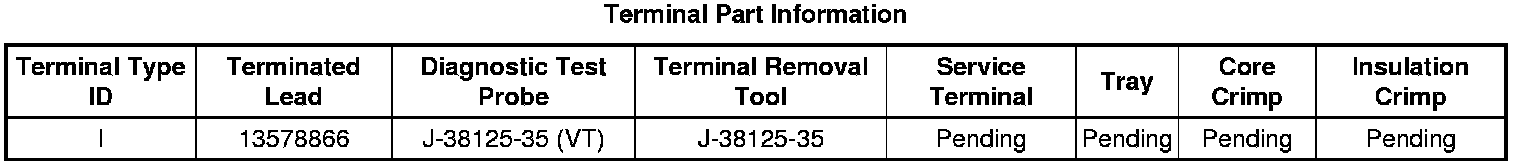

Component Connector End Views

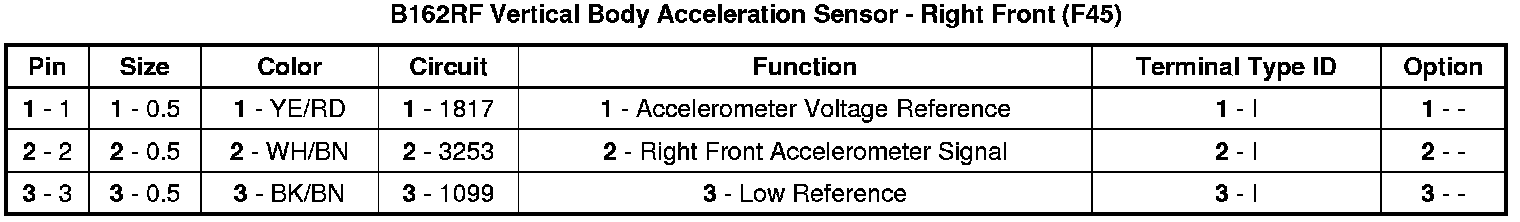

B162RF Vertical Body Acceleration Sensor - Right Front (F45)
