Vertical Body Acceleration Sensor - Rear (F45)

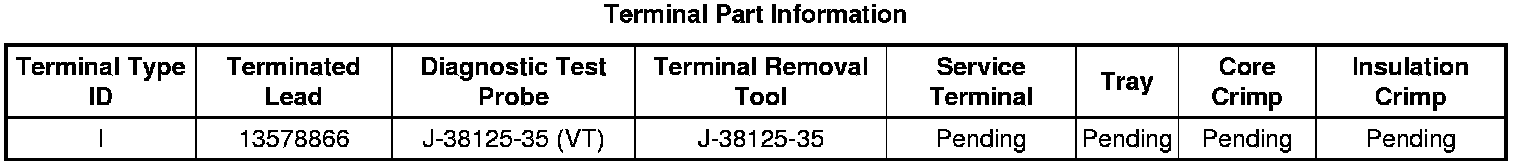

Component Connector End Views

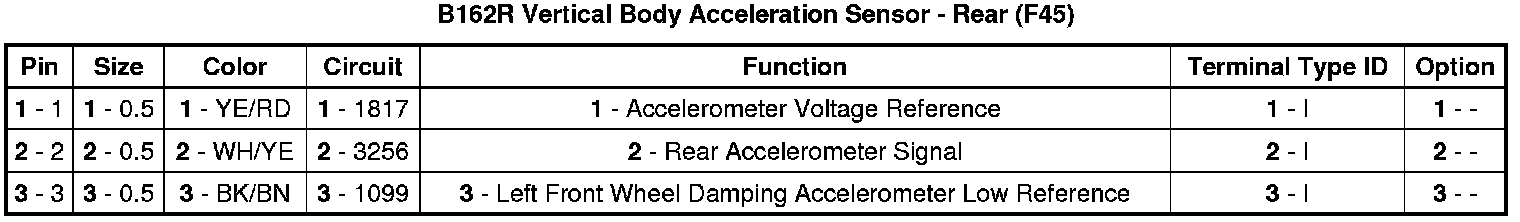

B162R Vertical Body Acceleration Sensor - Rear (F45)
