Transmission Manual Shift Switch X1 (MDK/MH7)

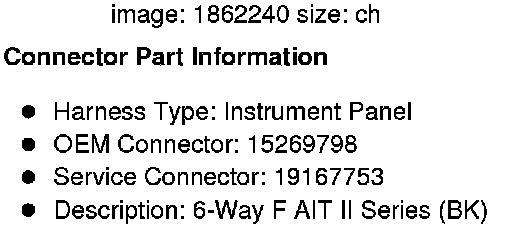

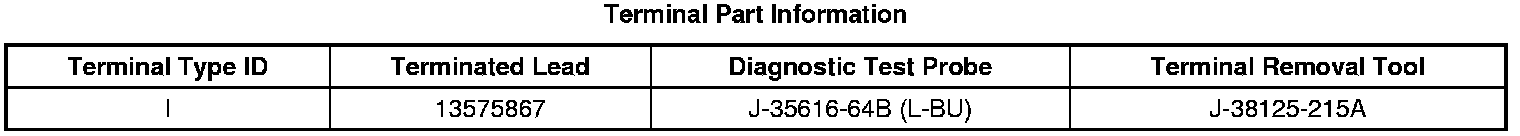

Component Connector End Views

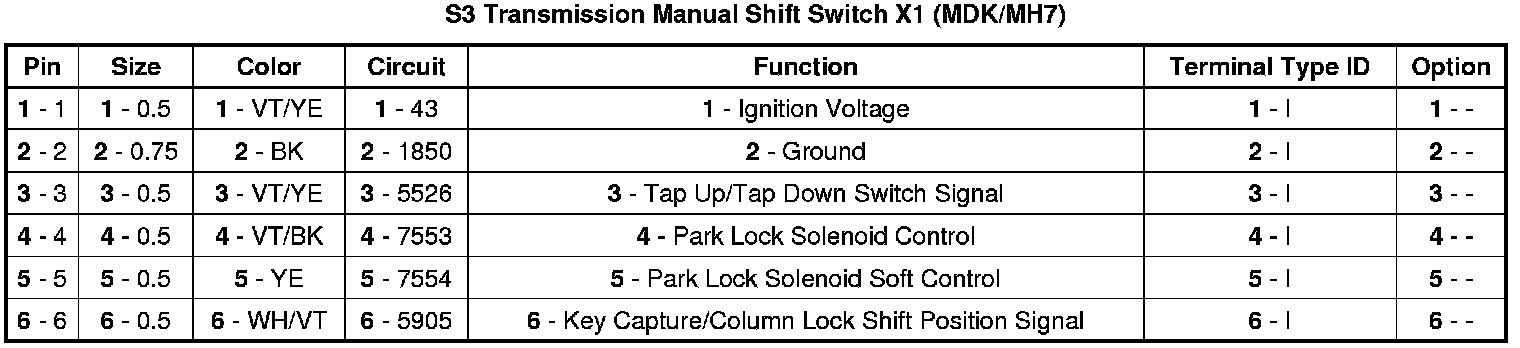

S3 Transmission Manual Shift Switch X1 (MDK/MH7)
