Seat Memory Control Module X5 A45/CZ2

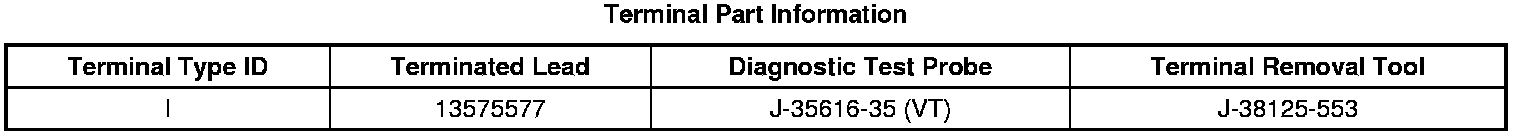

Component Connector End Views

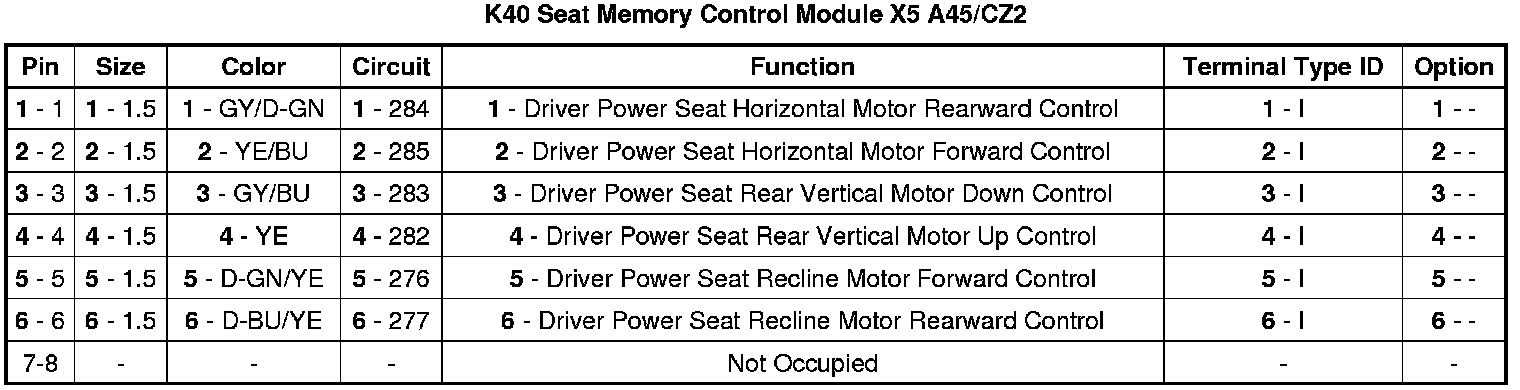

K40 Seat Memory Control Module X5 A45/CZ2
