Radio Control Multifunction Switch (KRJ)

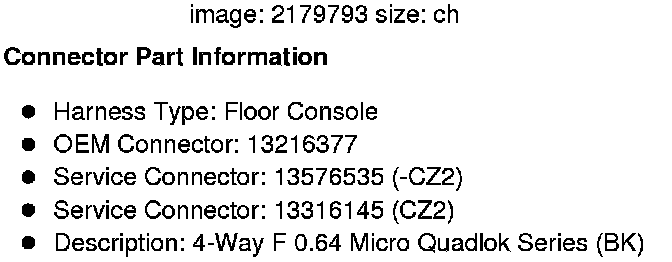

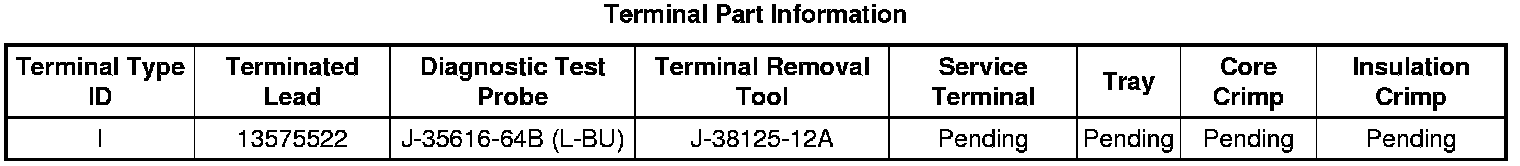

Component Connector End Views

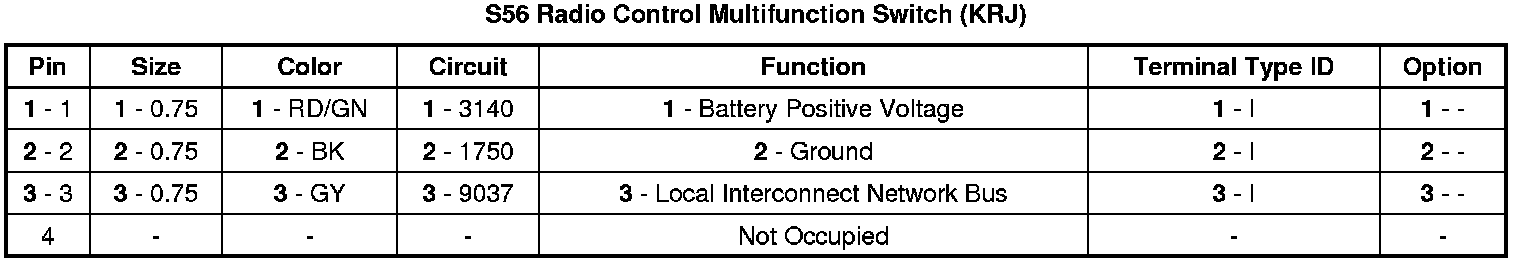

S56 Radio Control Multifunction Switch (KRJ)
