Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Driver (CZ2)

Window Switch - Driver (CZ2)





Component Connector End Views

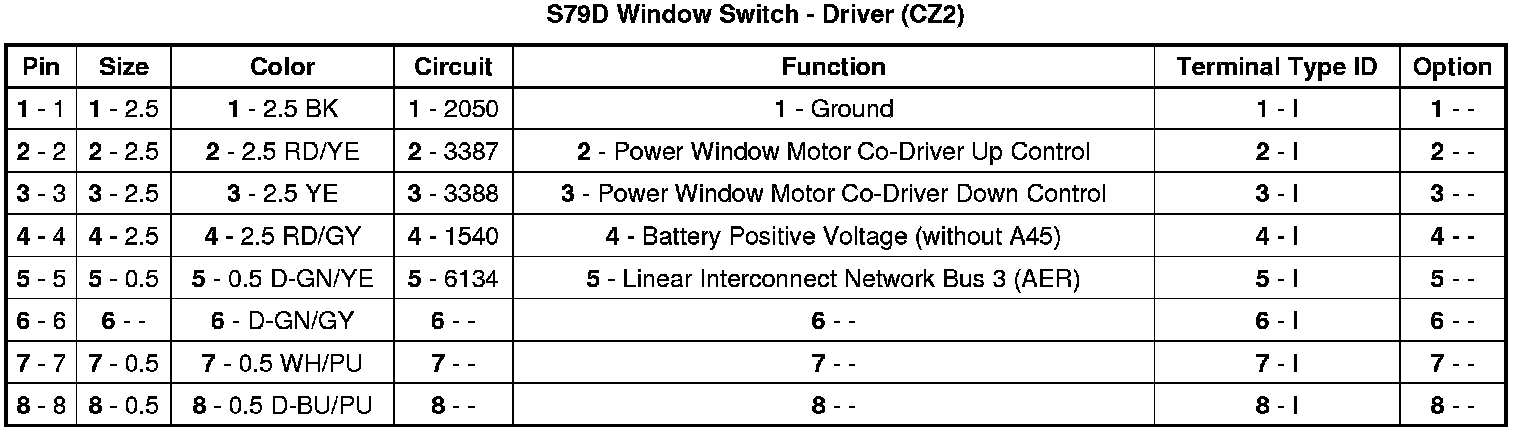

S79D Window Switch - Driver (CZ2)
