Pedal Positioning Sensor
>>
Brake Pedal Position Sensor (without MR6/ except CZ2)
Brake Pedal Position Sensor (without MR6/ except CZ2)

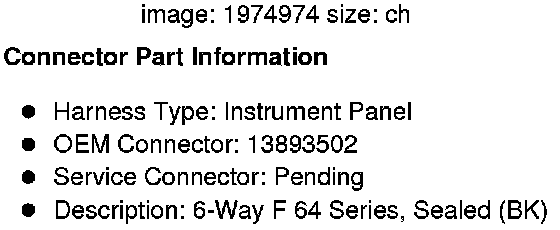

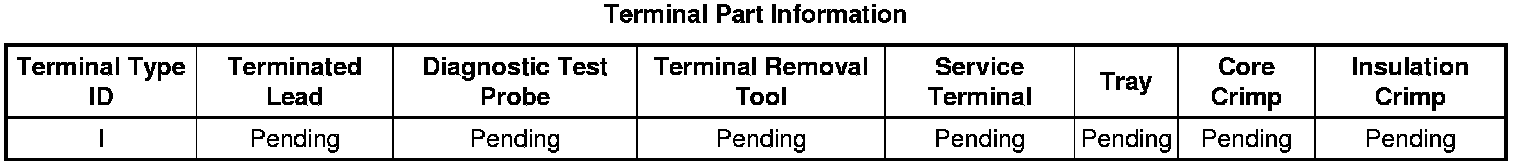

Component Connector End Views

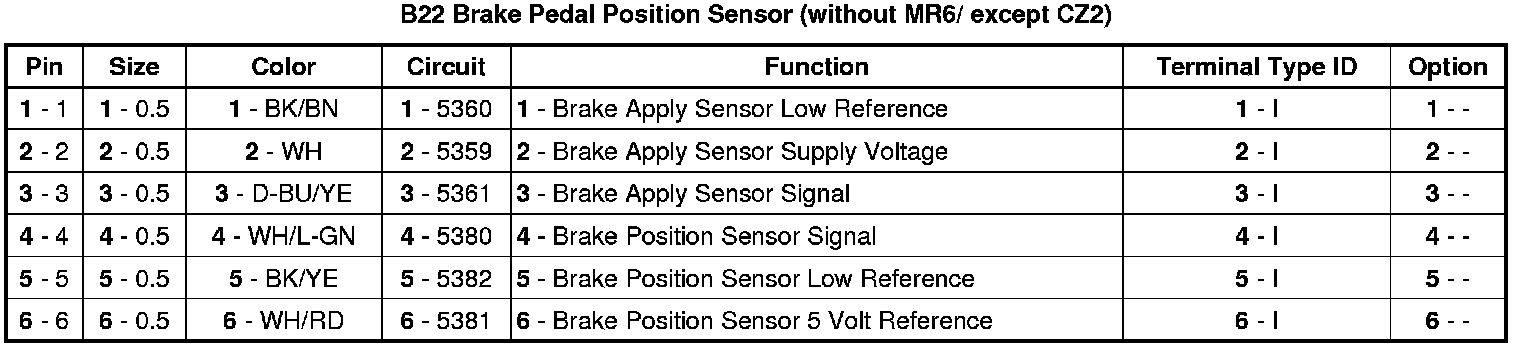

B22 Brake Pedal Position Sensor (without MR6/ except CZ2)
