Rear Parking Assist Control Module X3 (UD7 with F45)
Rear Parking Assist Control Module X3 (UD7 with F45)

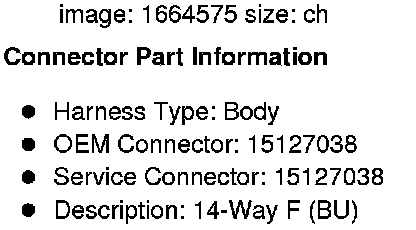

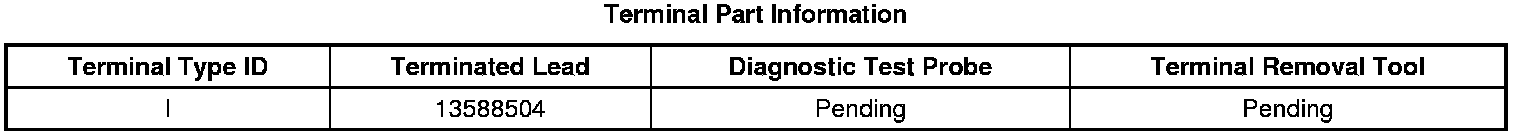

Component Connector End Views

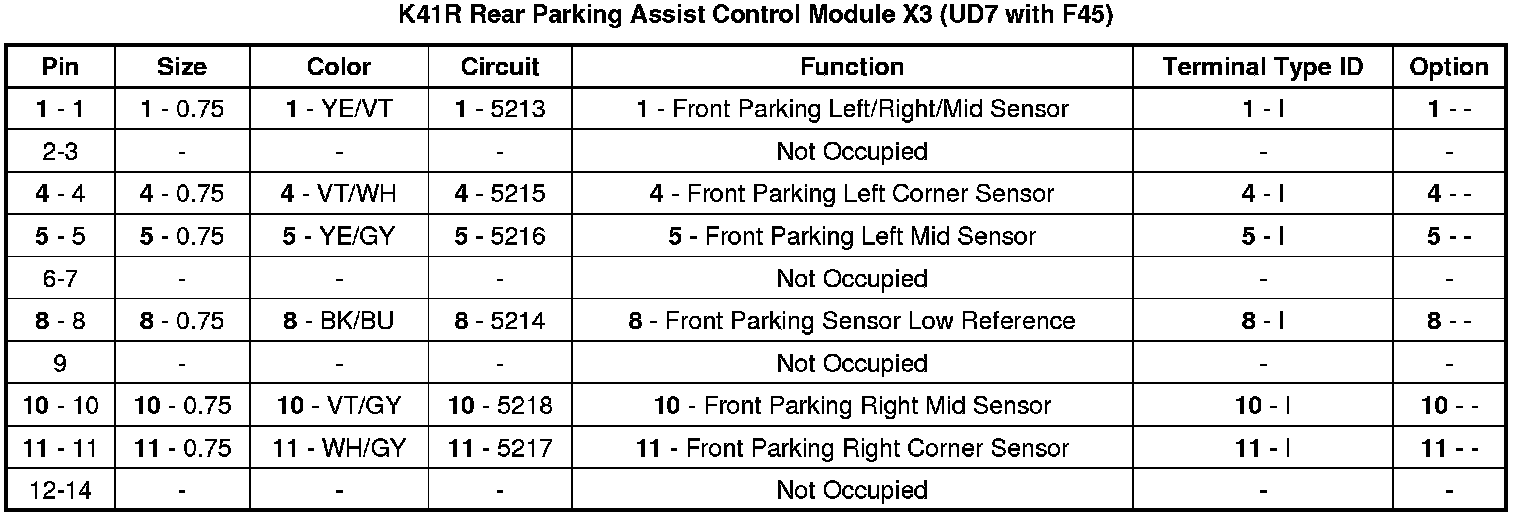

K41R Rear
Parking Assist Control Module
X3 (UD7 with F45)
