Connector Views
>>
Antenna Control Module
Antenna Control Module

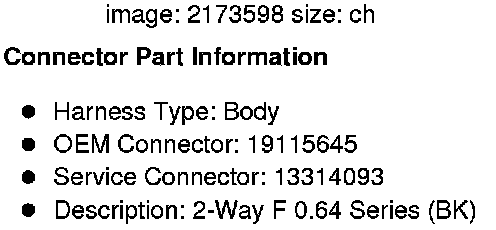

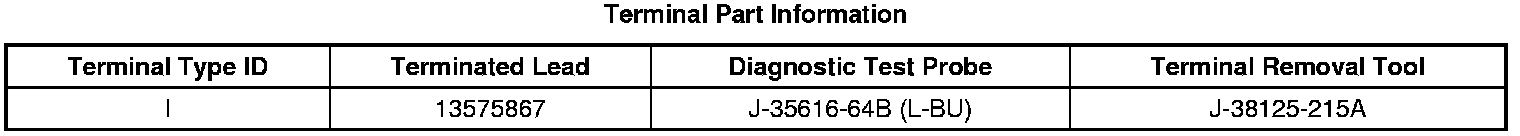

Component Connector End Views

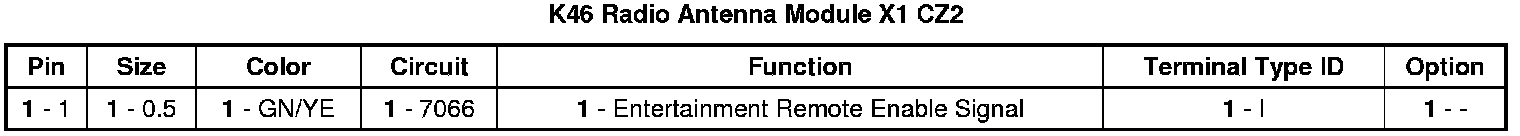

K46 Radio Antenna Module X1 CZ2
