Keyless Entry Antenna - Driver Door Handle (ATS)

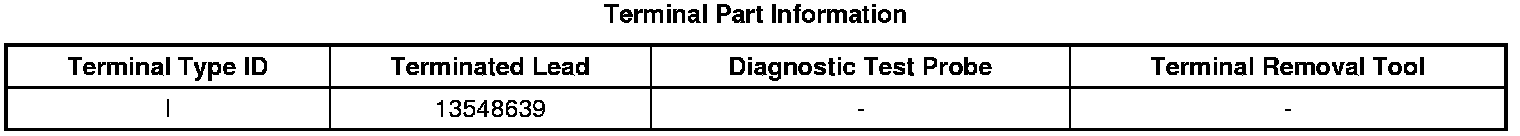

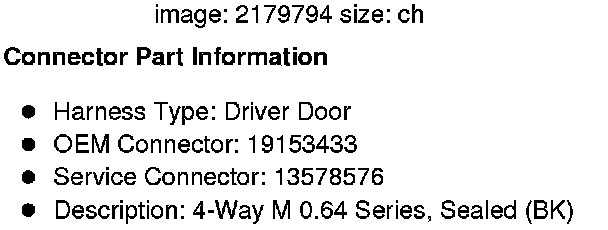

Component Connector End Views

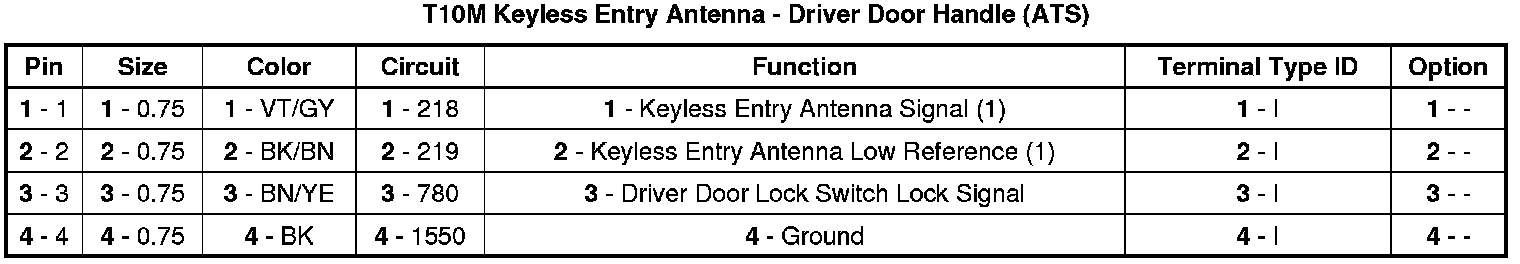

T10M Keyless Entry Antenna - Driver Door Handle (ATS)
