Inflatable Restraint Sensing and Diagnostic Module X2 (CZ2)
Inflatable Restraint Sensing and Diagnostic Module X2 (CZ2)

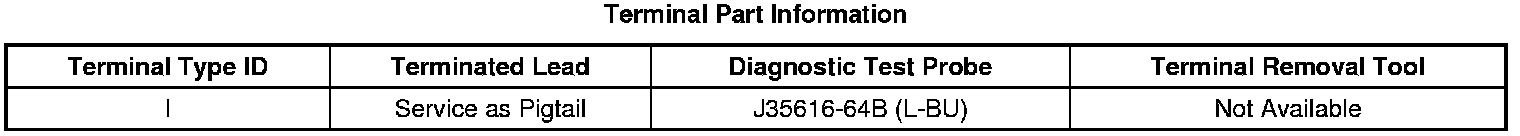

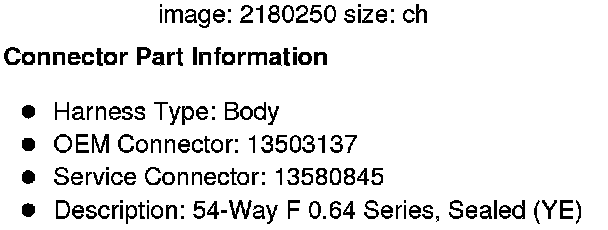

Component Connector End Views

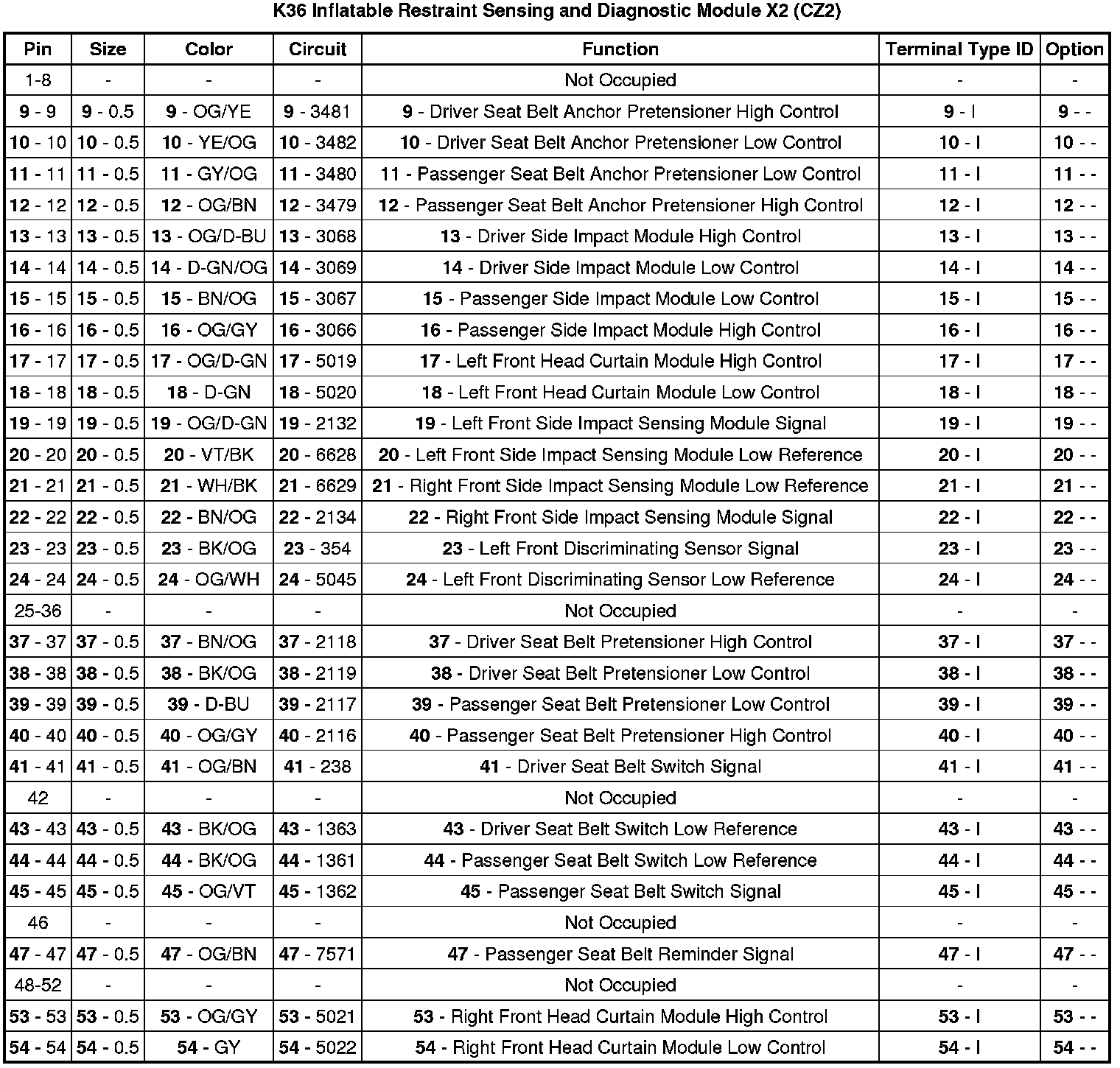

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (CZ2)
