Sunroof Window Seal Replacement - Inner

Sunroof Window Seal Replacement - Inner

Removal Procedure

1. Remove the front sunroof window. Refer to Sunroof Window Replacement - Front Sunroof Window Replacement - Front and rear sunroof window Sunroof Window Replacement - Rear Sunroof Window Replacement - Rear.

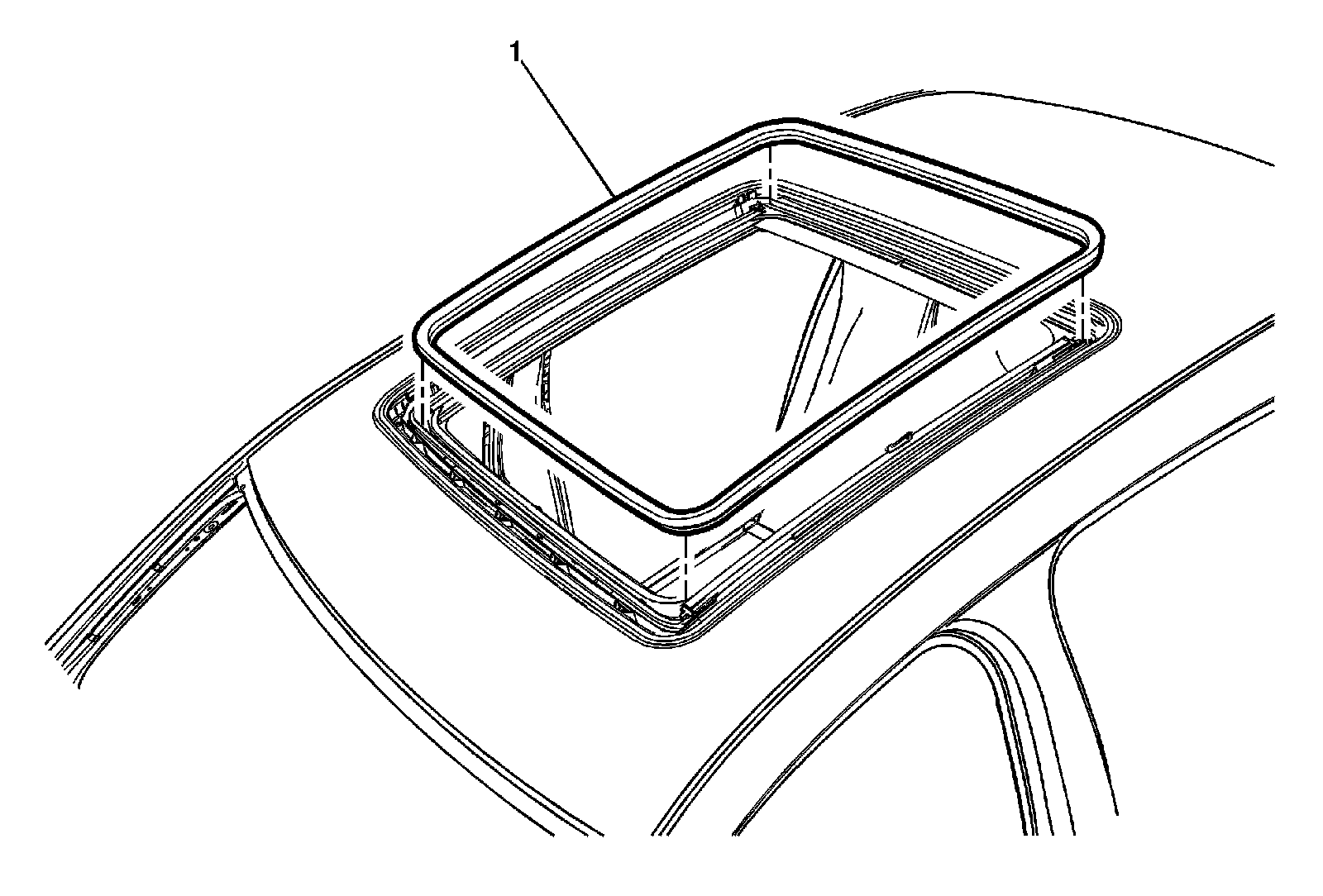

2. Start in the front of the vehicle, lift the weatherstrip (1) off the inside edge of the sunroof.

3. Remove the seal from the sunroof housing track.

Installation Procedure




1. Install the seal (1) to the sunroof housing track.

2. Using a suitable tool, seat the weatherstrip on the inner edge of the sunroof.

3. Install the front sunroof window. Refer to Sunroof Window Replacement - Front Sunroof Window Replacement - Front and rear sunroof window Sunroof Window Replacement - Rear Sunroof Window Replacement - Rear.

4. Water test to verify no leaks.
