Trunk / Liftgate Switch: Diagrams

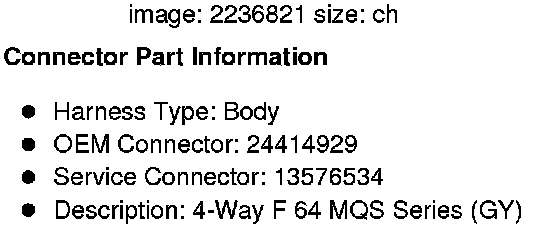

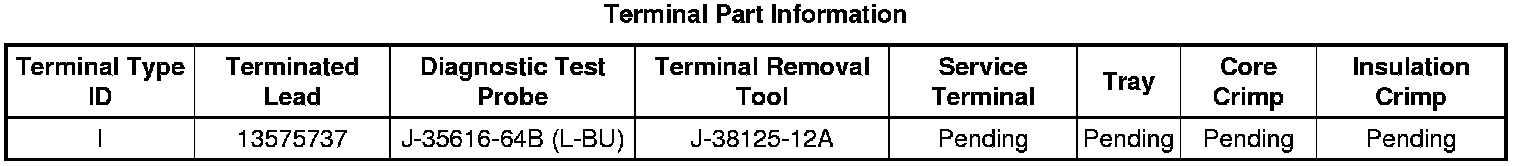

Component Connector End Views

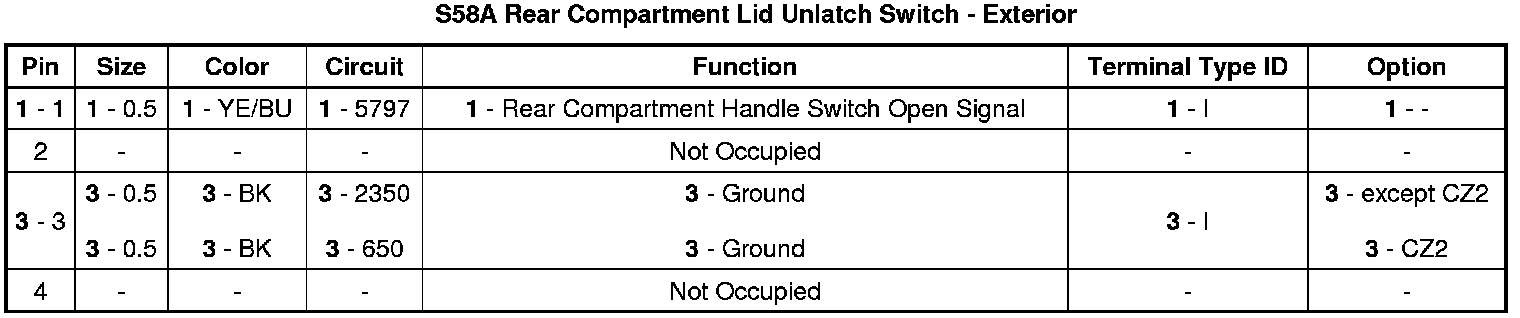

S58A Rear Compartment Lid Unlatch Switch - Exterior
