Door Ajar Indicator Malfunction
Door Ajar Indicator Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category

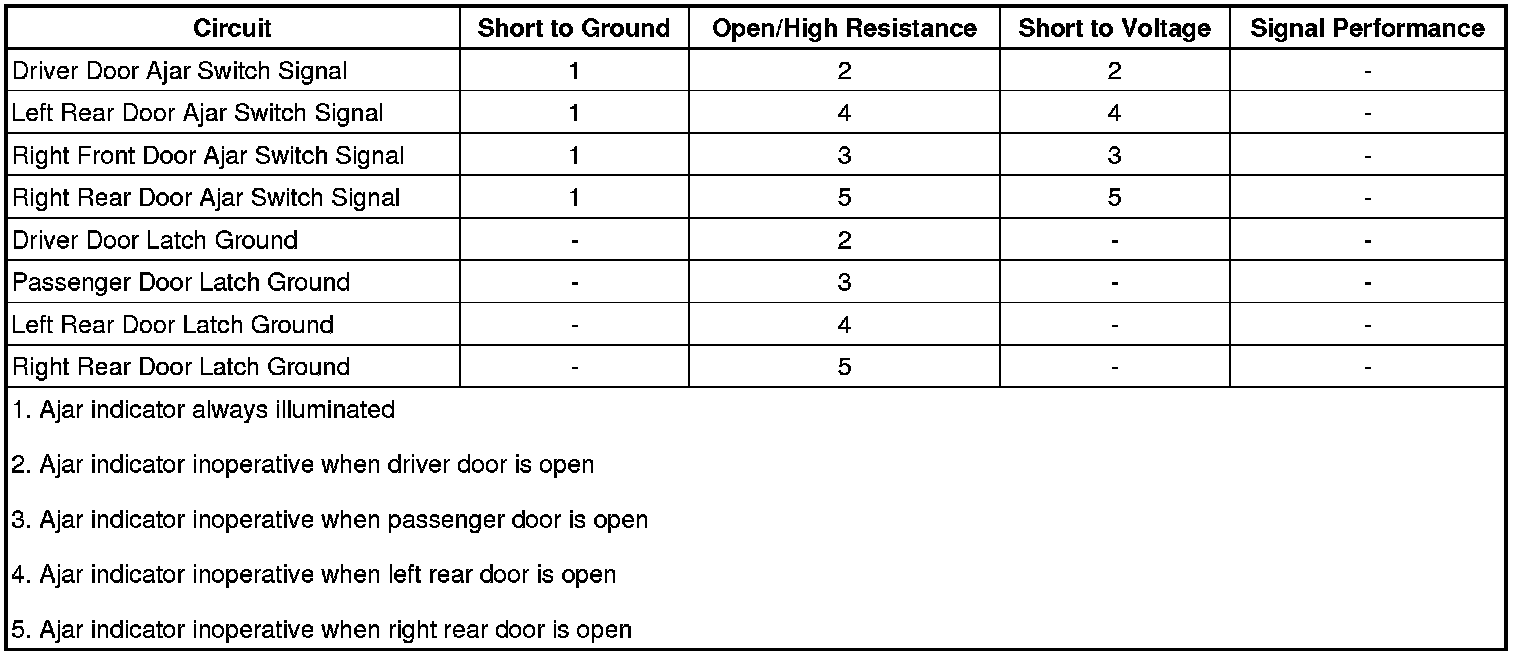

Diagnostic Fault Information
Circuit/System Description
Depending upon the vehicle power window options, the window motors or the window switches will provide the ajar switches with a 12V signal. With the door ajar switch closed, ground is provided to the door ajar switch signal circuit, the window motor and/or window switch will detect the voltage drop and will send a serial data message to the BCM and the BCM will send serial data message to the instrument panel cluster to display the door ajar icon.
Reference Information
Schematic Reference
Door Lock/Indicator Schematics Door Lock/Indicator Schematics
Connector End View Reference
Component Connector End Views Sunshade - Left
Description and Operation
Door Ajar Indicator Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Ignition ON.
2. Verify the scan tool Driver Door Ajar Switch parameter changes between Inactive and Active when opening and closing the driver door.
• If the parameter does not change
Refer to Circuit/System Testing - Driver Door Ajar Switch Malfunction.
• If the parameter changes
3. Verify the scan tool Passenger Door Ajar Switch parameter changes between Inactive and Active when opening and closing the passenger door.
• If the parameter does not change
Refer to Circuit/System Testing - Passenger Door Ajar Switch Malfunction.
• If the parameter changes
4. Verify the scan tool Left Rear Door Ajar Switch parameter changes between Inactive and Active when opening and closing the left rear door.
• If the parameter does not change
Refer to Circuit/System Testing - Left Rear Door Ajar Switch Malfunction.
• If the parameter changes
5. Verify the scan tool Right Rear Door Ajar Switch parameter changes between Inactive and Active when opening and closing the right rear door.
• If the parameter does not change
Refer to Circuit/System Testing - Right Rear Door Ajar Switch Malfunction.
• If the parameter changes
6. All OK.
Circuit/System Testing
Driver Door Ajar Switch Malfunction
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A23D door latch assembly - driver. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal 8 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Ignition ON.
4. Verify the scan tool Driver Door Ajar Switch parameter is Inactive.
• If not Inactive
1. Ignition OFF, disconnect the harness connector at the M74D window motor - driver.
2. Test for infinite resistance between the signal circuit terminal 6 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the M74D window motor - driver.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 6 and the ground circuit terminal 8.
6. Verify the scan tool Driver Door Ajar Switch parameter is Active.
• If not Active
1. Ignition OFF, disconnect the harness connector at the M74D window motor - driver, ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the M74D window motor - driver.
• If Active
7. Test or replace the A23D door latch assembly - driver.
Passenger Door Ajar Switch Malfunction
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A23P door latch assembly - passenger. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal 3 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Ignition ON.
4. Verify the scan tool Passenger Door Ajar Switch parameter is Inactive.
• If not Inactive
1. Ignition OFF, disconnect the harness connector at the M74P window motor - passenger.
2. Test for infinite resistance between the signal circuit terminal 1 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the M74P window motor - passenger.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the ground circuit terminal 3.
6. Verify the scan tool Passenger Door Ajar Switch parameter is Active.
• If not Active
1. Ignition OFF, disconnect the harness connector at the M74P window motor - passenger, ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the M74P window motor - passenger.
• If Active
7. Test or replace the A23P door latch assembly - passenger.
Left Rear Door Ajar Switch Malfunction
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A23LR door latch assembly - left rear. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal 8 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Ignition ON.
4. Verify the scan tool Left Rear Door Ajar Switch parameter is Inactive.
• If not Inactive
1. Ignition OFF, disconnect the harness connector at the S79LR window switch - left rear.
2. Test for infinite resistance between the signal circuit terminal 6 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the S79LR window switch - left rear.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 6 and the ground circuit terminal 8.
6. Verify the scan tool Left Rear Door Ajar Switch parameter is Active.
• If not Active
1. Ignition OFF, disconnect the harness connector at the S79LR window switch - left rear, ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the S79LR window switch - left rear.
• If Active
7. Test or replace the A23LR door latch assembly - left rear.
Right Rear Door Ajar Switch Malfunction
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the A23RR door latch assembly - right rear. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal 3 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Ignition ON.
4. Verify the scan tool Right Rear Door Ajar Switch parameter is Inactive.
• If not Inactive
1. Ignition OFF, disconnect the harness connector at the S79RR window switch - right rear.
2. Test for infinite resistance between the signal circuit terminal 1 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the S79RR window switch - right rear.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the ground circuit terminal 3.
6. Verify the scan tool Right Door Ajar Switch parameter is Active.
• If not Active
1. Ignition OFF, disconnect the harness connector at the S79RR window switch - right rear, ignition ON.
2. Test for less than 1 V between the signal circuit and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the S79RR window switch - right rear.
• If Active
7. Test or replace the A23RR door latch assembly - right rear.
Component Testing
1. Ignition OFF, disconnect the harness connector at the appropriate A23 door latch assembly.
2. Test for infinite resistance between the terminals listed below with the switch in the open position.
* Driver door latch signal terminal 6 and ground terminal 8
* Left rear door latch signal terminal 6 and ground terminal 8
* Right rear door latch signal terminal 1 and ground terminal 3
* Passenger door latch signal terminal 1 and ground terminal 3
• If less than infinite resistance
Replace the A23 door latch assembly.
• If infinite resistance
3. Test for less than 5 ohms between the terminals listed below with the switch in the closed position.
* Driver door latch signal terminal 6 and ground terminal 8
* Left rear door latch signal terminal 6 and ground terminal 8
* Right rear door latch signal terminal 1 and ground terminal 3
* Passenger door latch signal terminal 1 and ground terminal 3
• If 5 ohms or greater
Replace the A23 door latch assembly.
• If less than 5 ohms
4. All OK
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.
* Front Side Door Lock Replacement Front Side Door Lock Replacement
* Rear Side Door Lock Replacement Rear Side Door Lock Replacement
* Rear Side Door Window Switch Replacement Rear Side Door Window Switch Replacement
* Front Side Door Window Regulator Motor Replacement Service and Repair
