Body and Frame: Application and ID

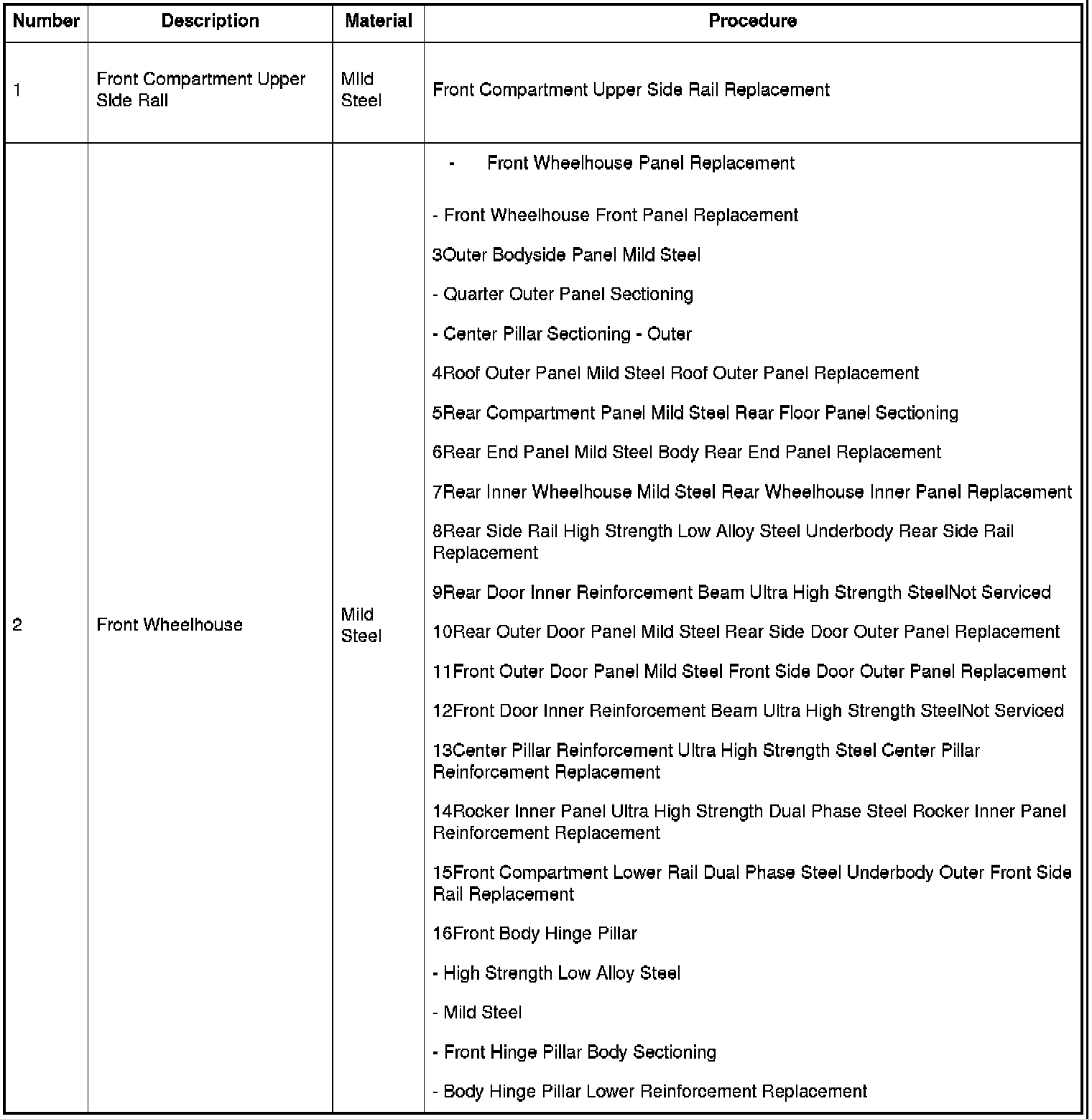

Structure Identification












- Front Wheelhouse Front Panel Replacement

3Outer Bodyside Panel Mild Steel
- Quarter Outer Panel Sectioning

- Center Pillar Sectioning - Outer

4Roof Outer Panel Mild Steel Roof Outer Panel Replacement

5Rear Compartment Panel Mild Steel Rear Floor Panel Sectioning

6Rear End Panel Mild Steel Body Rear End Panel Replacement

7Rear Inner Wheelhouse Mild Steel Rear Wheelhouse Inner Panel Replacement

8Rear Side Rail High Strength Low Alloy Steel Underbody Rear Side Rail Replacement

9Rear Door Inner Reinforcement Beam Ultra High Strength Steel Not Serviced

10Rear Outer Door Panel Mild Steel Rear Side Door Outer Panel Replacement

11Front Outer Door Panel Mild Steel Front Side Door Outer Panel Replacement

12Front Door Inner Reinforcement Beam Ultra High Strength Steel Not Serviced

13Center Pillar Reinforcement Ultra High Strength Steel Center Pillar Reinforcement Replacement

14Rocker Inner Panel Ultra High Strength Dual Phase Steel Rocker Inner Panel Reinforcement Replacement

15Front Compartment Lower Rail Dual Phase Steel Underbody Outer Front Side Rail Replacement

16Front Body Hinge Pillar
- High Strength Low Alloy Steel

- Mild Steel

- Front Hinge Pillar Body Sectioning

- Body Hinge Pillar Lower Reinforcement Replacement
