Electrical Diagrams





Remote Function Schematics

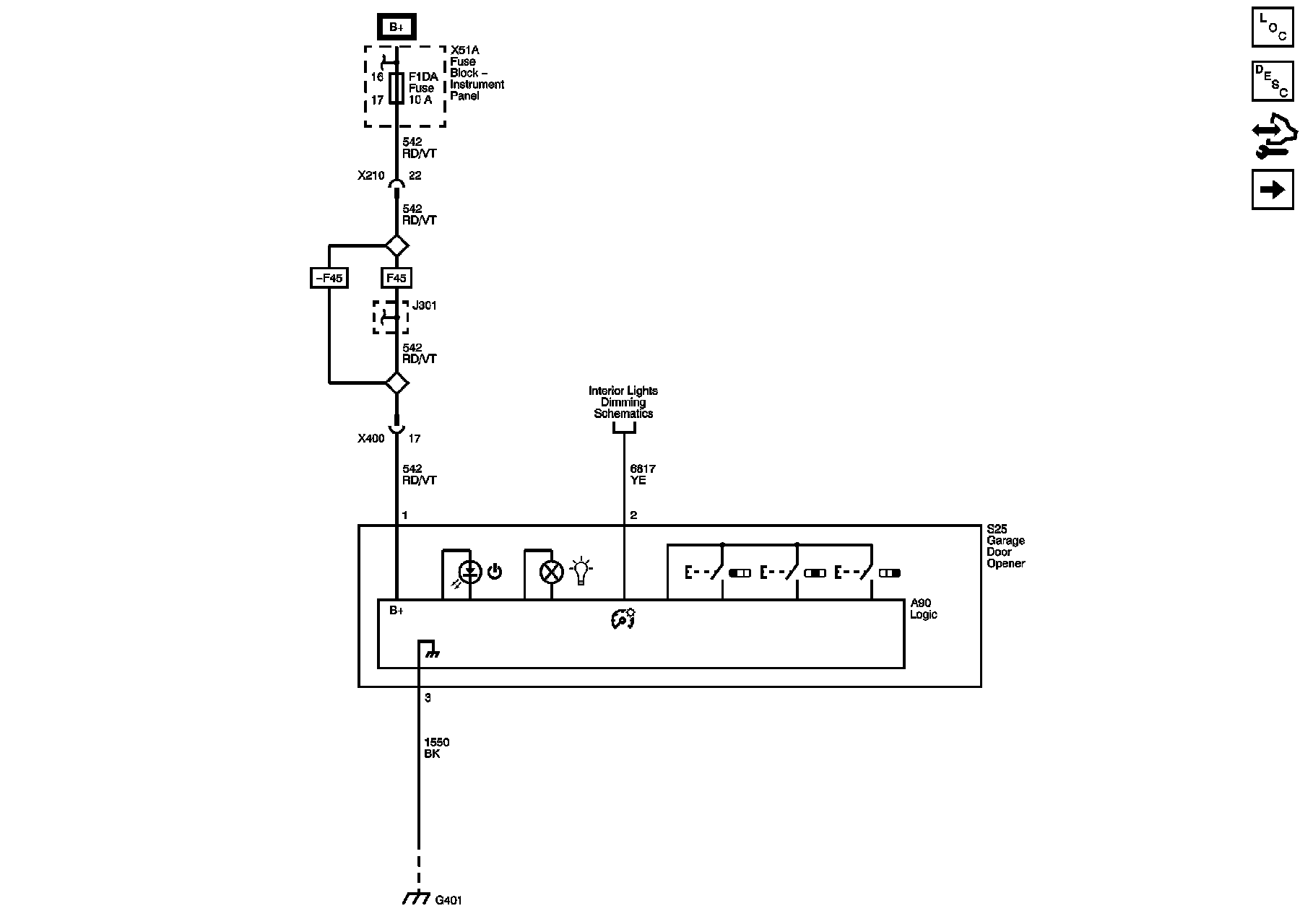

Garage Door Opener (-CZ2)





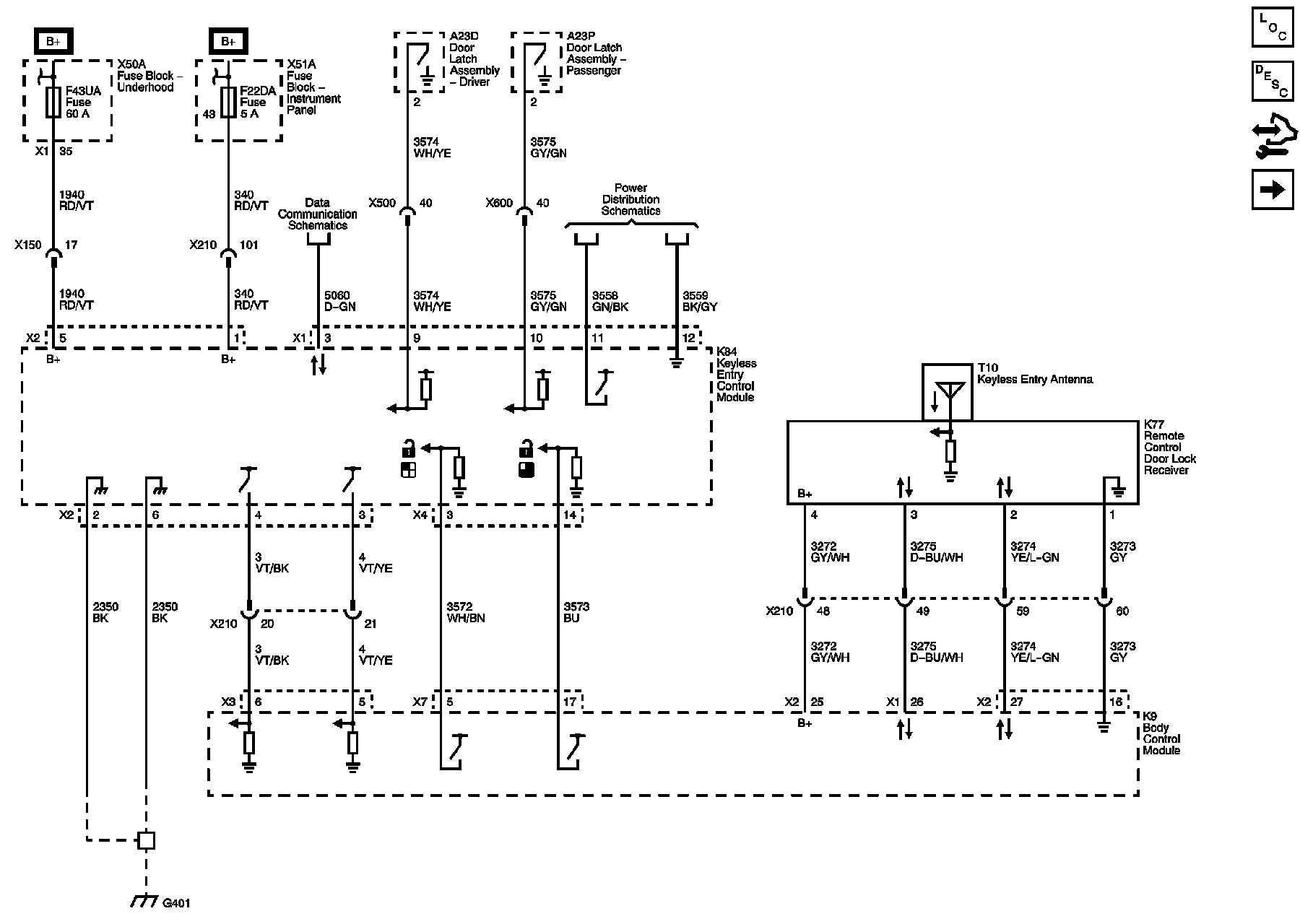

Passive Entry Power, Ground, Data Communication (ATH with BTM), and Remote Keyless Entry

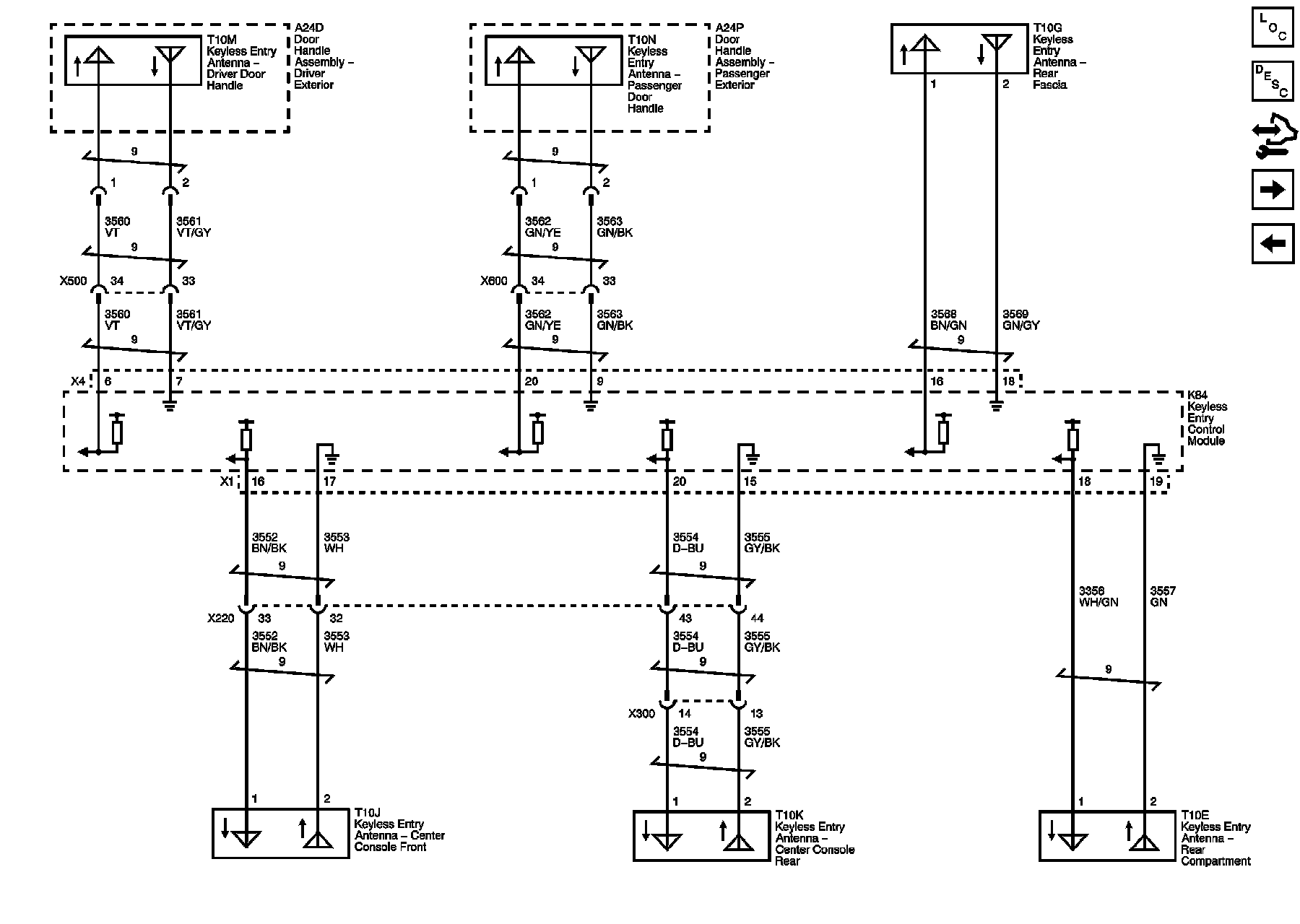

Passive Entry and Passive Start Antennas (ATH with BTM)

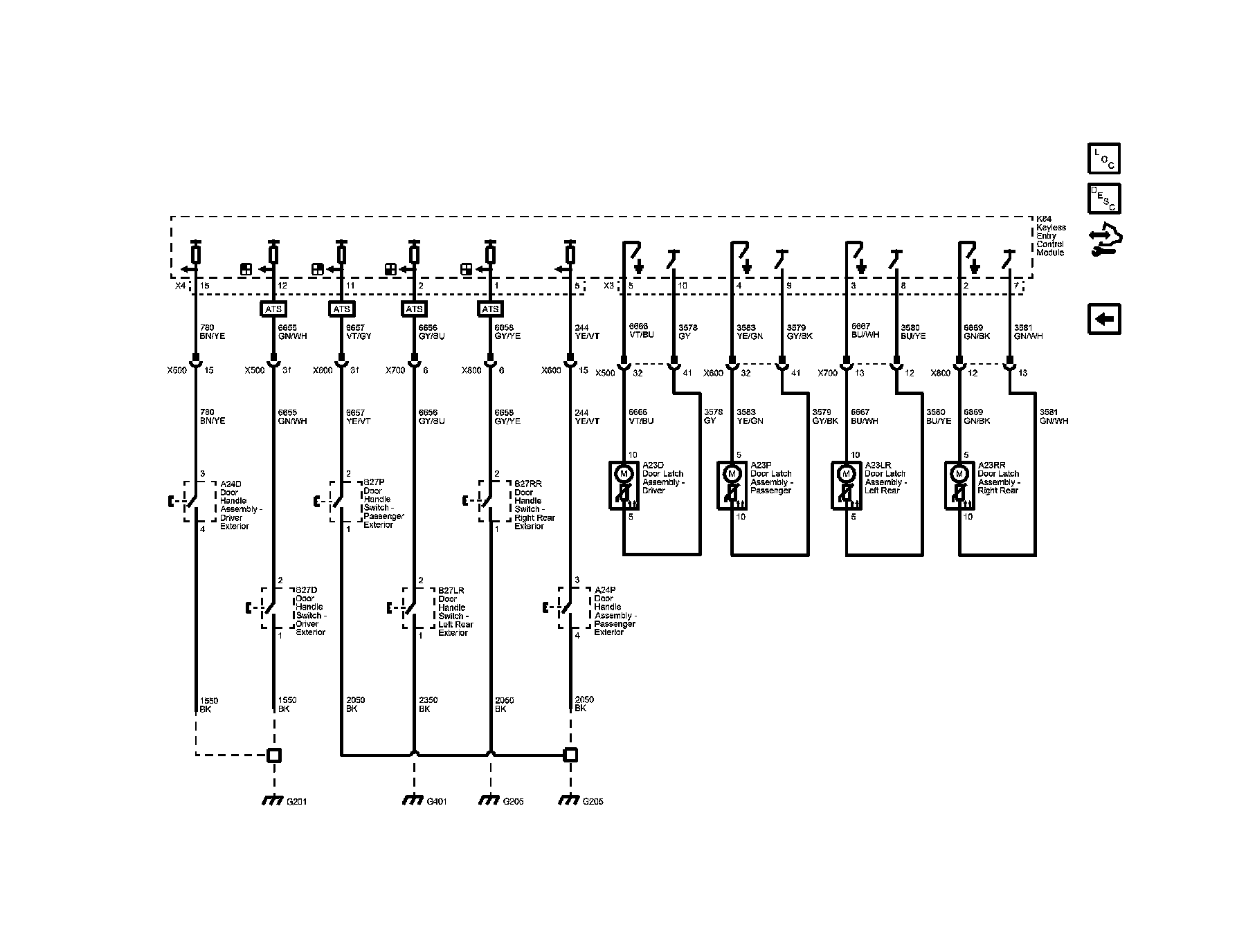

Door Lock Switches and Unlatch Motors (ATS with BTM)(CZ2)

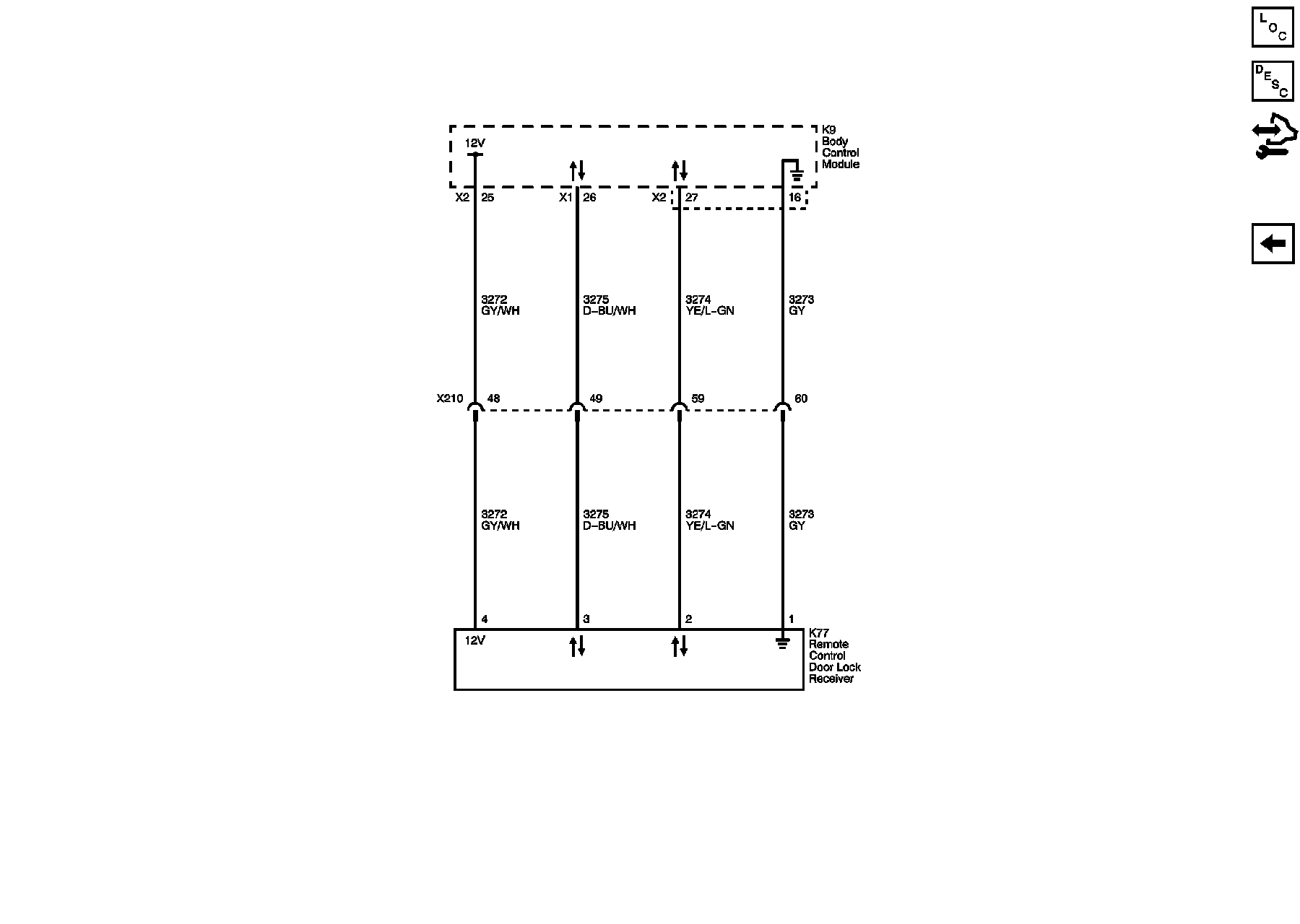

Keyless Entry (-CZ2)
