Home >> Buick >> 2013 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Antenna - Keyless Entry >> Diagrams >> Keyless Entry Antenna - Passenger Door Handle (ATS)

Keyless Entry Antenna - Passenger Door Handle (ATS)

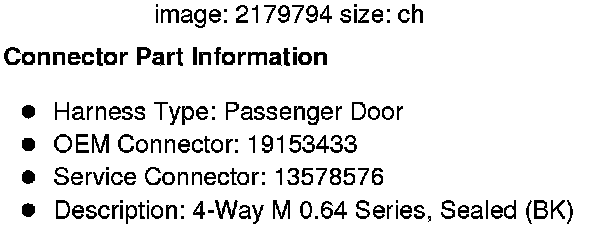

Component Connector End Views

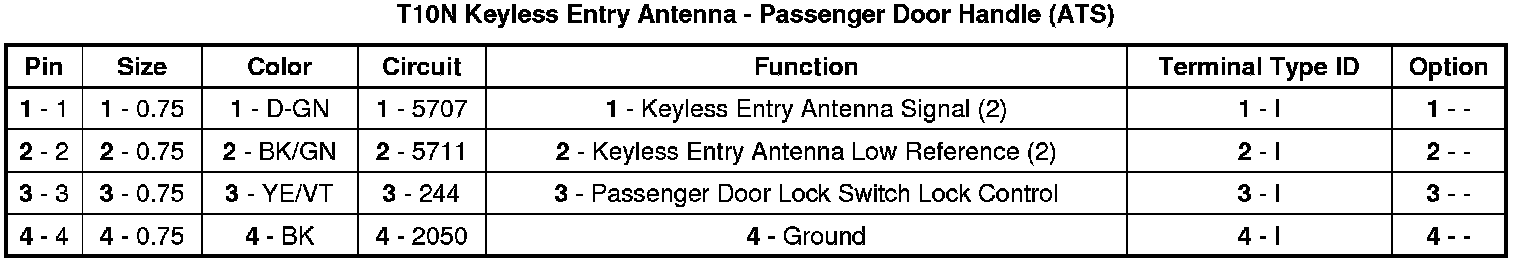

T10N Keyless Entry Antenna - Passenger Door Handle (ATS)
