P0715
DTC P0715
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC P0715
- Input Speed Sensor Circuit

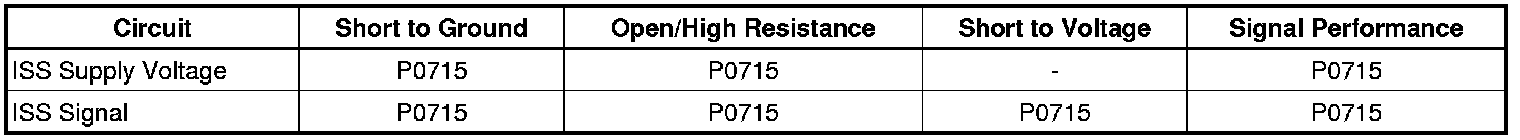

Diagnostic Fault Information

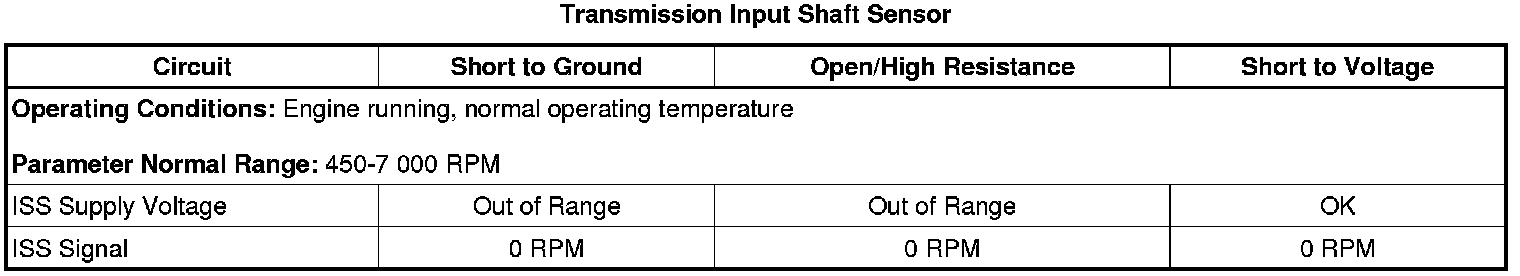

Typical Scan Tool Data
Circuit/System Description
The input shaft speed (ISS) sensor is a hall-effect type sensor. The ISS detects revolutions of the intermediate shaft C2 drum. As the C2 drum rotates, the sensor produces a signal frequency based on the machined surface of the C2 drum. This signal is transmitted to the Transmission Control Module (TCM). The TCM uses the ISS signal in connection with the output speed sensor signal to control engine torque, shift timing, and lock-up.
Conditions for Running the DTC
* The ignition voltage is 10.2-15.5 V.
* The engine speed is greater than 400 RPM for 2 s.
* The transmission is not in emergency mode.
* TCM communication is normal.
Conditions for Setting the DTC
Voltage signal is less than 0.2 V or more than 2.7 V for 100 ms over 10 times.
Action Taken When the DTC Sets
* DTC P0715 is a Type A DTC.
* The TCM freezes transmission adaptive functions.
* The TCM turns OFF all solenoids.
* The TCM allows the vehicle after a stop to operate only in the second gear and reverse (R) range.
Conditions for Clearing the DTC
* DTC P0715 is a Type A DTC.
* Output speed is greater than 300 RPM for more than 70 s.
Diagnostic Aids
Damage or misalignment of the C2 drum machined teeth surface may cause a speed sensor malfunction.
Reference Information
Schematic Reference
Automatic Transmission Controls Schematics AF40-6 (MDK) - Automatic Transmission
Connector End View Reference
Component Connector End Views Sunshade - Left
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Description and Operation
Transmission Component and System Description Transmission Component and System Description
DTC Type Reference
Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Engine idling, observe the scan tool Transmission ISS parameter while varying the engine speed.
2. Verify the Transmission ISS parameter should change with the engine speed and not drop out.
• If the ISS parameter does not change with the engine speed
Refer to Circuit/System Testing
• If the ISS parameter changes with the engine speed
3. Operate the vehicle within the Conditions for Running the DTC. It may be helpful to operate the vehicle within the conditions identified from the Freeze Frame/Failure Records data.
4. Verify the DTC do not set.
• If the DTC is set
Refer to Circuit/System Testing
• If the DTC is not set
5. All OK.
Circuit/System Testing
Note: Circuit/System Verification must be performed before proceeding with Circuit/System Testing.
1. Ignition OFF, and all vehicle systems OFF. Remove the K71 Transmission Control Module to disconnect the X2 harness connector. It may take up to 2 min for all vehicle systems to power down.
2. Test for infinite resistance between ground and the terminals listed below:
* Signal circuit terminal 12 at the X2 harness connector
* Signal circuit terminal 13 at the X2 harness connector
• If less than infinite resistance
1. Test for infinite resistance between the appropriate signal circuit and each terminal at the X2 harness connector.
• If less than infinite resistance, replace the wiring harness.
• If infinite resistance
2. Connect the positive lead of the DMM to the terminal 12 and the negative lead to the terminal 13 at the X2 harness connector.
3. Test for 4.5-5 Mohms.
• If not within 4.5-5 Mohms , replace the T12 Automatic Transmission Assembly
• If infinite resistance
3. Verify the DTC does not set while operating the vehicle under the Conditions for Running the DTC.
• If the DTC is set
Replace the K71 Transmission Control Module.
• If the DTC is not set
4. All OK.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Automatic transmission replacement, refer to Transmission Replacement Transmission Replacement.
* Wiring harness replacement, refer to Automatic Transmission Wiring Harness Replacement Service and Repair.
* Refer to Control Module References Control Module References for TCM replacement, programming and setup.
* Perform the Transmission Adaptive Functions Transmission Adaptive Functions.
