C0870





DTC C0870

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC C0870 03

-
Control Module Voltage Reference Output Circuit Low Voltage

DTC C0870 07

-
Control Module Voltage Reference Output Circuit High Voltage

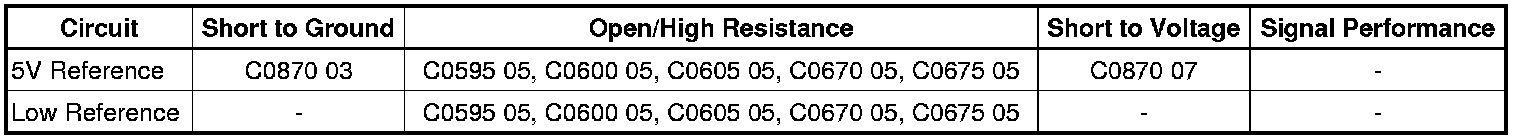

Diagnostic Fault Information






Circuit/System Description

The suspension control module supplies a 5 V reference voltage and a low reference to each body acceleration sensor and vertical suspension acceleration sensor. The body acceleration sensors and vertical suspension acceleration sensors supply a signal of 0.5-4.5 V to the suspension control module.

Conditions for Running the DTC

System voltage is between 9-16 V.

Conditions for Setting the DTC

C0870 03

The suspension control module detected a short to ground on the 5 V reference circuit for 1.5 s.

C0870 07

The suspension control module detected a short to voltage on the 5 V reference circuit for 1.5 s.

Action Taken When the DTC Sets

* The electronic suspension control is disabled for the duration of the ignition cycle.

* The driver information center displays the SERVICE SUSPENSION SYSTEM message.

Conditions for Clearing the DTC

* A present DTC will clear on the next consecutive malfunction-free ignition cycle.

* A history DTC will clear after 41 consecutive malfunction-free ignition cycles.

Reference Information

Schematic Reference

Electronic Suspension Control Schematics Electrical Diagrams

Connector End View Reference

Component Connector End Views Sunshade - Left

Description and Operation

Electronic Suspension Control Description and Operation Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

Ignition ON, observe the scan tool Suspension Position Sensor 5 V Reference parameter. The parameter should be 4.8-5.2 V.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connectors at all 5 vertical body and suspension acceleration sensors.

2. Ignition ON, test for 4.8-5.2 V between any one of the 5 V reference circuits terminal and ground.

If less than the specified range, test all of the 5 V reference circuits for a short to ground. If the circuits test normal, replace the K19 Suspension Control Module.

If greater than the specified range, test all of the 5 V reference circuits for a short to voltage. If the circuits test normal, replace the K19 Suspension Control Module.

3. Test for 4.8-5.2 V between all 5 vertical body and suspension acceleration sensor signal circuits terminals and ground.

If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K19 Suspension Control Module.

If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the K19 Suspension Control Module.

4. Reconnect each acceleration sensor, one at a time, cycling the ignition OFF and then ON between each connection while observing the scan tool Suspension Position Sensor 5 V Reference parameter. Verify the parameter is between 4.8-5.2 V.

If not within the specified range when a particular acceleration sensor is connected, replace that sensor.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Electronic Suspension Body Front Vertical Accelerometer Replacement - Upper Electronic Suspension Body Front Vertical Accelerometer Replacement - Upper

* Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Lower Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Lower

* Electronic Suspension Rear Position Sensor Replacement Service and Repair

* Control Module References Control Module References for suspension control module replacement, programming, and setup
