C0010

DTC C0010

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC C0010 5A
- Reverse Gear Signal Circuit Not Plausible

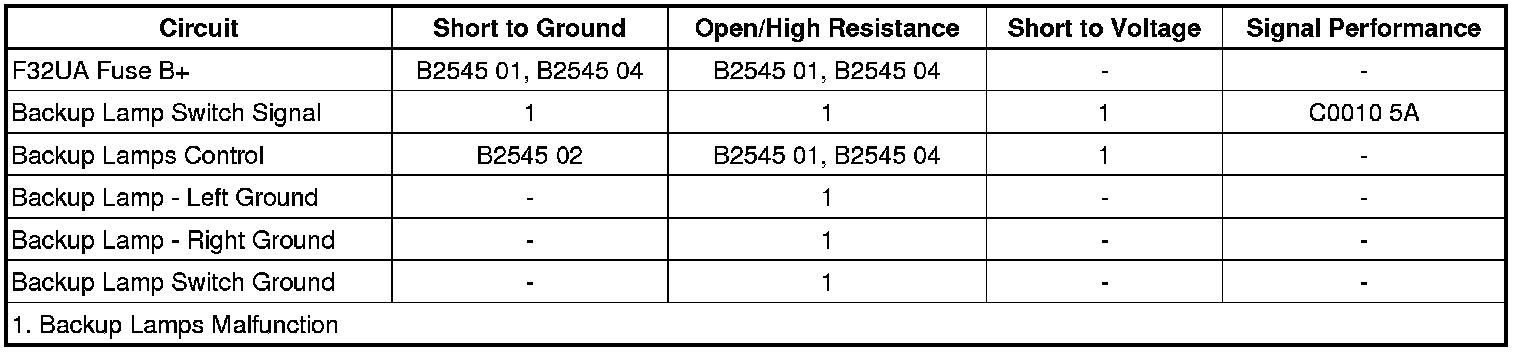

Diagnostic Fault Information






Circuit/System Description

The engine control module (ECM) provides a signal circuit to the backup lamp switch which is permanently grounded. With the engine running and the transmission in the reverse position, the backup lamp switch signal circuit is pulled low and the ECM responds by sending a serial data message to the body control module (BCM). The message indicates that the gear selector is in the reverse position. The BCM applies battery voltage to the backup lamps control circuit illuminating the backup lamps. Once the driver moves the gear selector out of the reverse position, a message is sent by the ECM via serial data requesting the BCM to remove battery voltage from the backup lamps control circuit. The engine must be running for the backup lamps to operate.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.

* Engine ON.

Conditions for Setting the DTC

The ECM detects a stuck backup lamp switch.

Conditions for Clearing the DTC

* The condition for setting the DTC is no longer present.

* A history DTC will clear once 50 malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics

Connector End View Reference

Component Connector End Views Sunshade - Left

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

Backup Lamp Switch Malfunction

1. Ignition OFF, exterior lamps OFF, all doors closed, disconnect the harness connector at the B16 backup lamp switch. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 5 ohms between the ground circuit terminal 2 and ground.

• If 5 ohms or greater

1. Ignition OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 5 ohms

3. Ignition ON.

4. Verify the scan tool Reverse Position Switch parameter is Off.

• If not Off

1. Ignition OFF, disconnect the X2 harness connector at the K20 engine control module.

2. Test for infinite resistance between the signal circuit terminal 1 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance, replace the K20 engine control module.

• If Off

5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and the ground circuit terminal 2.

6. Verify the scan tool Reverse Position Switch parameter is On.

• If not On

1. Ignition OFF, disconnect the X2 harness connector at the K20 engine control module, ignition ON.

2. Test for less than 1 V between the signal circuit terminal 1 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K20 engine control module.

• If On

7. Test or replace the B16 backup lamp switch.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Backup Lamp Switch Replacement Service and Repair

* Control Module References Control Module References for BCM replacement, programming, and setup
