Front Diff. Drive Pinion Gear Bearing Thrust Washer and Front Diff. Bearing Washer Measurement




Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

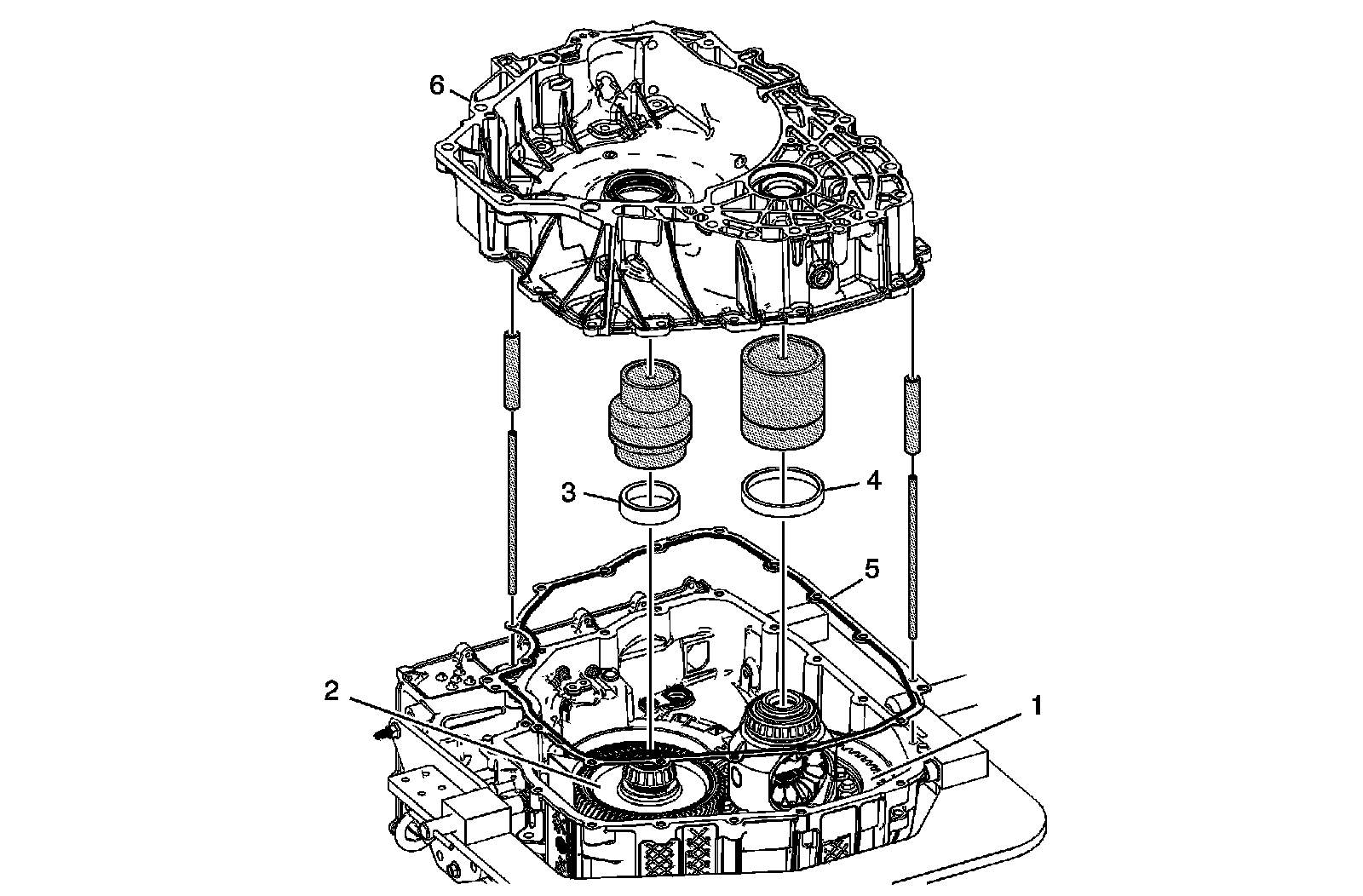

Differential Thrust Washer Gauge Installation

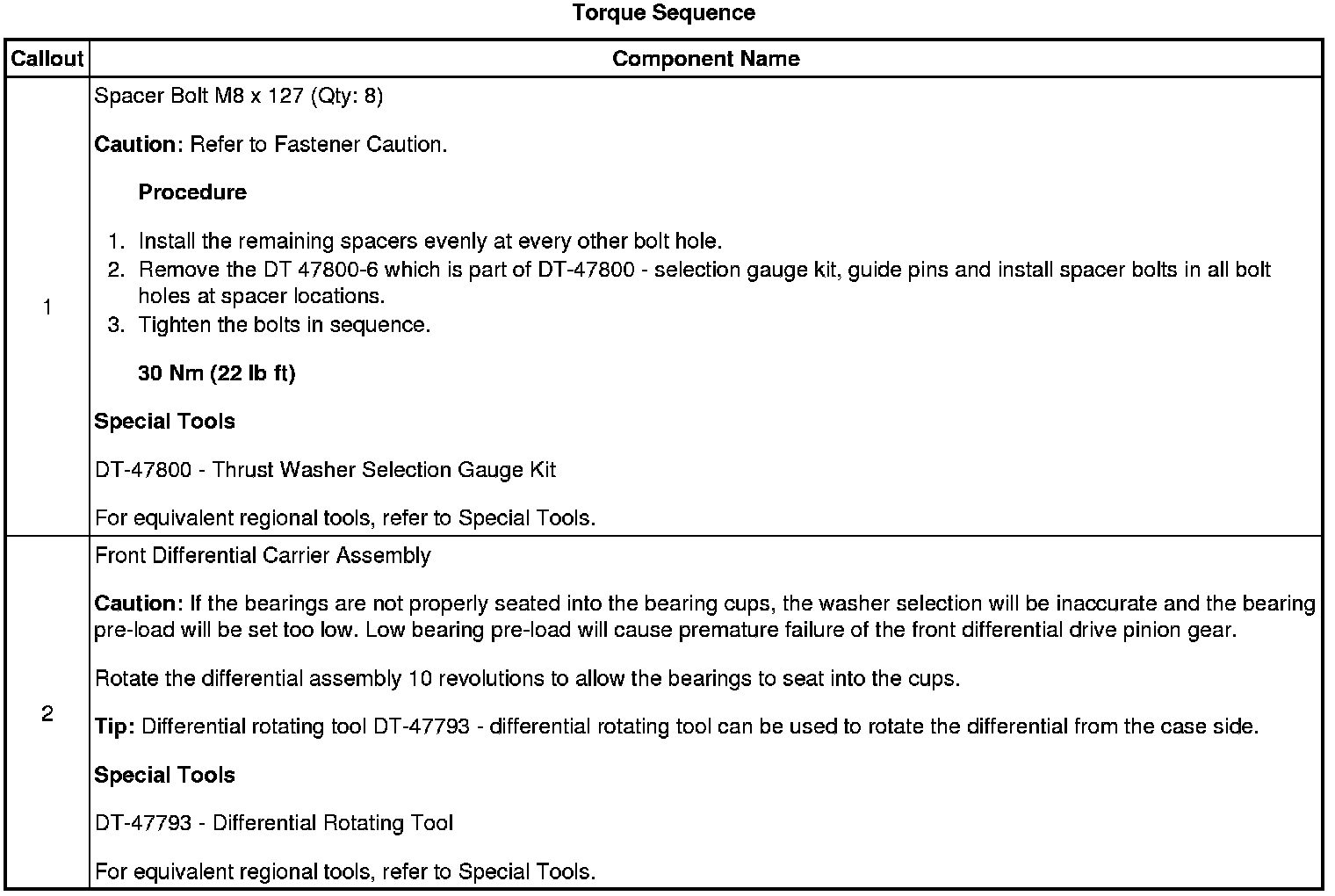

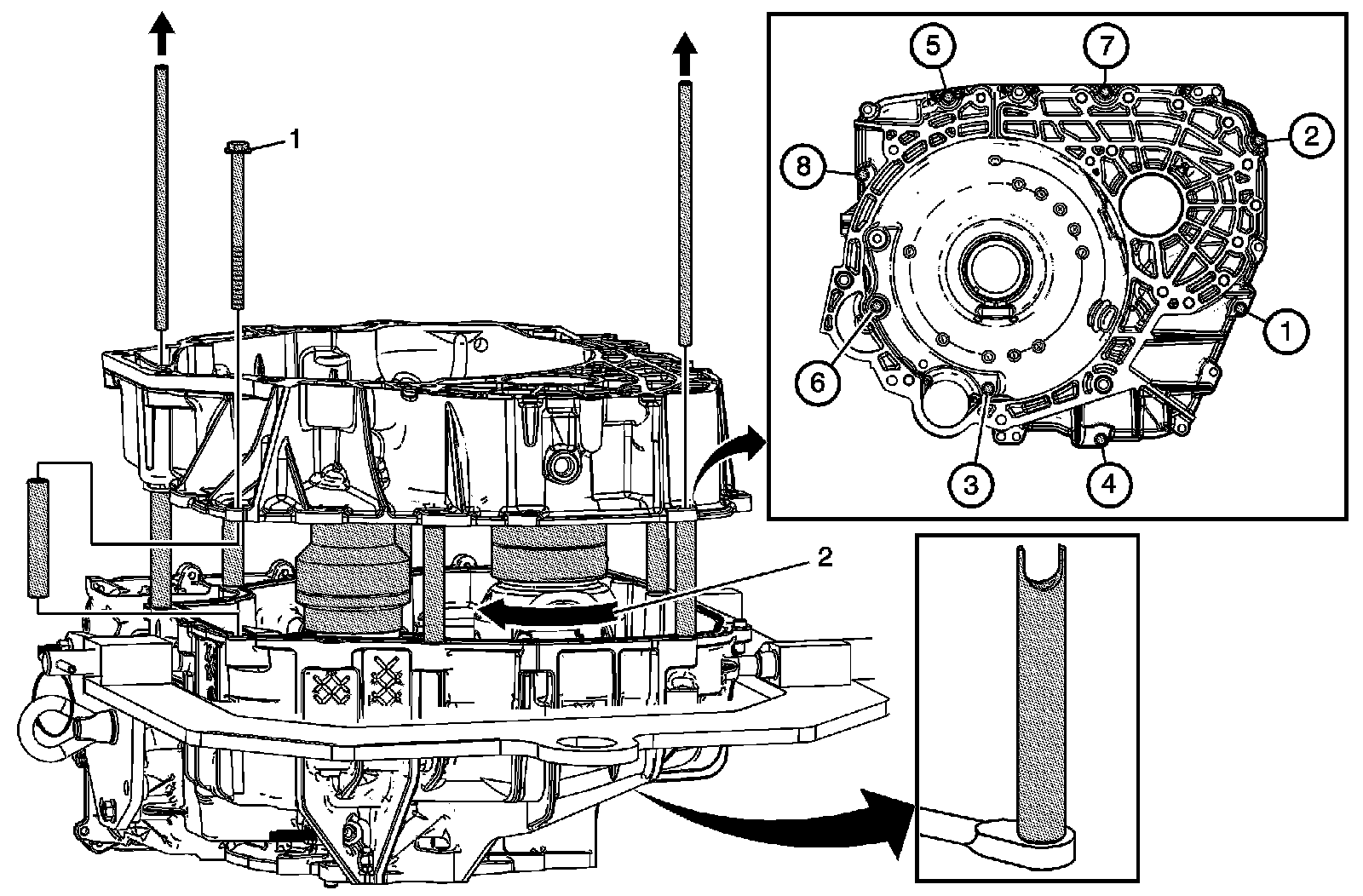

Torque Sequence

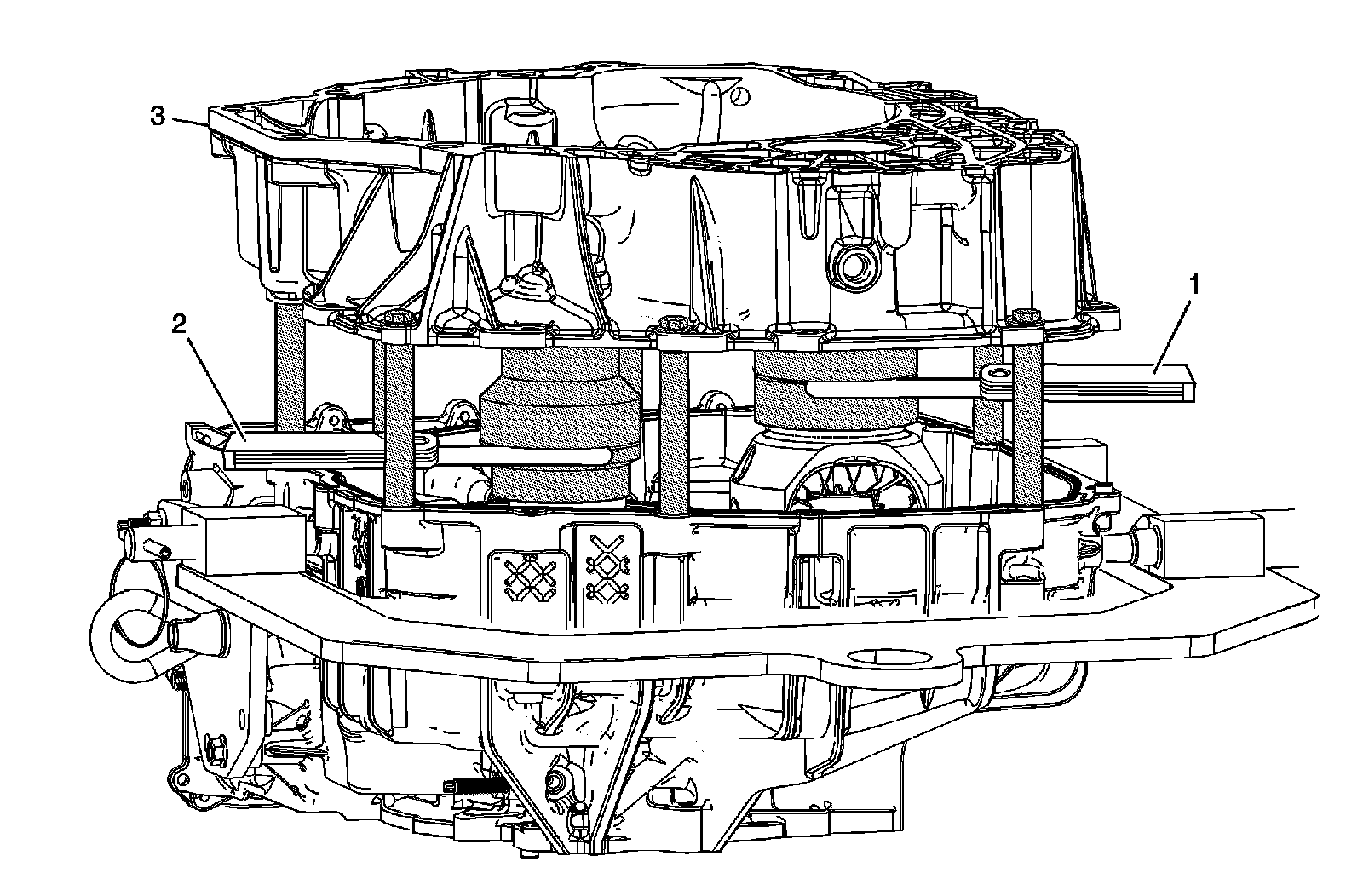

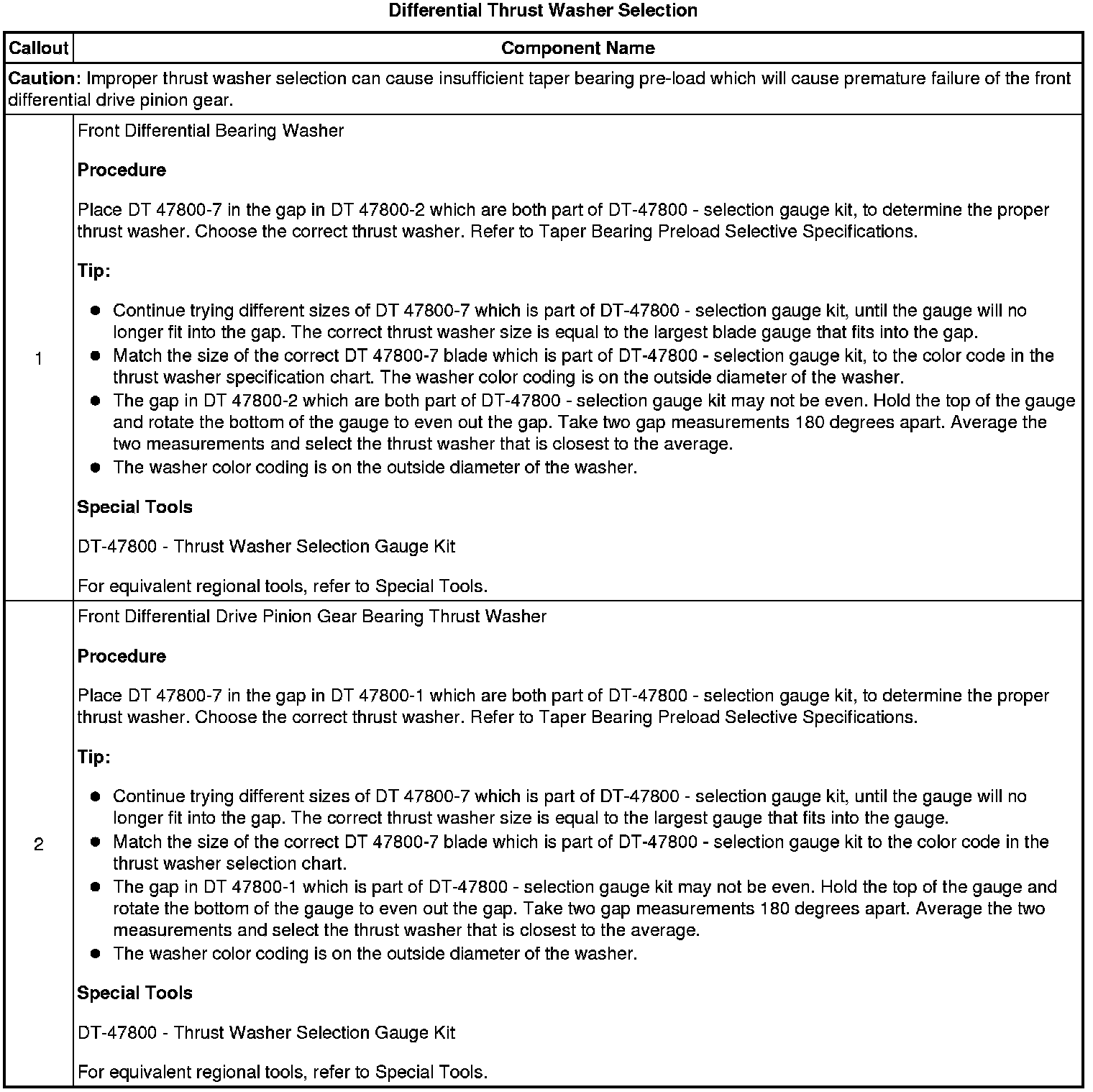

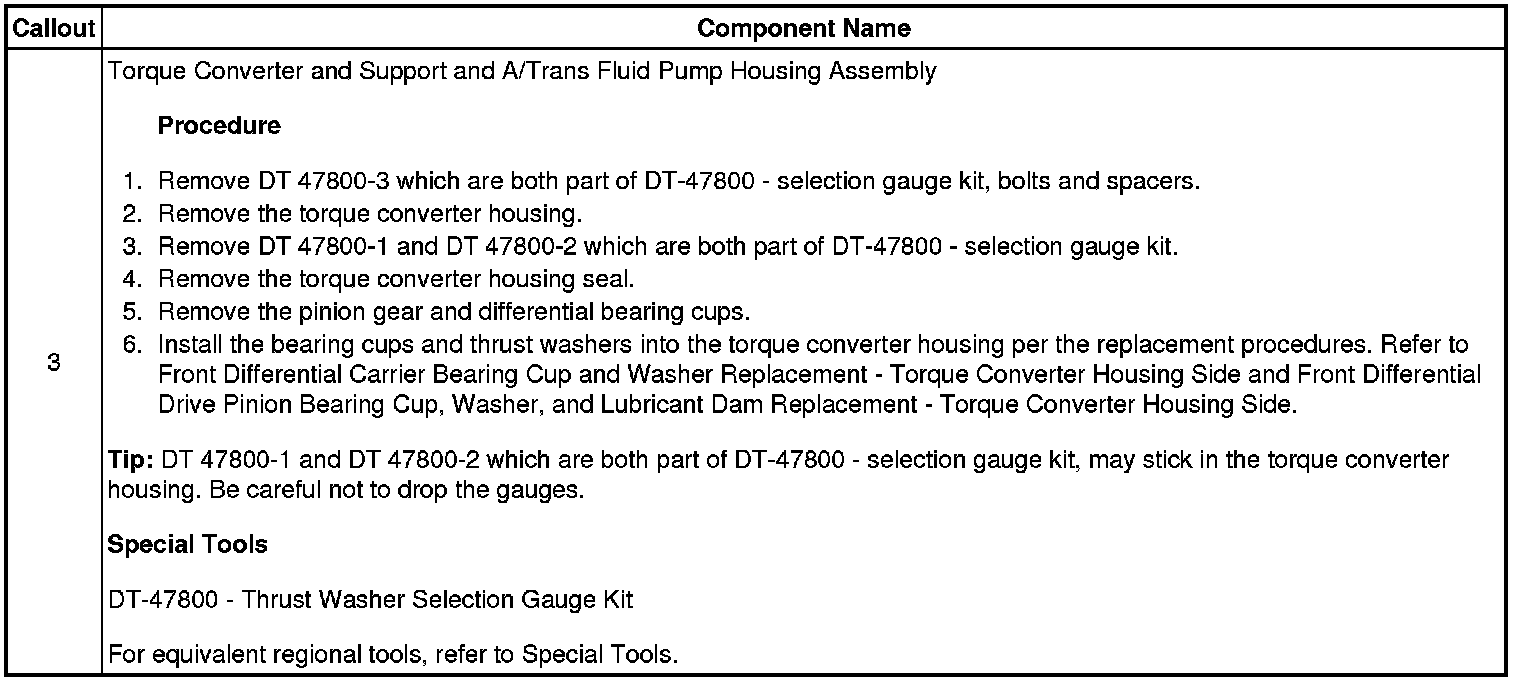

Differential Thrust Washer Selection
