Engine Compartment Fuse Block

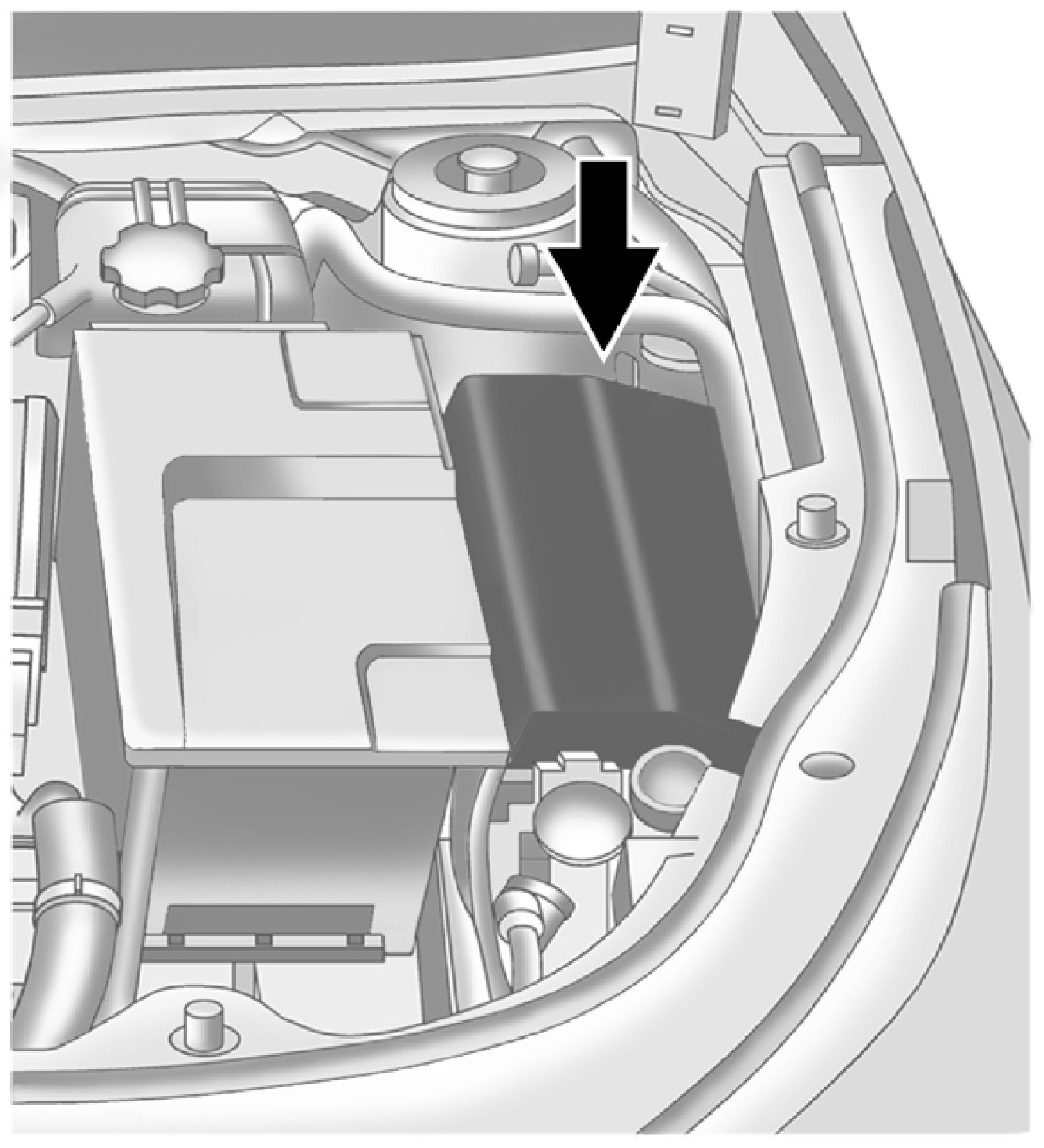

To remove the fuse block cover, squeeze the three retaining clips on the cover and lift it straight up.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.






The vehicle may not be equipped with all of the fuses, relays, and features shown.

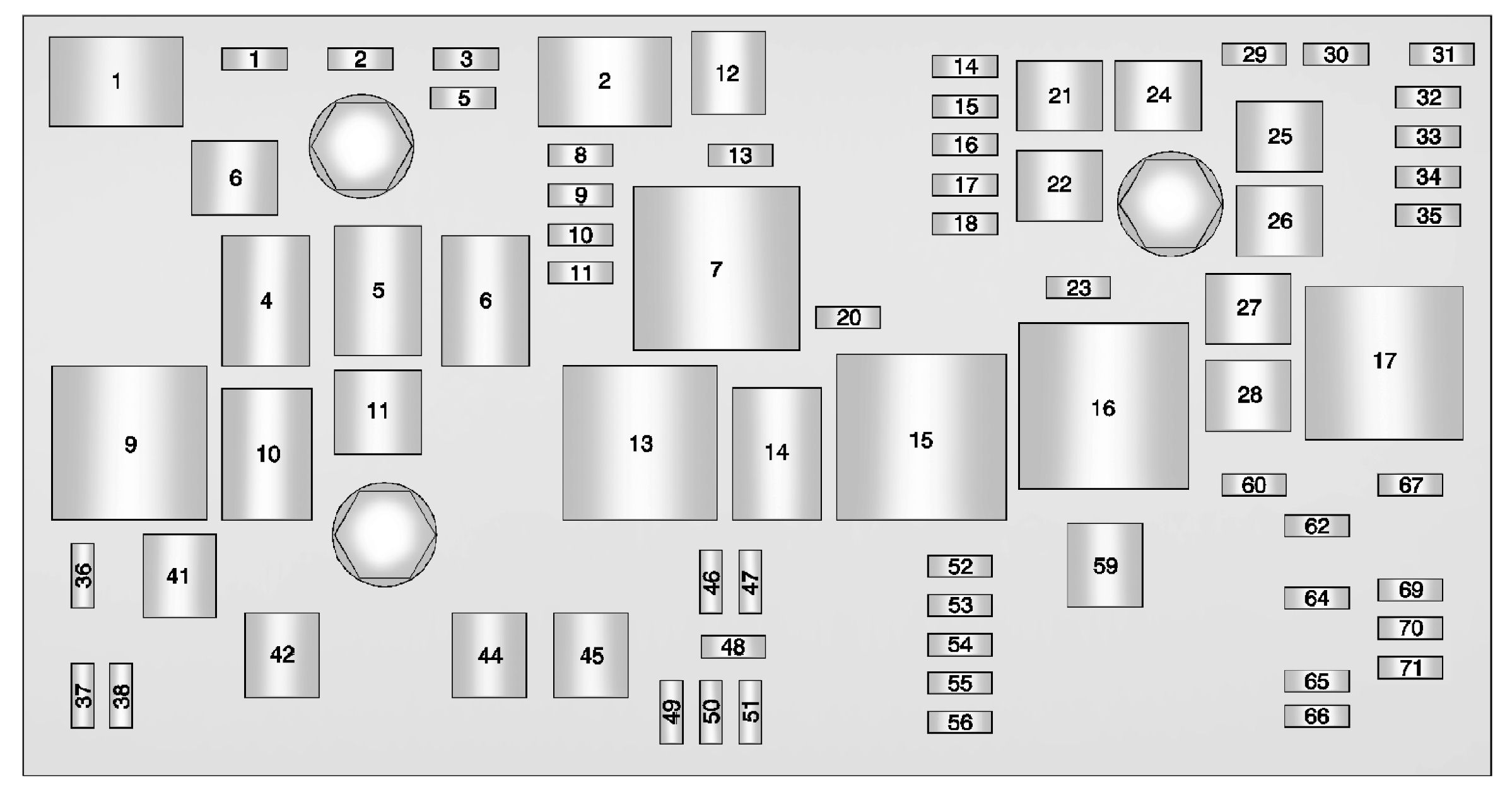

J-Case Fuses Usage
6 Wiper
12 Starter
21 Rear Power Windows
22 Sunroof
24 Front Power Windows
25 Rear Heated Seats
26 Antilock Brake System Pump
27 Electric Park Brake
28 Rear Window Defogger
41 Brake Vacuum Pump
42 Cooling Fan K2
43 Not Used
44 Transmission Auxiliary Oil Pump (eAssist)
45 Cooling Fan K1
59 AIR Pump

Mini Fuses Usage
1 Transmission Control Module � Battery
2 Engine Control Module Battery
3 Air Conditioning Compressor Clutch
5 Engine Control Module Run/Crank
8 Ignition Coils � Even (Six Cylinder Engine), Ignition Coils � All (Four Cylinder Engine)
9 Ignition Coils � Odd (Six Cylinder Engine)
10 Engine Control Module � Switched Battery (from Engine Control Module Relay)
11 Six Cylinder Engine: Post Catalytic Converter Oxygen Sensor Heater, Mass Air Flow Sensor, Flex Fuel Sensor, Secondary Air Induction Solenoid
13 Run/Crank for Transmission Control Module and Fuel System Control Module/Chassis Control Module (eAssist)
14 Cabin Heater Coolant Pump (eAssist)
15 Motor Generator Unit Coolant Pump (eAssist)
16 Run/Crank for eAssist Power Inverter Module
17 Airbag Module � Run/Crank
18 Sunshade Module, Vehicle Air Purification System, Vented Seats
20 Heated Steering Wheel (non eAssist)
23 Variable Effort Steering (if equipped) or eAssist Power Inverter Module
29 Power Lumbar, Left
30 Power Lumbar, Right or Power Pack Cooling Fan (eAssist)
31 All Wheel Drive, Electronic Suspension Control
32 Body Control Module 6
33 Heated Seat � Front
34 Antilock Brake System Valves
35 Amplifier
36 Adaptive Forward Lighting (AFL) Motors � Battery
37 Right High Beam
38 Left High Beam
46 Cooling Fan Relay
47 Six Cylinder Engine: Pre Catalytic Converter Oxygen Sensor Heater, Canister Purge Solenoid. Four Cylinder Engine: Pre and Post Catalytic Converter Oxygen Sensor Heaters, Canister Purge Solenoid
48 Fog Lamps
49 Right High Intensity Discharge Headlamp
50 Left High Intensity Discharge Headlamp
51 Horn
52 Cluster Run/Crank
53 Run/Crank for Inside Rearview Mirror, Rear Vision Camera, Air Quality Sensor, Aero Shutter Motor
54 Run/Crank for: Heating, Ventilation and Air Conditioning, Headlamp Switch
55 Outside Rearview Mirror, Universal Garage Door Opener, Front Window Switches
56 Windshield Washer
60 Heated Mirror
62 Canister Vent
64 Adaptive Forward Lighting (AFL) Module � Battery
65 Not Used
66 AIR Solenoid (eAssist)
67 Fuel System Control Module
69 Regulated Voltage Control Sensor
70 Ultrasonic Parking Assist/Side Blind Zone/Lane Departure Warning/Rain Sensor
71 Passive Entry/Passive Start

Mini Relays Usage
7 Engine Control Module
9 Cooling Fan
13 Cooling Fan
15 Run/Crank
16 AIR Pump
17 Rear Window Defogger

Micro Relays Usage
1 Air Conditioning Compressor Clutch
2 Starter
4 Wiper Speed
5 Wiper Control
6 Cabin Heater Coolant Pump (eAssist)
10 Cooling Fan
14 Headlamp Low Beam

Ultra Micro Relays Usage
11 Transmission Auxiliary Oil Pump (eAssist)
