Ignition Switch: Locations

Instrument Panel/Center Console Component Views

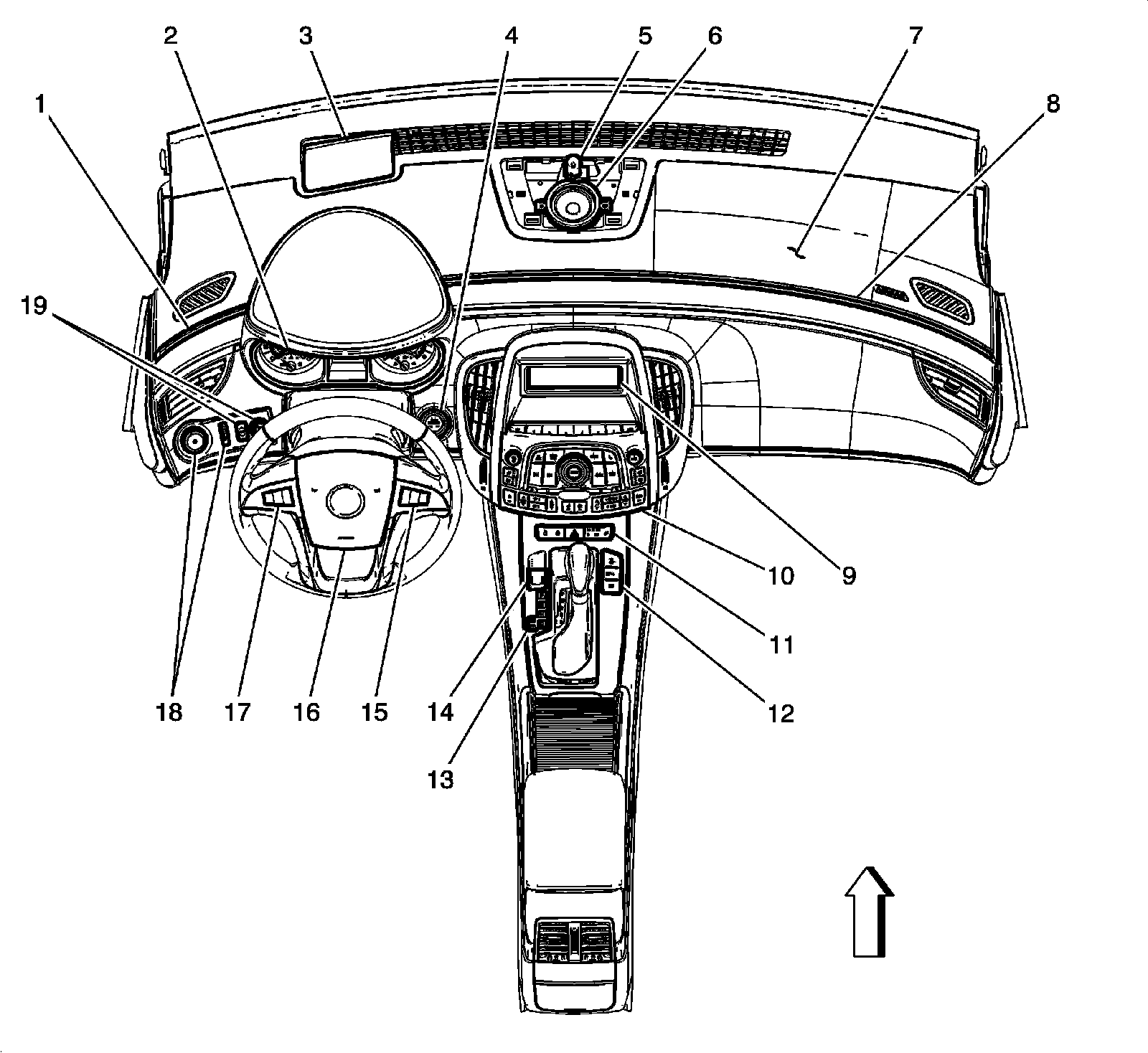

Instrument Panel and Floor Console Components





1 - E1G Accent Lamp - Left Instrument Panel

2 - P16 Instrument Cluster

3 - P29 Head-Up Display (UV6)

4 - S38 Ignition Mode Switch (BTM) or S39 Ignition Switch (without BTM)

5 - B10B Ambient Light/Sunload Sensor

6 - P19B Speaker - Center Instrument Panel

7 - F101 Passenger Instrument Panel Air Bag

8 - E1H Accent Lamp - Right Instrument Panel

9 - P17 Info Display Module

10 - A20 Radio/HVAC Controls

11 - S48C Multifunction Switch 1 - Instrument Panel

12 - S48D Multifunction Switch 2 - Instrument Panel

13 - P2 Transmission Shift Lever Position Indicator

14 - S91 Park Brake Control Switch

15 - S70R Steering Wheel Controls Switch - Right

16 - F107 Steering Wheel Air Bag

17 - S70L Steering Wheel Controls Switch - Left

18 - S30 Headlamp Switch

19 - S27 Head-Up Display Switch (UV6)
