Trunk / Liftgate Switch: Locations

Luggage Compartment/Rear of Vehicle Component Views

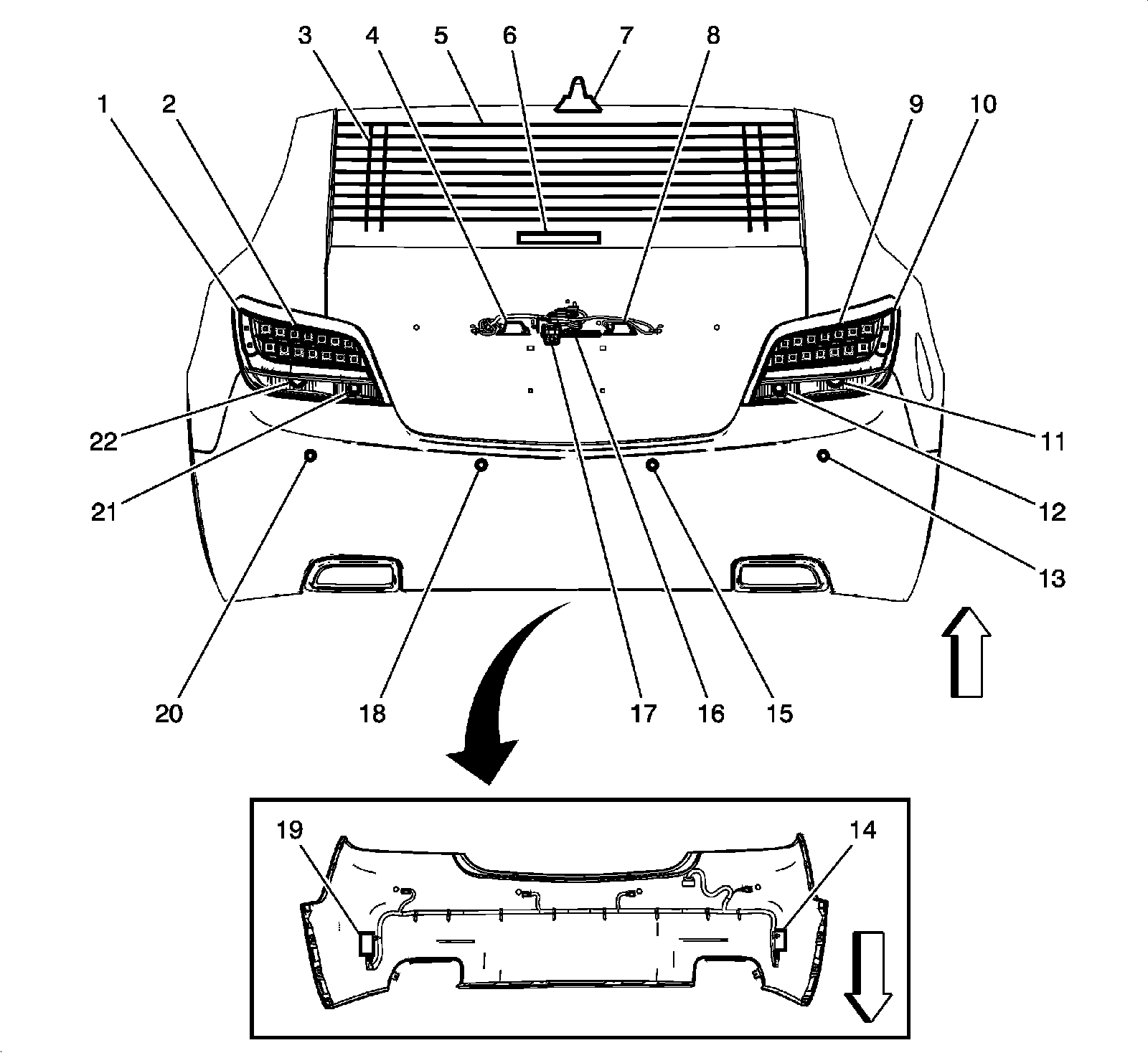

Rear of Vehicle Components





1 - E2LR Side Marker Lamp - Left Rear

2 - E5AA Tail/Stop Lamp - Left

3 - E18 Rear Defogger Grid

4 - E7L License Plate Lamp - Left

5 - T4M Radio Antenna

6 - E6 Center High Mounted Stop Lamp

7 - T4G Cellular Phone, Navigation, and Digital Radio Antenna (U2K), or T4P Navigation Antenna (without U2K)

8 - E7R License Plate Lamp - Right

9 - E5AB Tail/Stop Lamp - Right

10 - E2RR Side Marker Lamp - Right Rear

11 - E4RR Turn Signal Lamp - Right Rear

12 - E5B Backup Lamp - Right

13 - B78H Rear Object Sensor - Right Outer (UD7)

14 - B94L Side Object Sensor - Left (UFT)

15 - B78F Rear Object Sensor - Right Middle (UD7)

16 - S58A Rear Compartment Lid Unlatch Switch - Exterior

17 - B87 Rearview Camera (UVC)

18 - B78E Rear Object Sensor - Left Middle (UD7)

19 - B94R Side Object Sensor - Right (UFT)

20 - B78G Rear Object Sensor - Left Outer (UD7)

21 - E5A Backup Lamp - Left

22 - E4LR Turn Signal Lamp - Left Rear
