Seat Lumbar Support Switch - Driver (APG)

Passenger Compartment/Roof Component Views

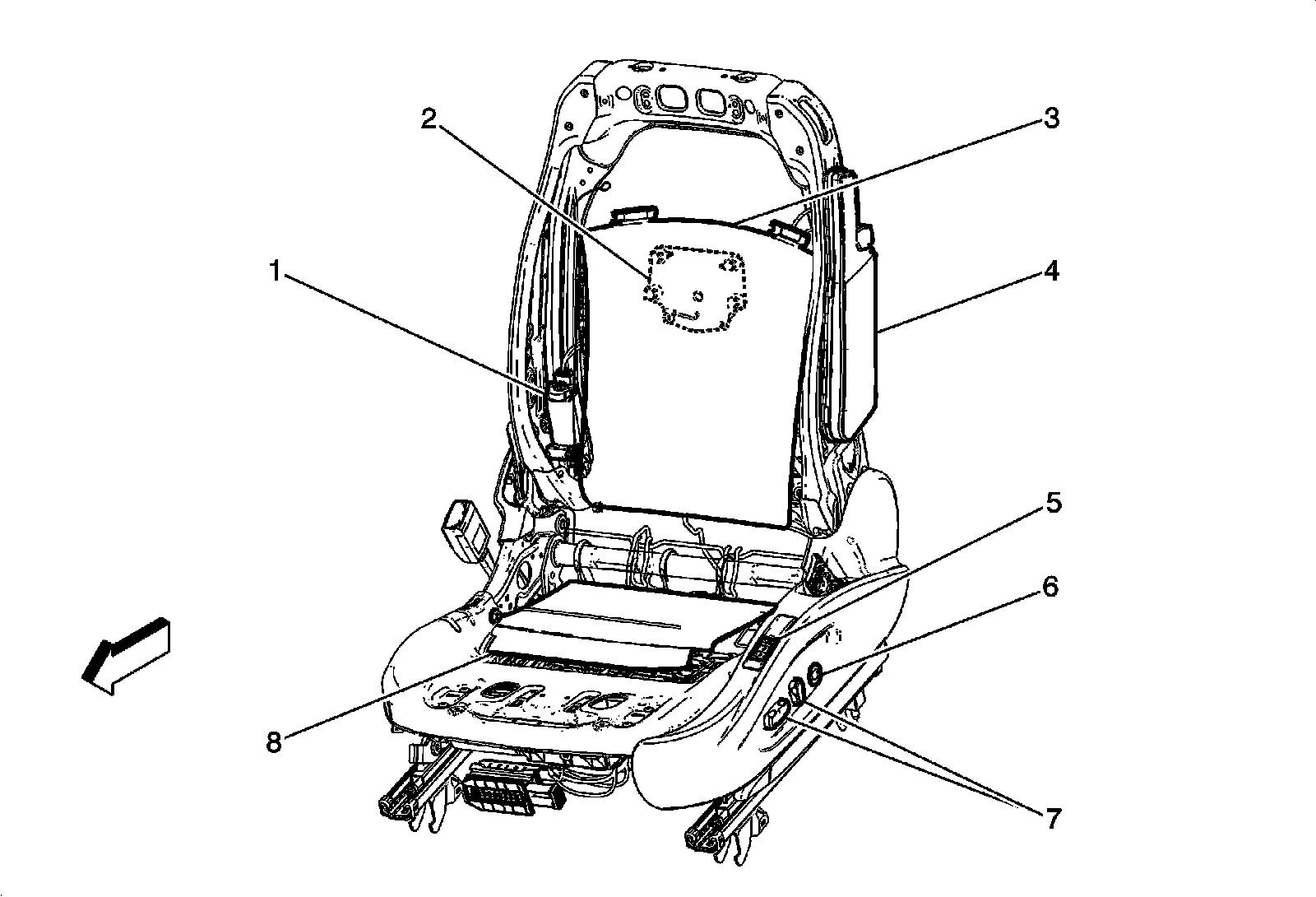

Left Front Seat Components - Upper





1 - M56D Seat Recline Motor - Driver

2 - M73A Seat Blower Motor - Driver Back (KU1)

3 - E14A Seat Heating Element - Driver Back (KA1)

4 - F106LF Seat Air Bag - Left Front

5 - S47D Seat Memory Switch - Driver (A45)

6 - S65D Seat Lumbar Support Switch - Driver (APG)

7 - S64D Seat Adjuster Switch - Driver

8 - E14B Seat Heating Element - Driver Cushion (KA1)
