Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

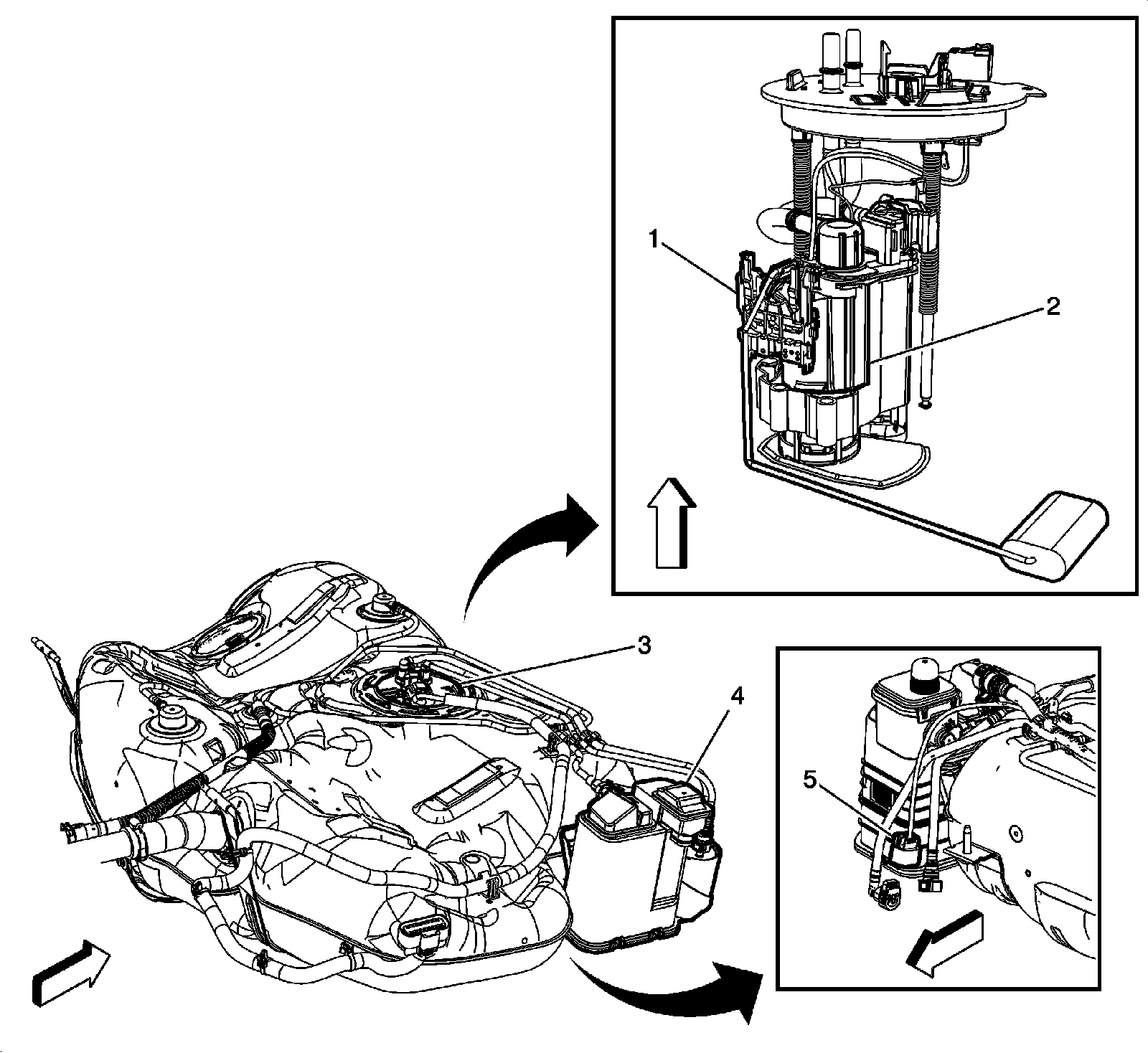

Fuel Tank Components





1 - B46B Fuel Level Sensor - Secondary (F46)

2 - G12 Fuel Pump

3 - A7 Fuel Pump and Level Sensor Assembly

4 - Q13 Evaporative Emission Vent Solenoid Valve

5 - B47 Fuel Pressure Sensor
